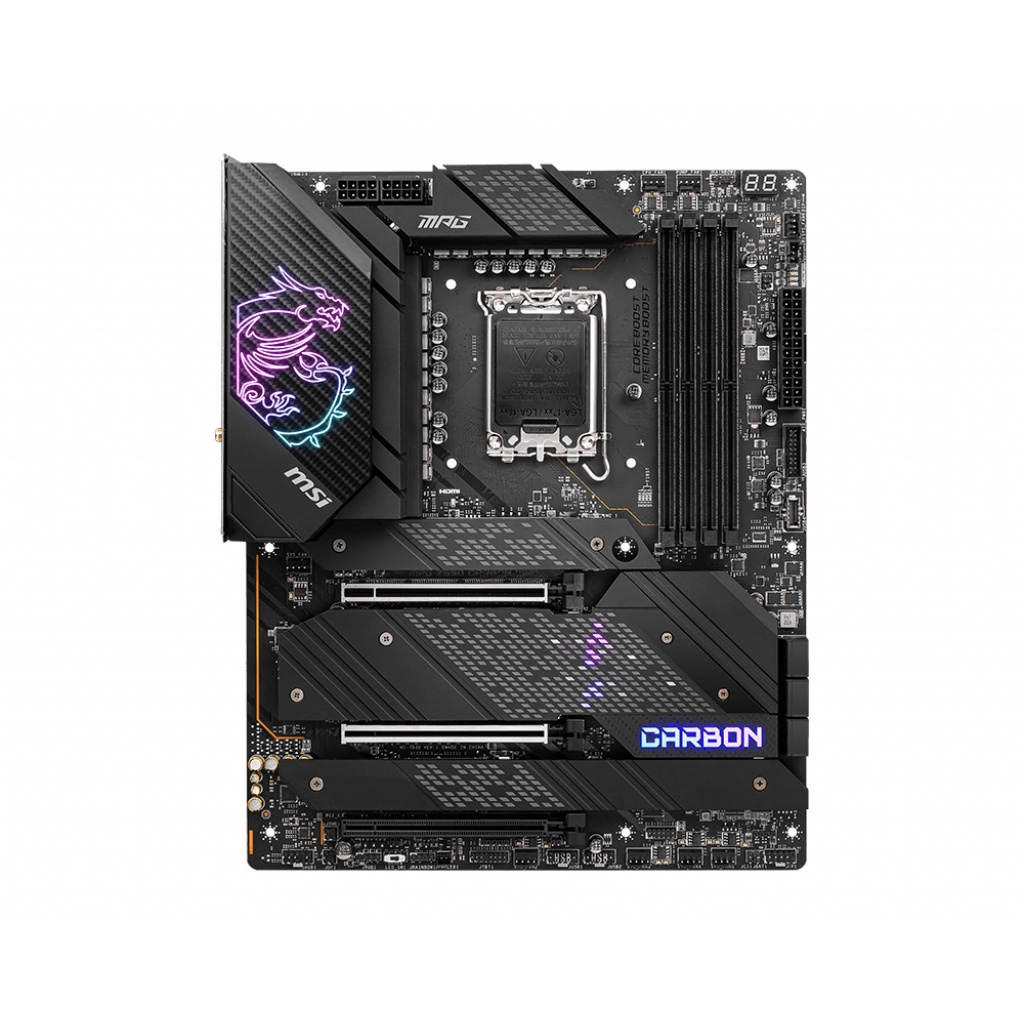

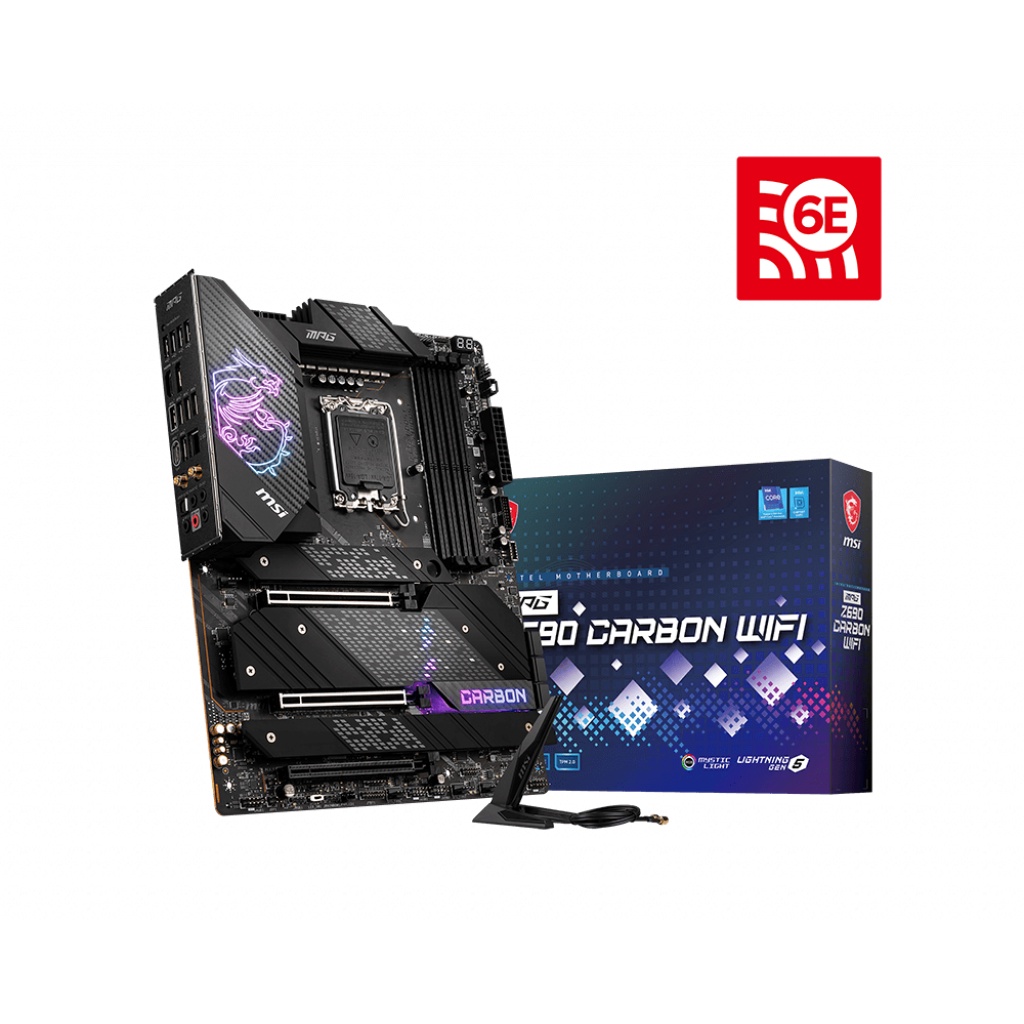

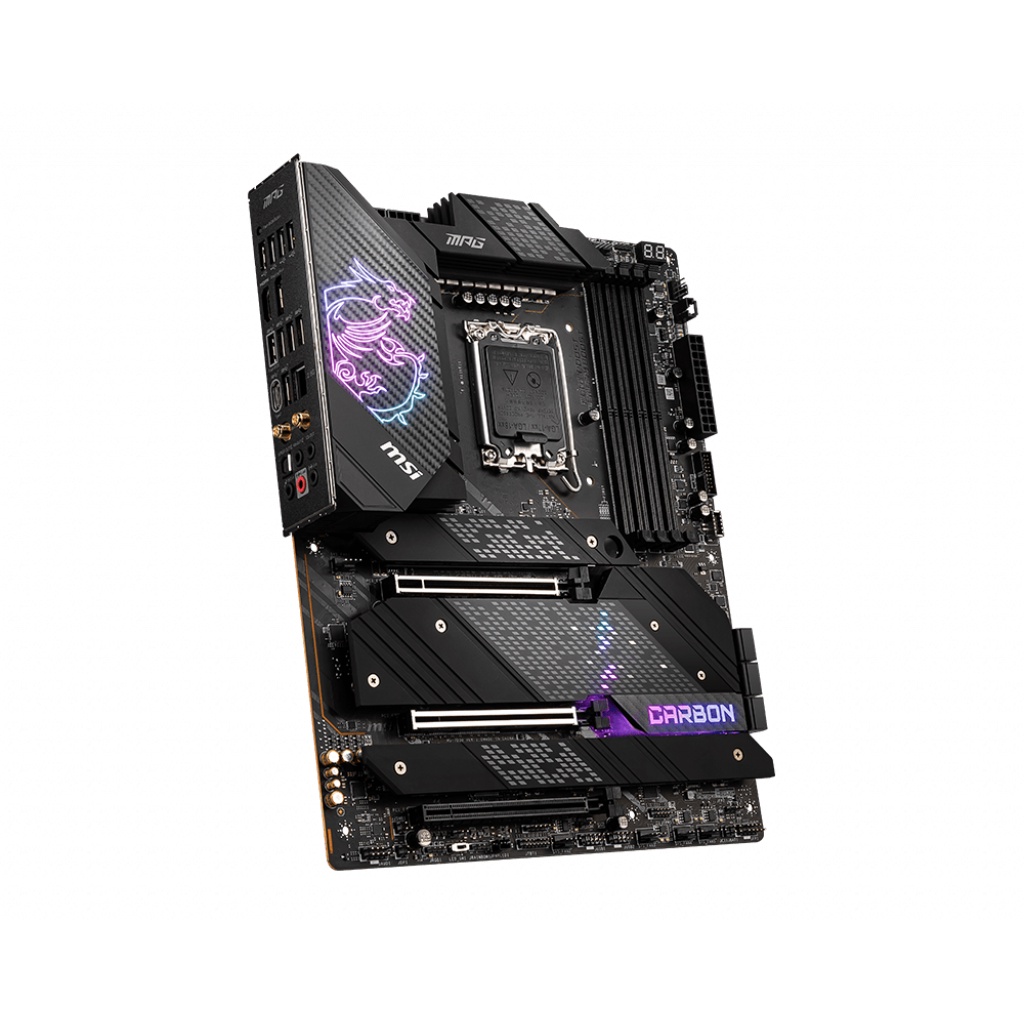

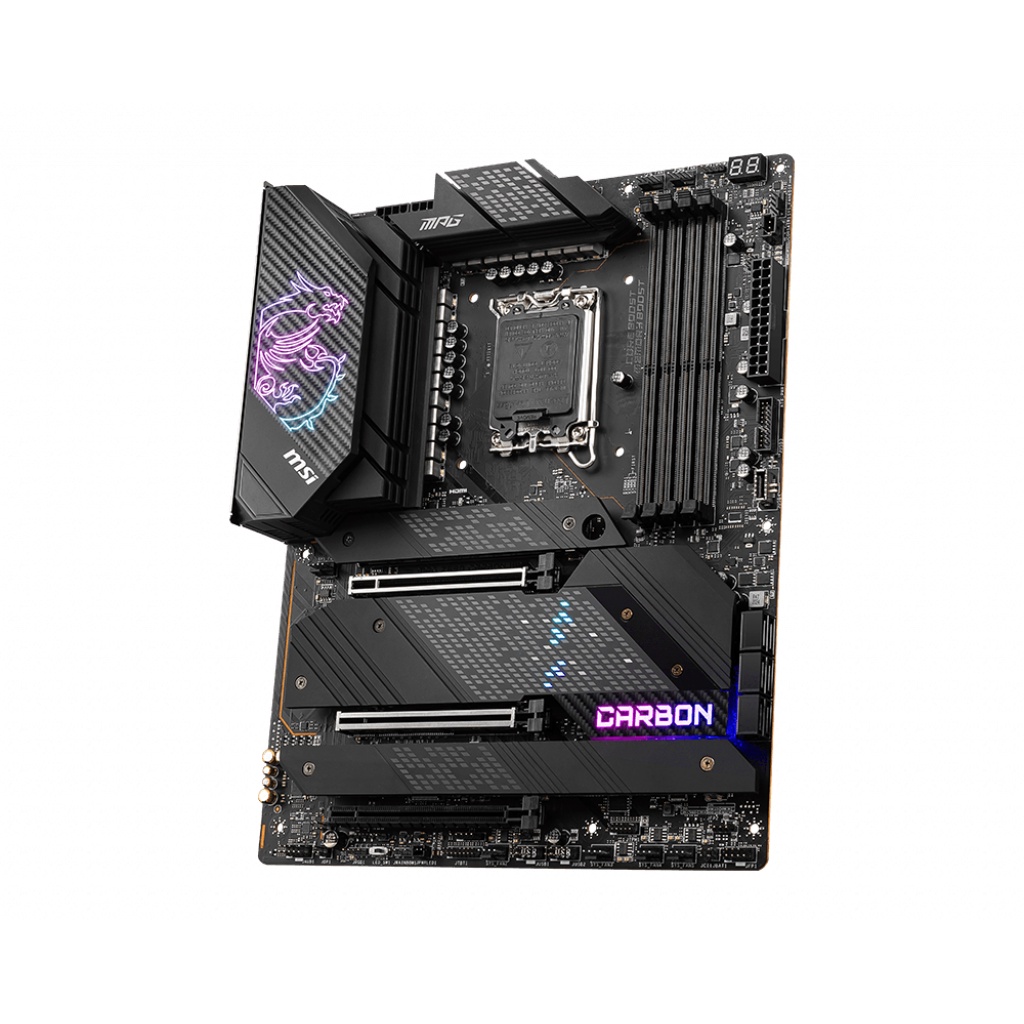

Detail MSI MOTHERBOARD MPG Z690 CARBON WIFI Intel Z690 LGA 1700 ATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
SPEK:
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel® Z690 Chipset
DDR5 MEMORY
6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
3
SATAIII
6
M.2 SLOT
5
RAID
0/1/5/10

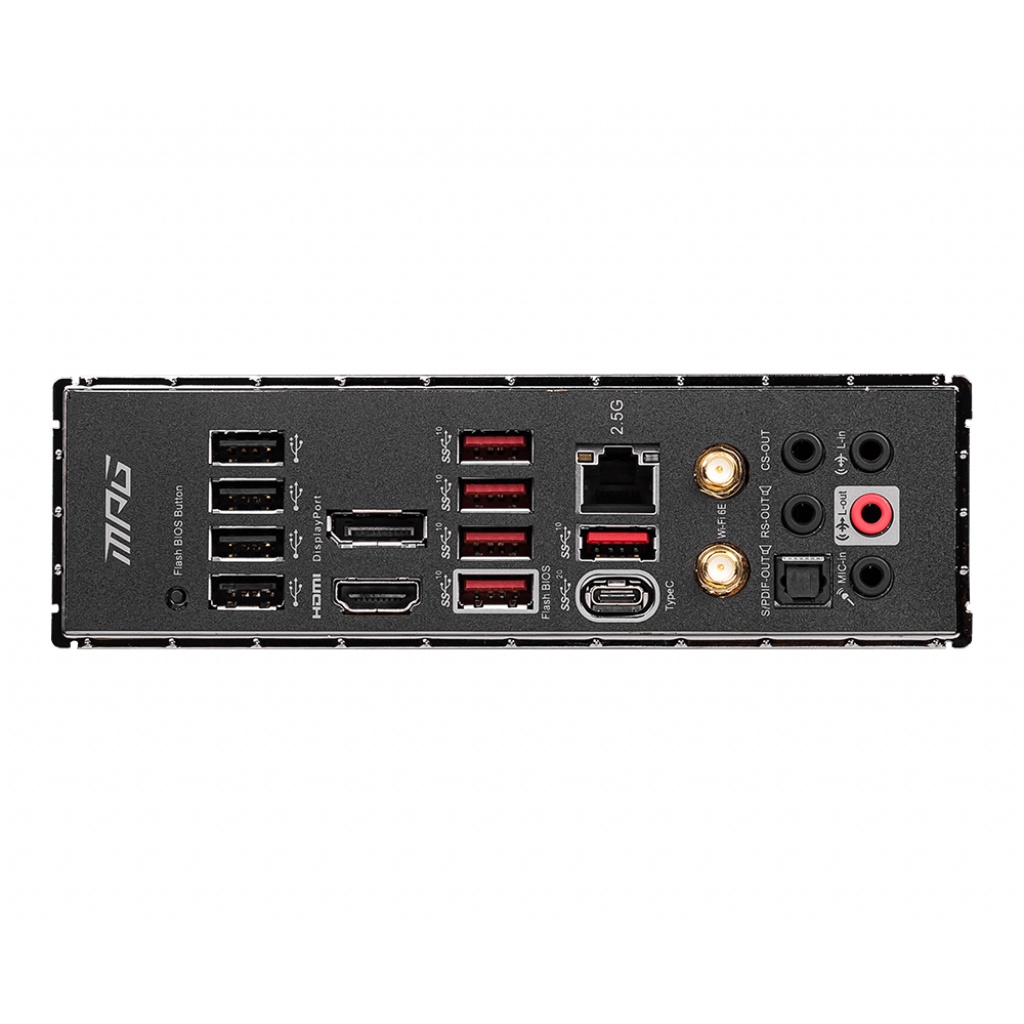

LAN
1x Intel® I225V 2.5Gbps LAN controller
WIFI & BLUETOOTH
Intel® Wi-Fi 6E module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 5(Gen 2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
5+ Optical S/PDIF (Realtek® ALC4080 Codec)
DISPLAYPORT
1
HDMI
1
DIRECTX
12
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR
ATX
DIMENSION
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Gambar produk
