Detail MSI MOTHERBOARD MAG B660M MORTAR WIFI DDR4 Intel B660 LGA 1700 mATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

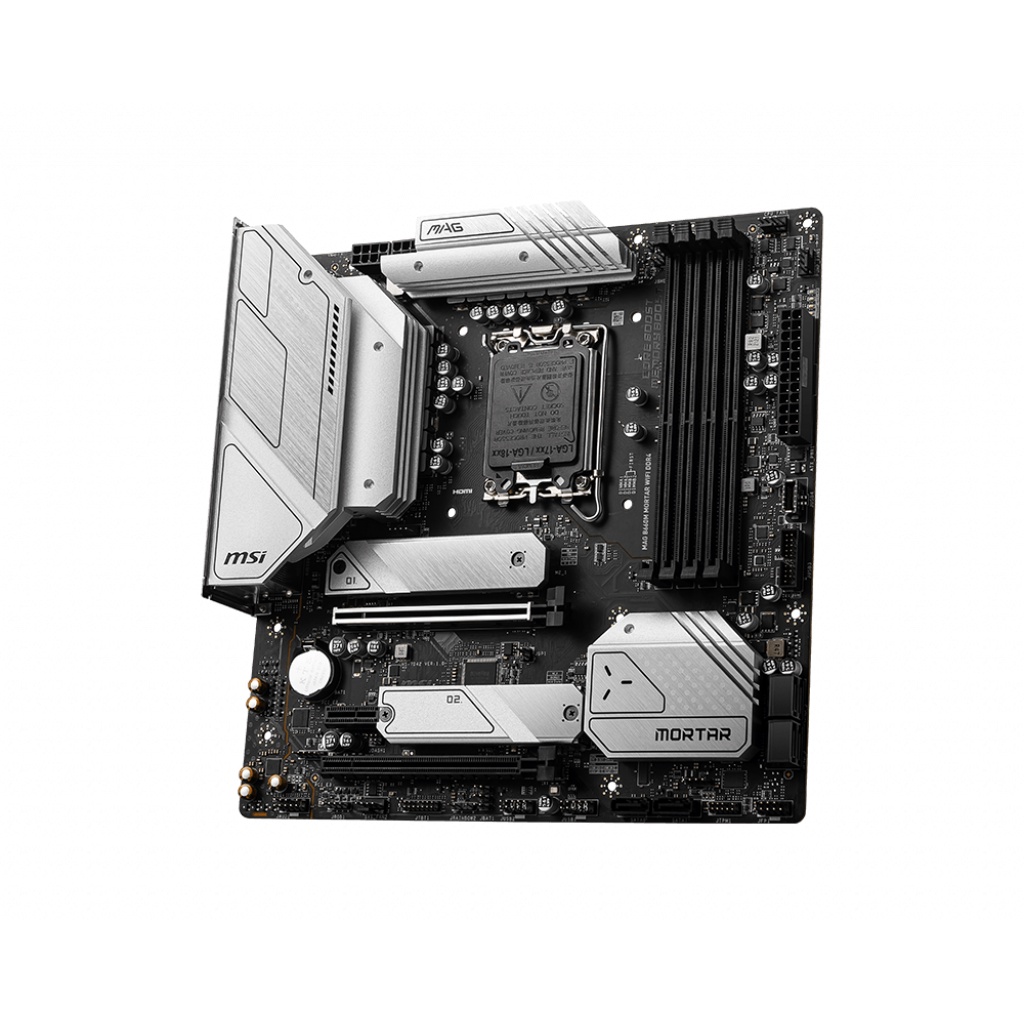

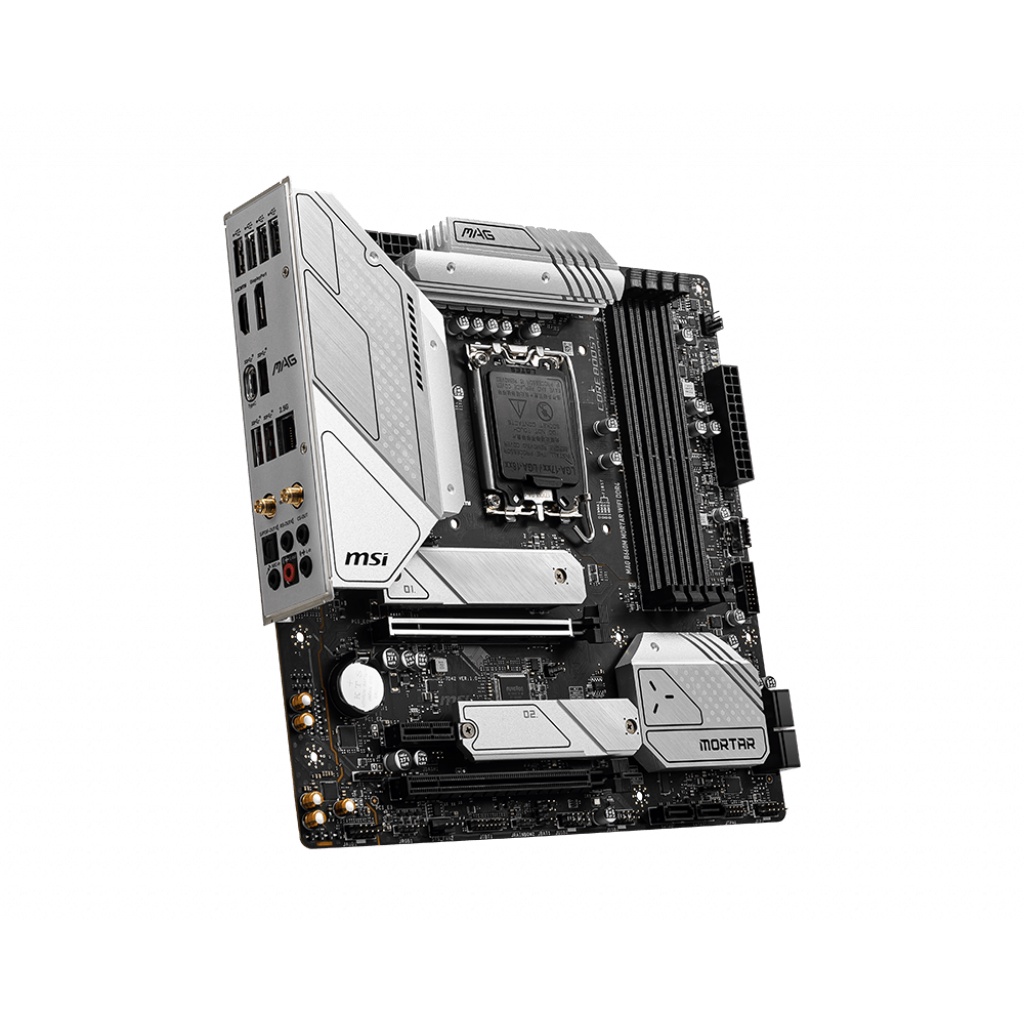

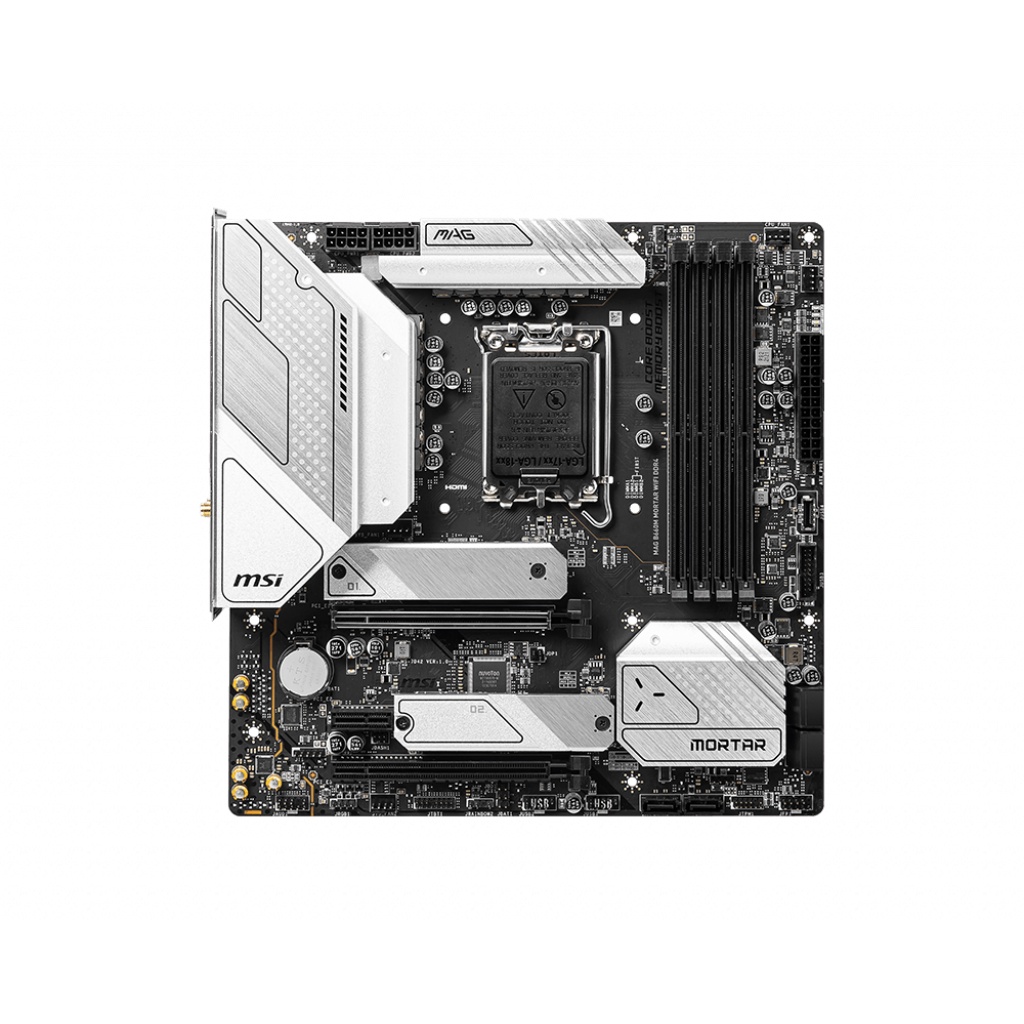

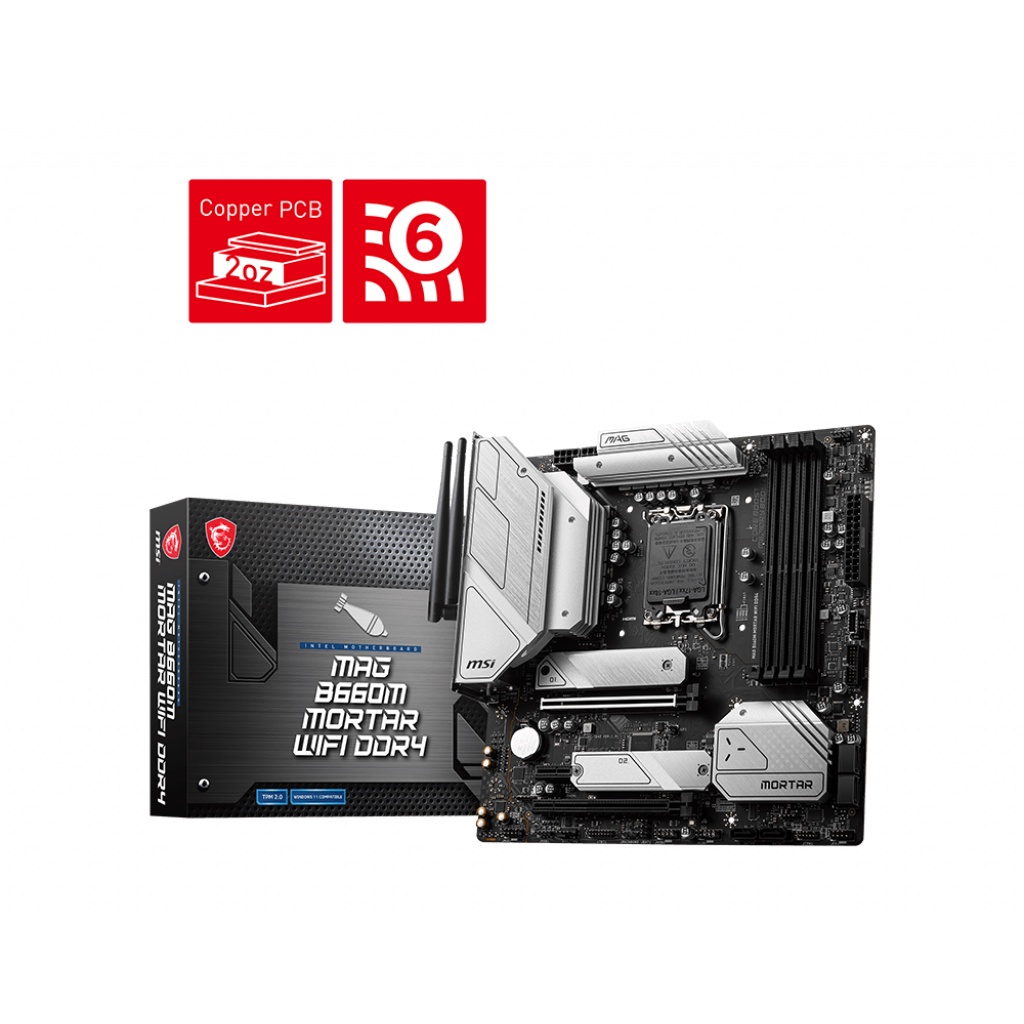

MAG B660M MORTAR WIFI DDR4
SPEK:
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel® B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
1
SATAIII
6
M.2 SLOT
2
RAID
0/1/5/10
LAN
1x Realtek® 8125BG 2.5G LAN
WIFI & BLUETOOTH
Intel® Wi-Fi 6E module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)

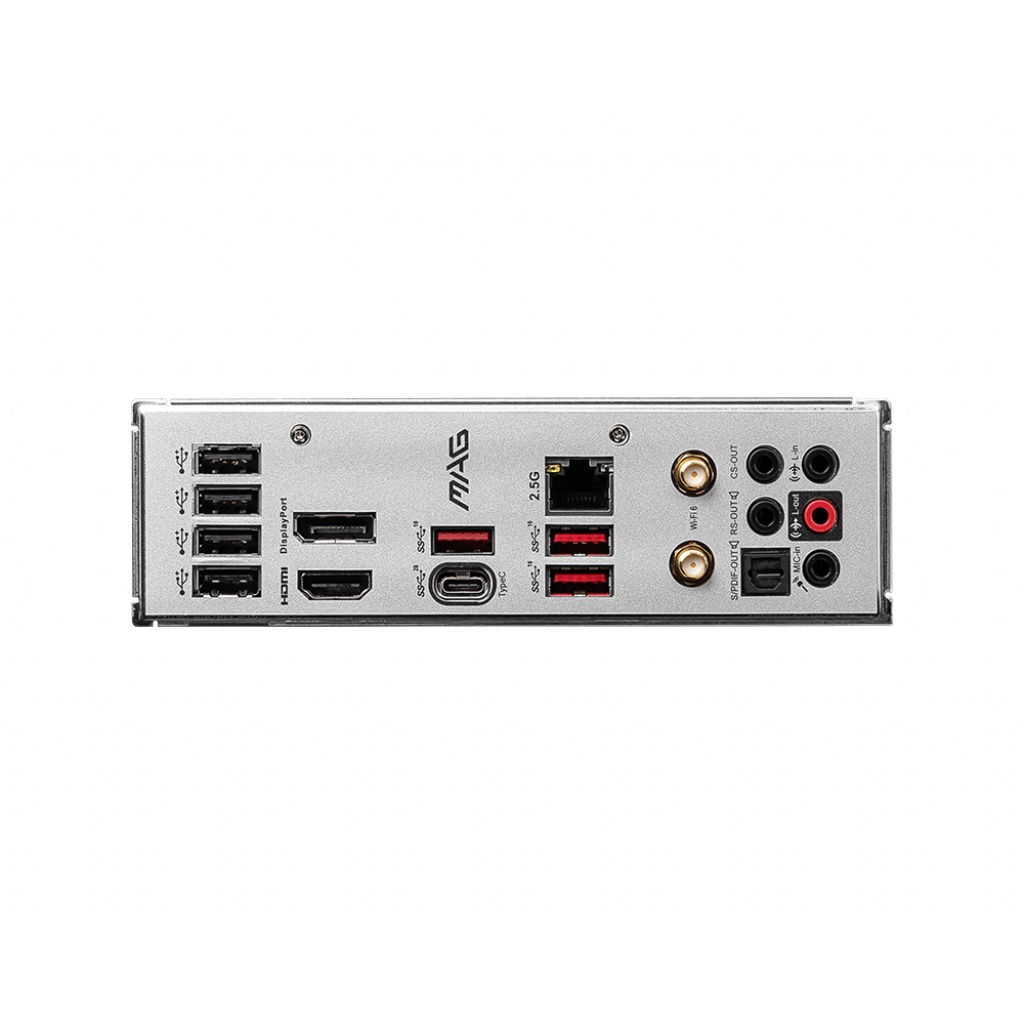

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek® ALC1200 Codec
DIRECTX
12
DISPLAYPORT
1
HDMI
1
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR
mATX
