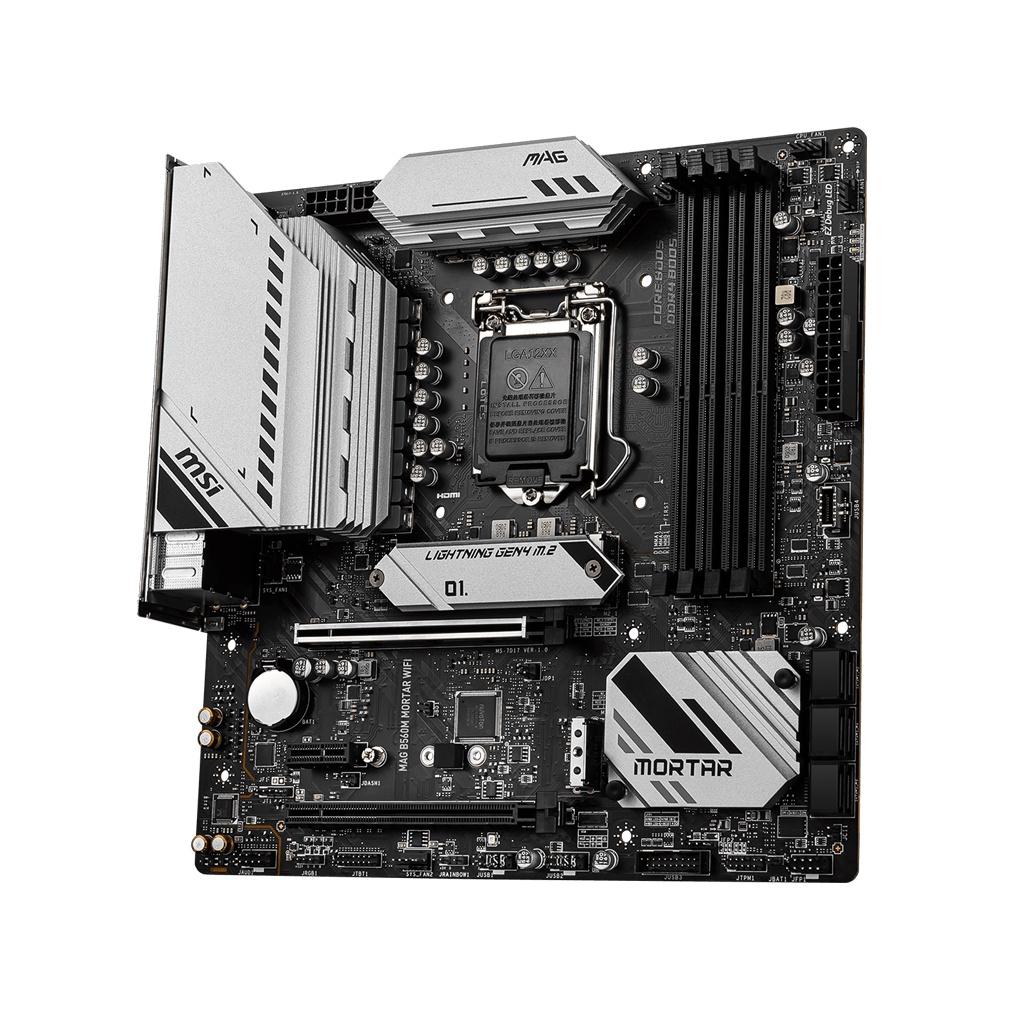

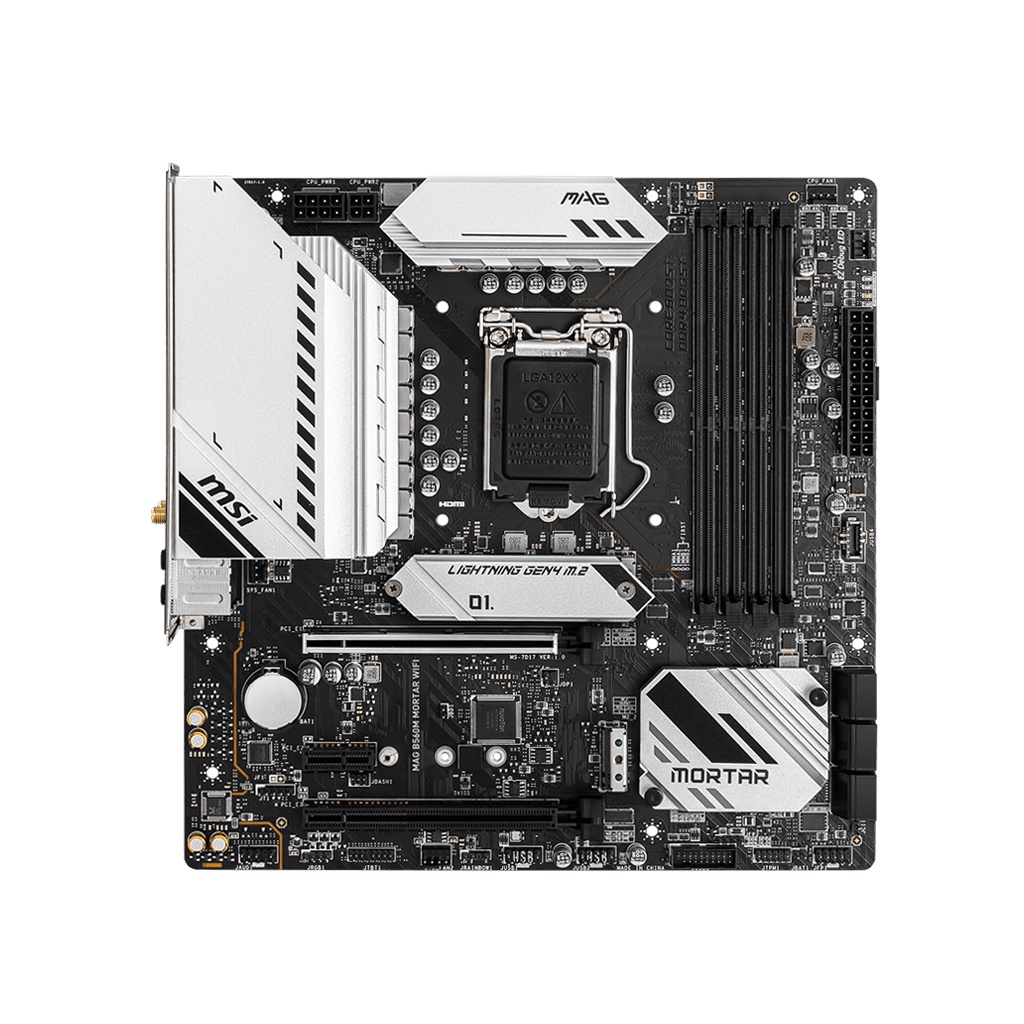

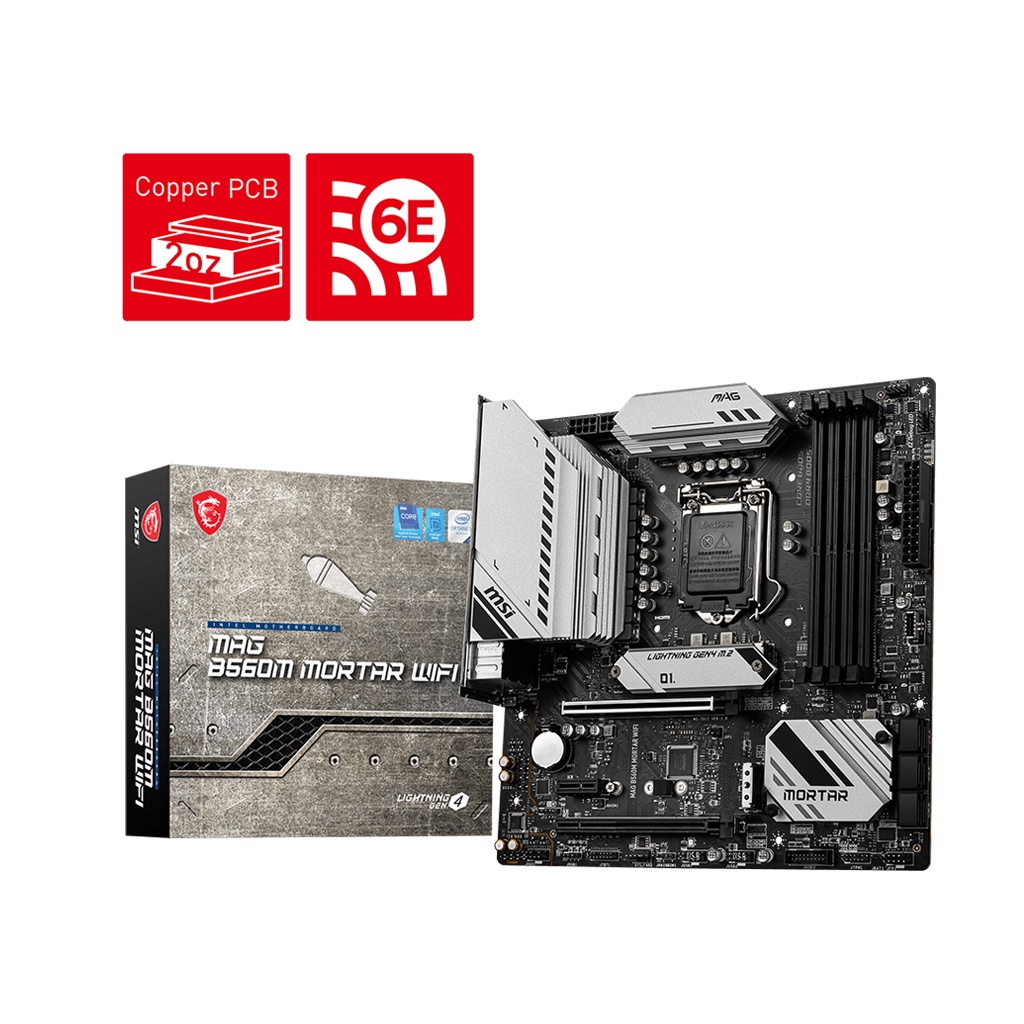

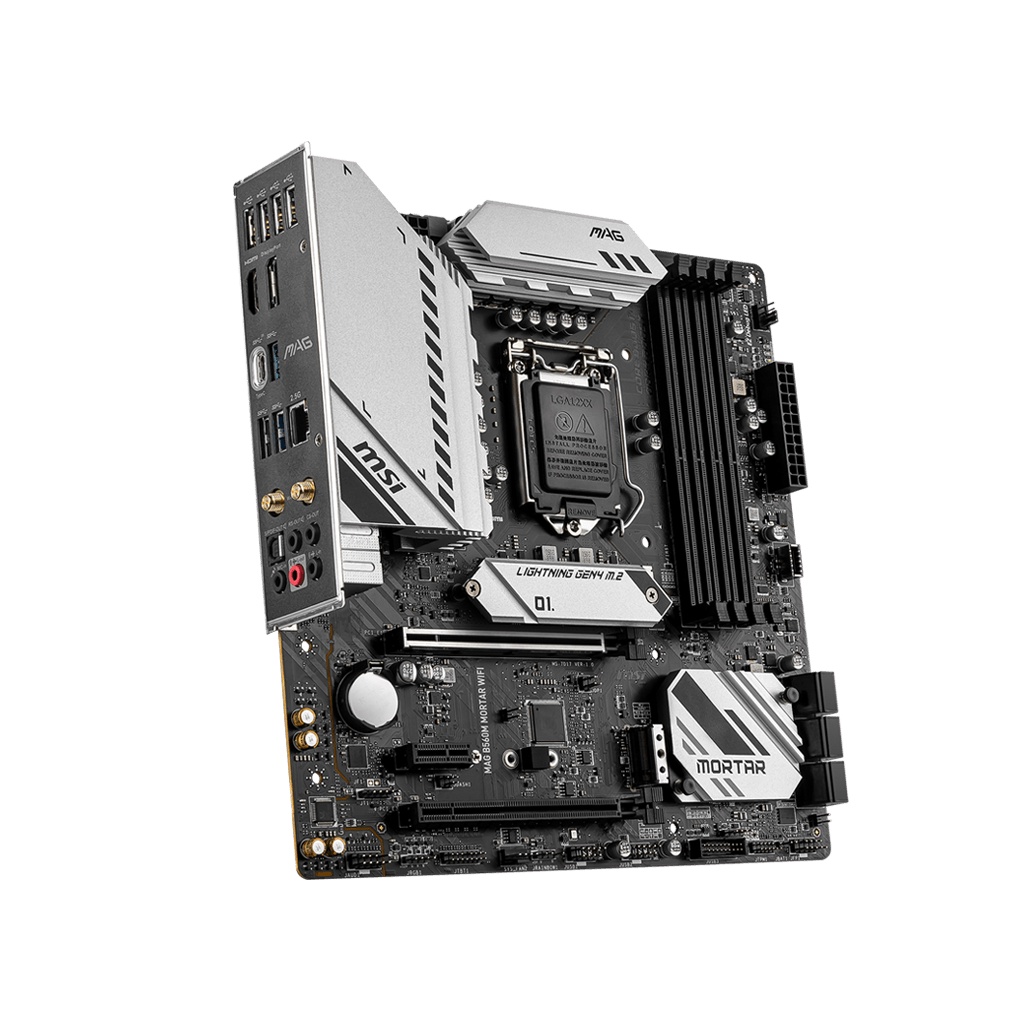

Detail MSI MOTHERBOARD MAG B560M MORTAR WIFI Intel B560 LGA 1200 M-ATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
MAG B560M MORTAR WIFI
SPEK:
CPU (MAX SUPPORT)
i9
SOCKET
1200
CHIPSET
Intel® B560 Chipset
DDR4 MEMORY
5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
1
SATAIII
6
M.2 SLOT
2
LAN
1x Realtek® 8125B 2.5G LAN
WIFI & BLUETOOTH
Intel® Wi-Fi 6E AX210
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)

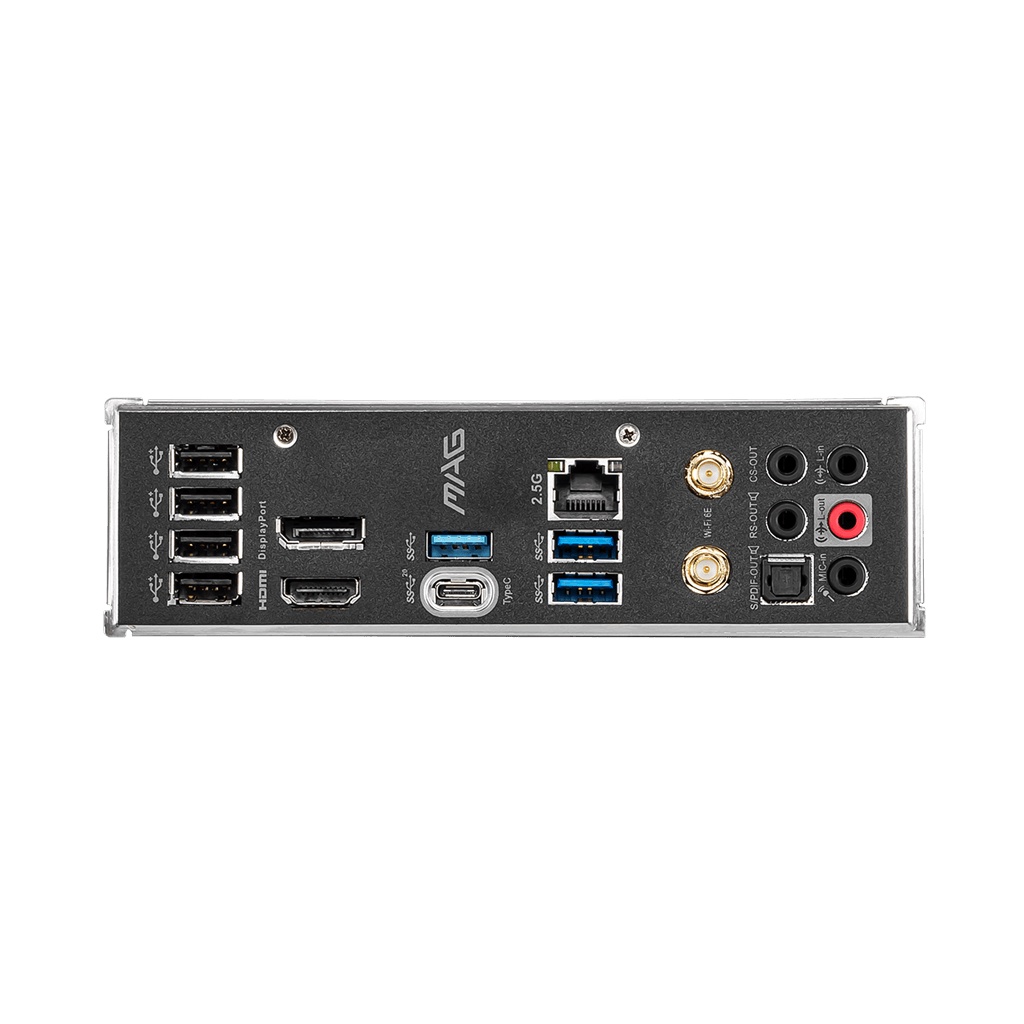

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek® ALC897 Codec
OPERATING SYSTEM
Support for Windows® 10 64-bit
FORM FACTOR
M-ATX
Gambar produk
