Detail MSI MOTHERBOARD MAG B560 TORPEDO Intel B560 LGA 1200 ATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
MAG B560 TORPEDO
SPEK:
CPU (MAX SUPPORT)
i9
SOCKET
1200
CHIPSET
Intel® B560 Chipset
DDR4 MEMORY
5066(OC)/5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
1
SATAIII
6
M.2 SLOT
3
LAN
1x Realtek® 8125B 2.5G LAN, 1x Intel® I219-V 1G LAN
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek® ALC897 Codec
OPERATING SYSTEM
Support for Windows® 10 64-bit
FORM FACTOR
ATX

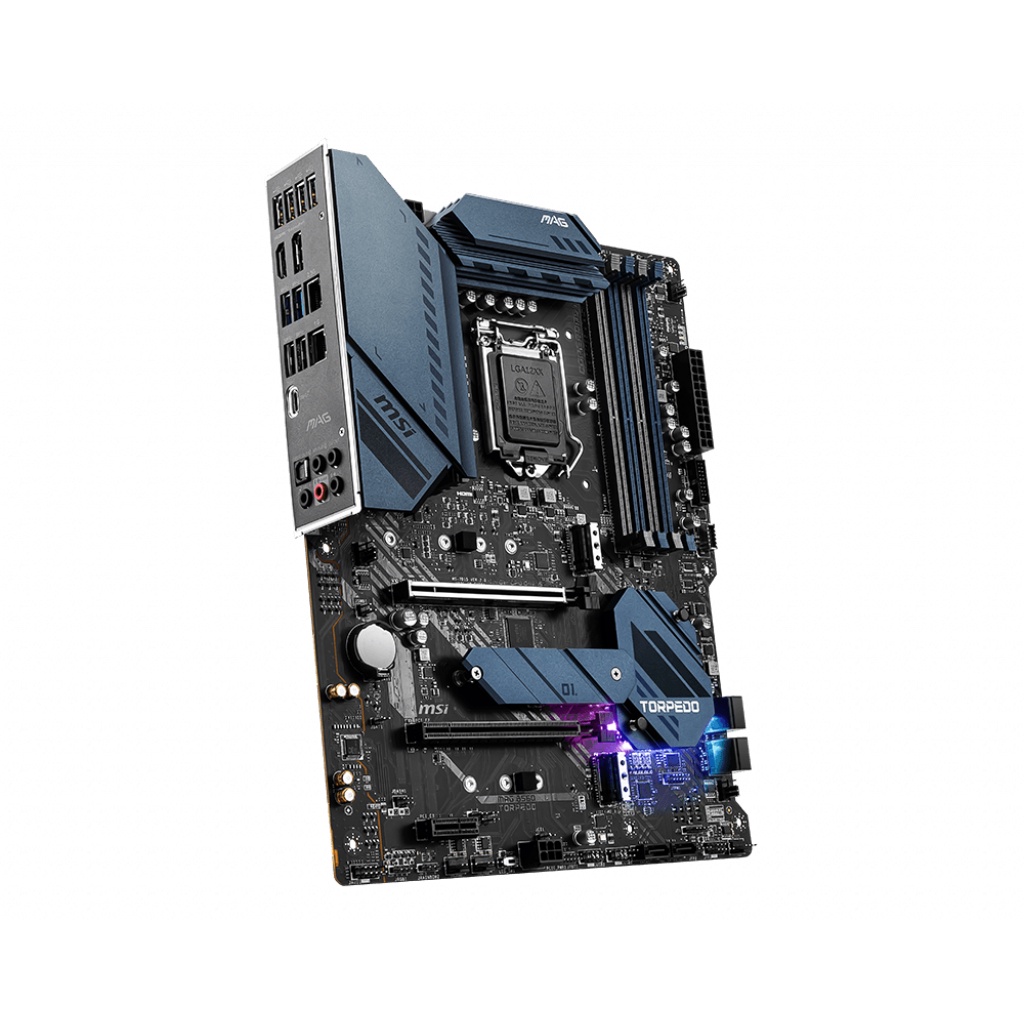

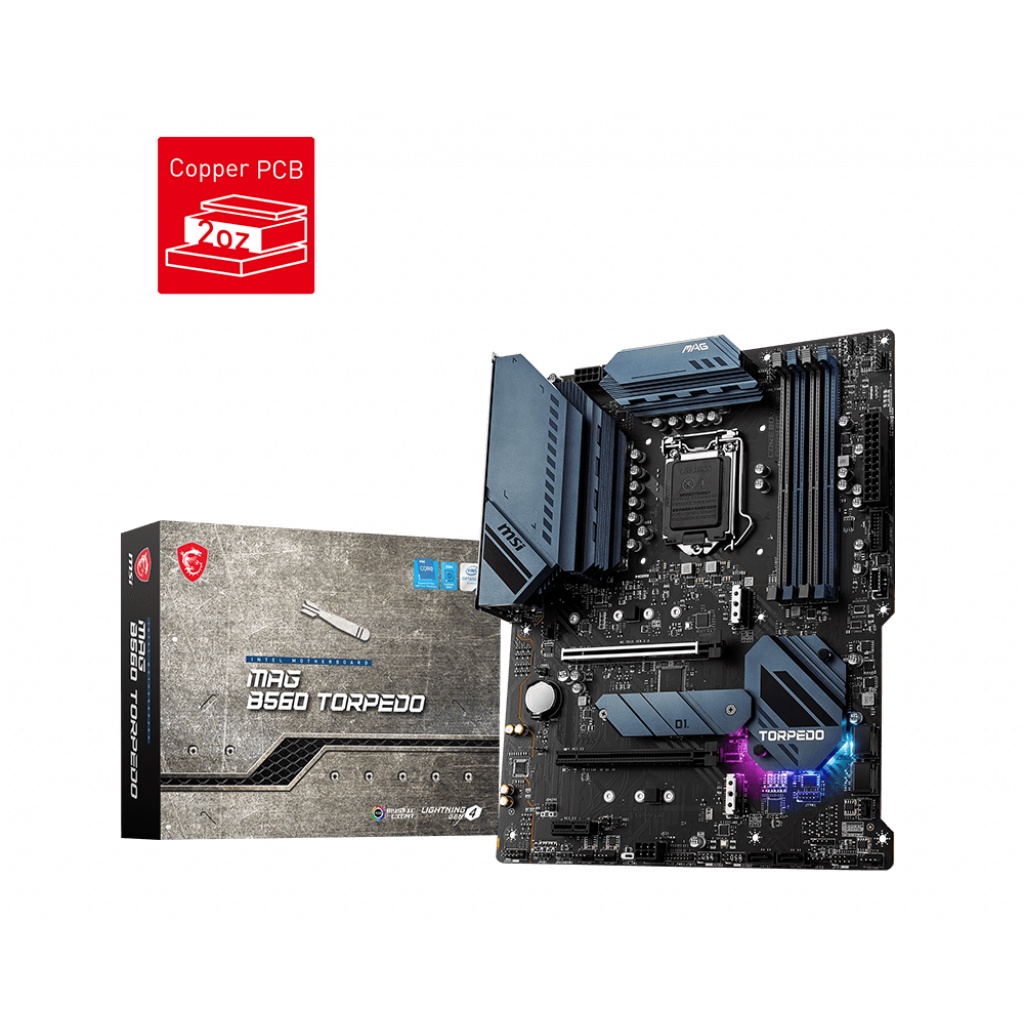

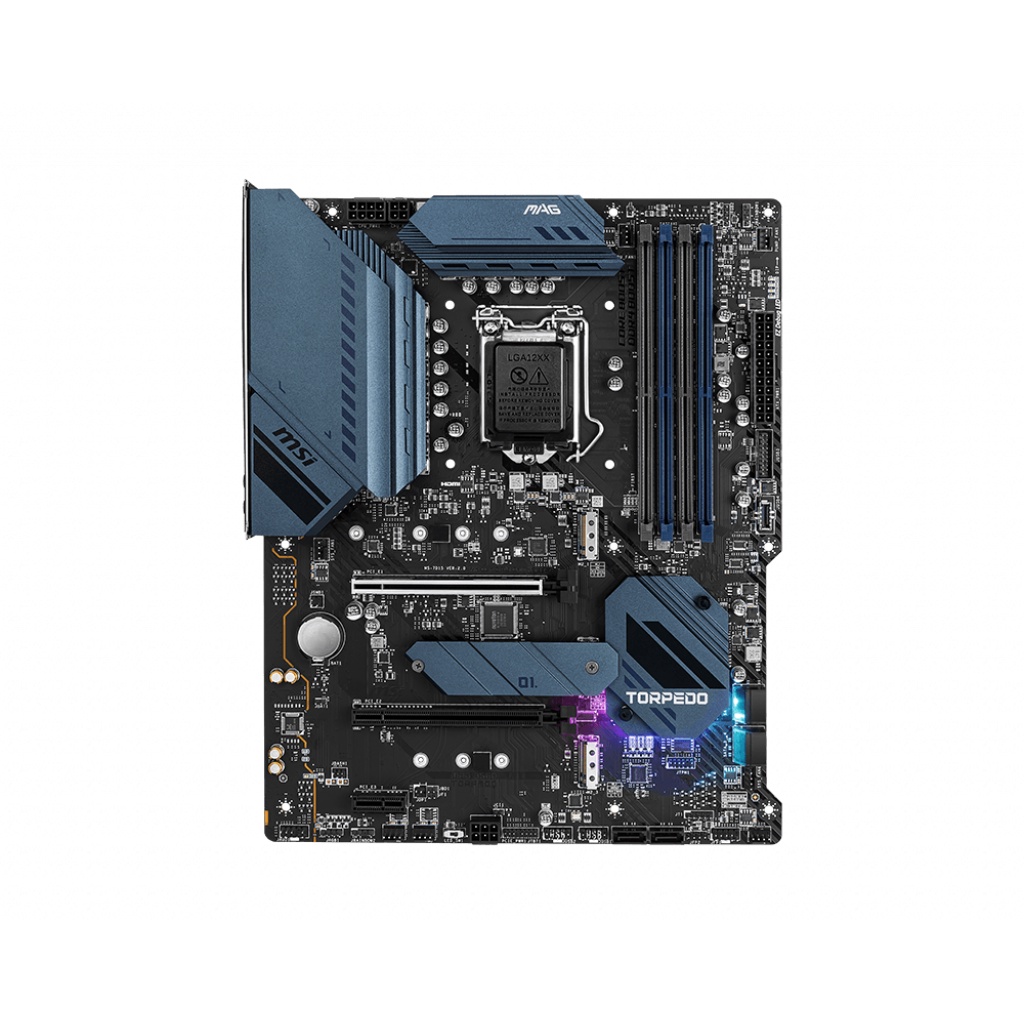

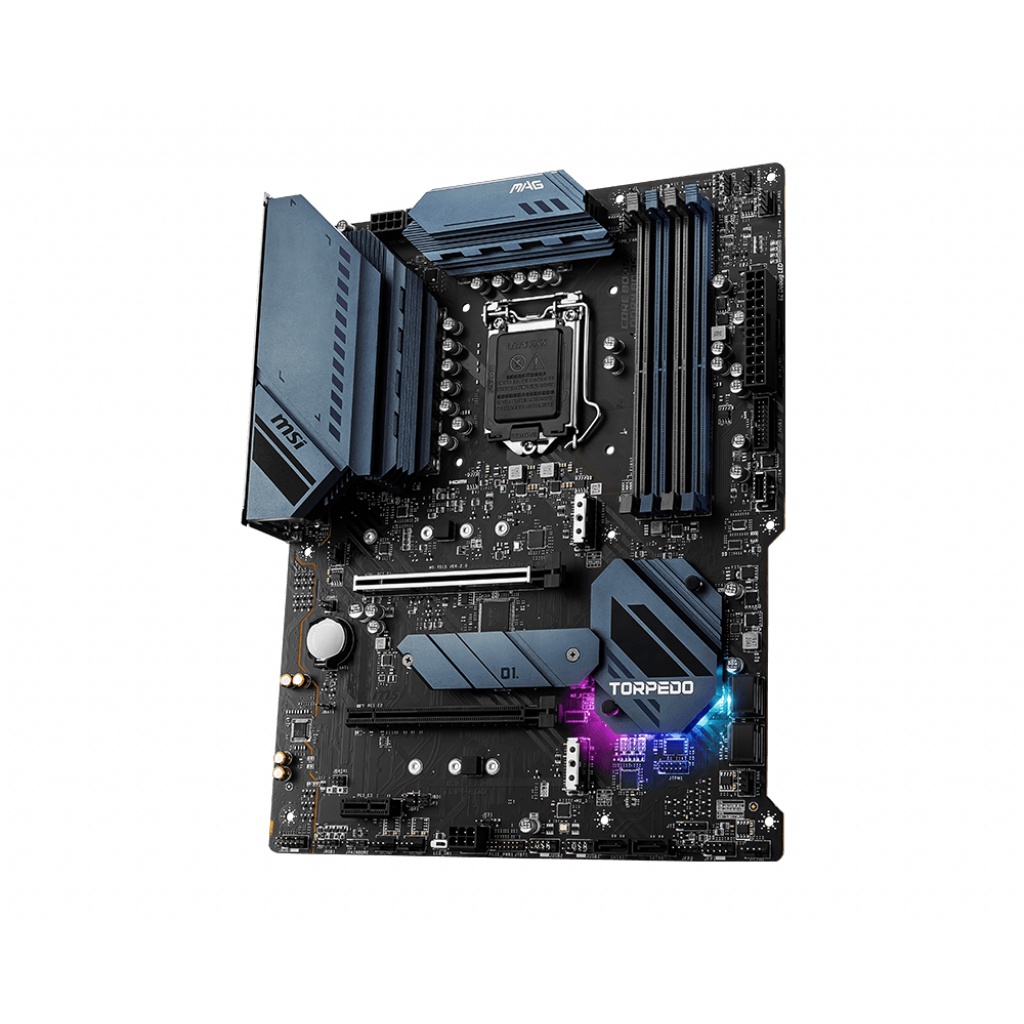

Gambar produk
