Detail MSI MOTHERBOARD B560M PRO Intel B560 LGA 1200 MATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
B560M PRO
SPEK:
CPU (MAX SUPPORT)
i9
SOCKET
1200
CHIPSET
Intel® B560 Chipset
DDR4 MEMORY
5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
2
MAX MEMORY (GB)
64
PCI-E X16
1
PCI-E GEN
Gen4
PCI-E X1
2
SATAIII
6
M.2 SLOT
1
LAN
1x Realtek® 8125B 2.5Gbps LAN controller
USB 3.2 PORTS (FRONT)
2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
AUDIO PORTS (REAR)
Realtek® ALC897 Codec
OPERATING SYSTEM
Support for Windows® 10 64-bit
FORM FACTOR
MATX

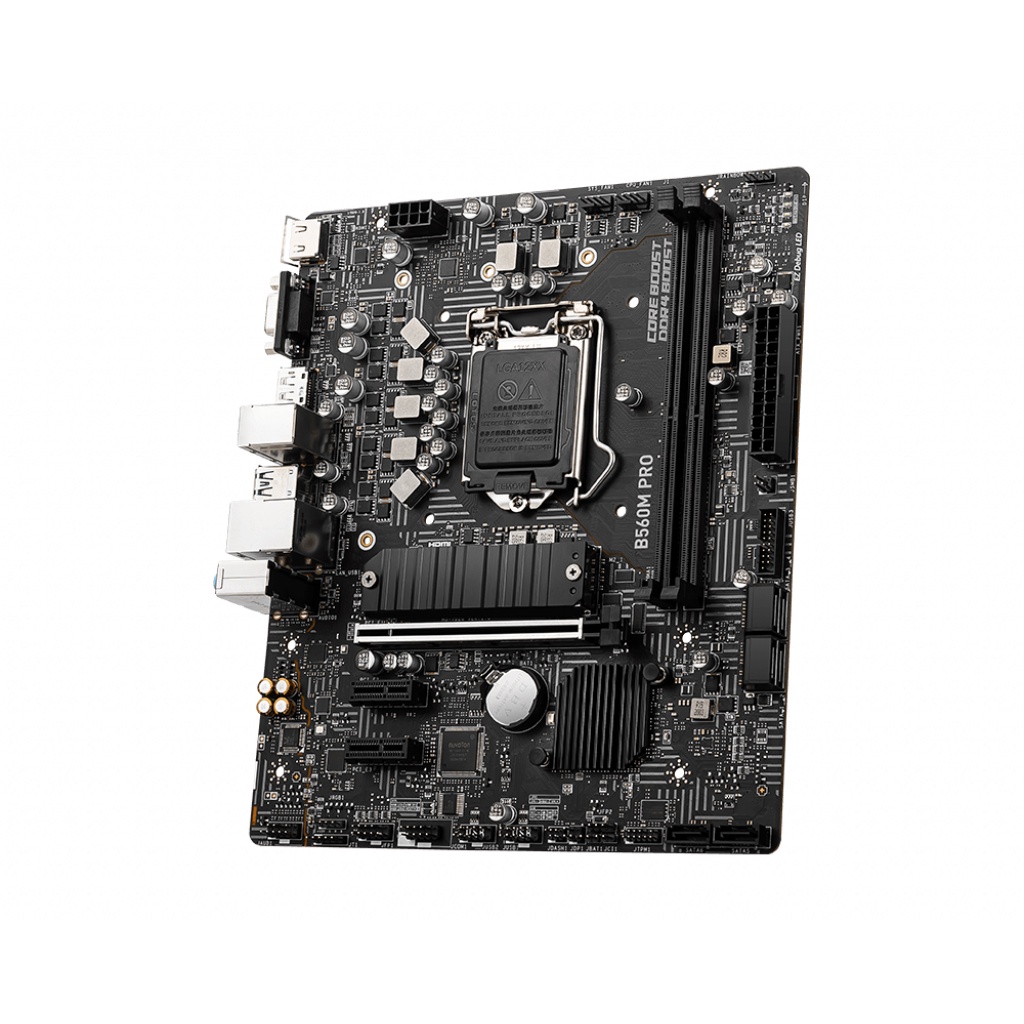

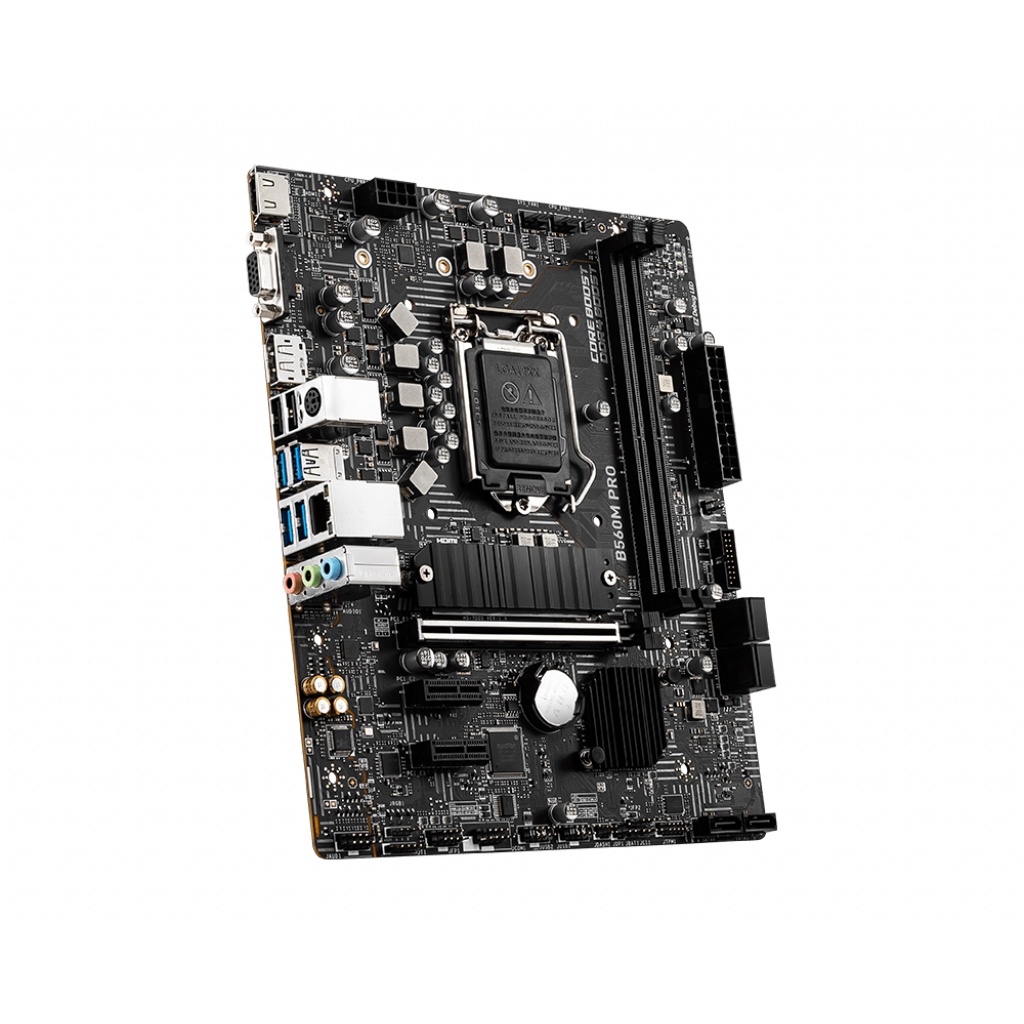

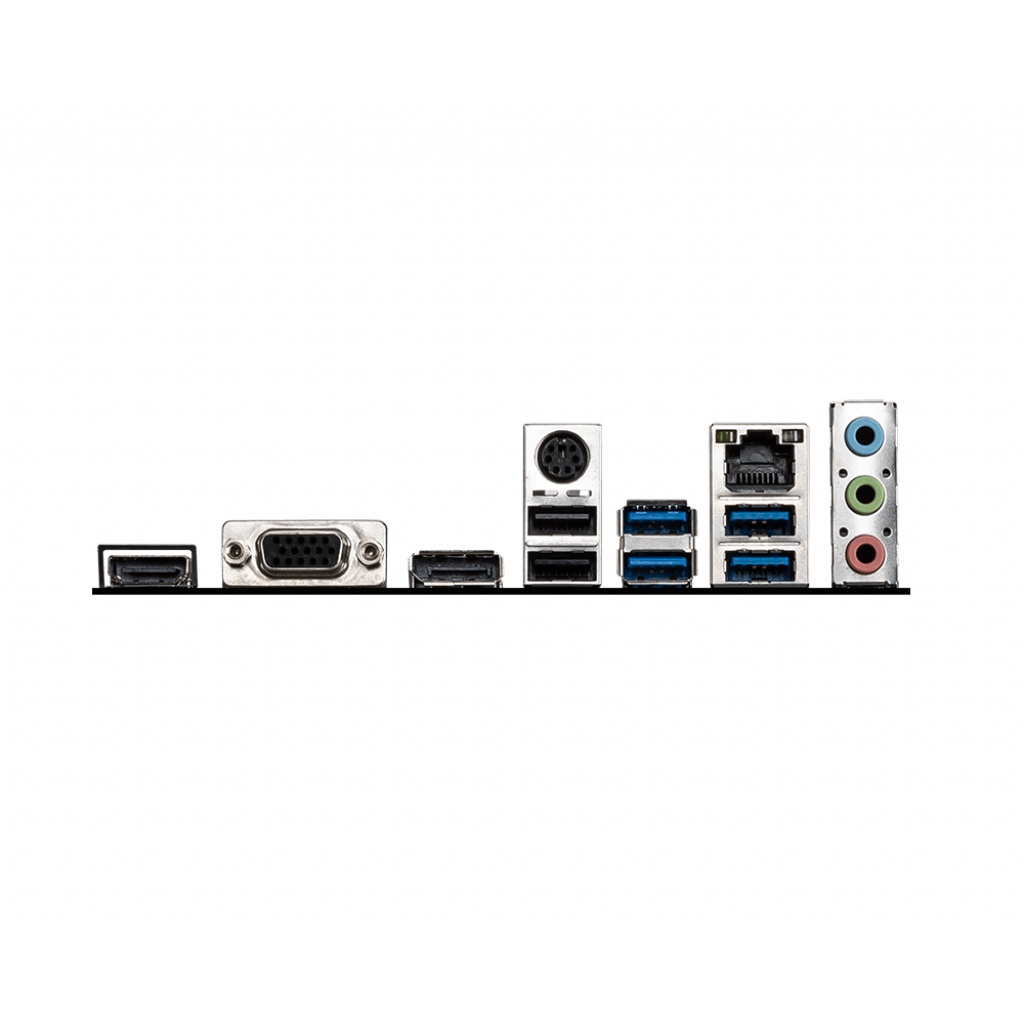

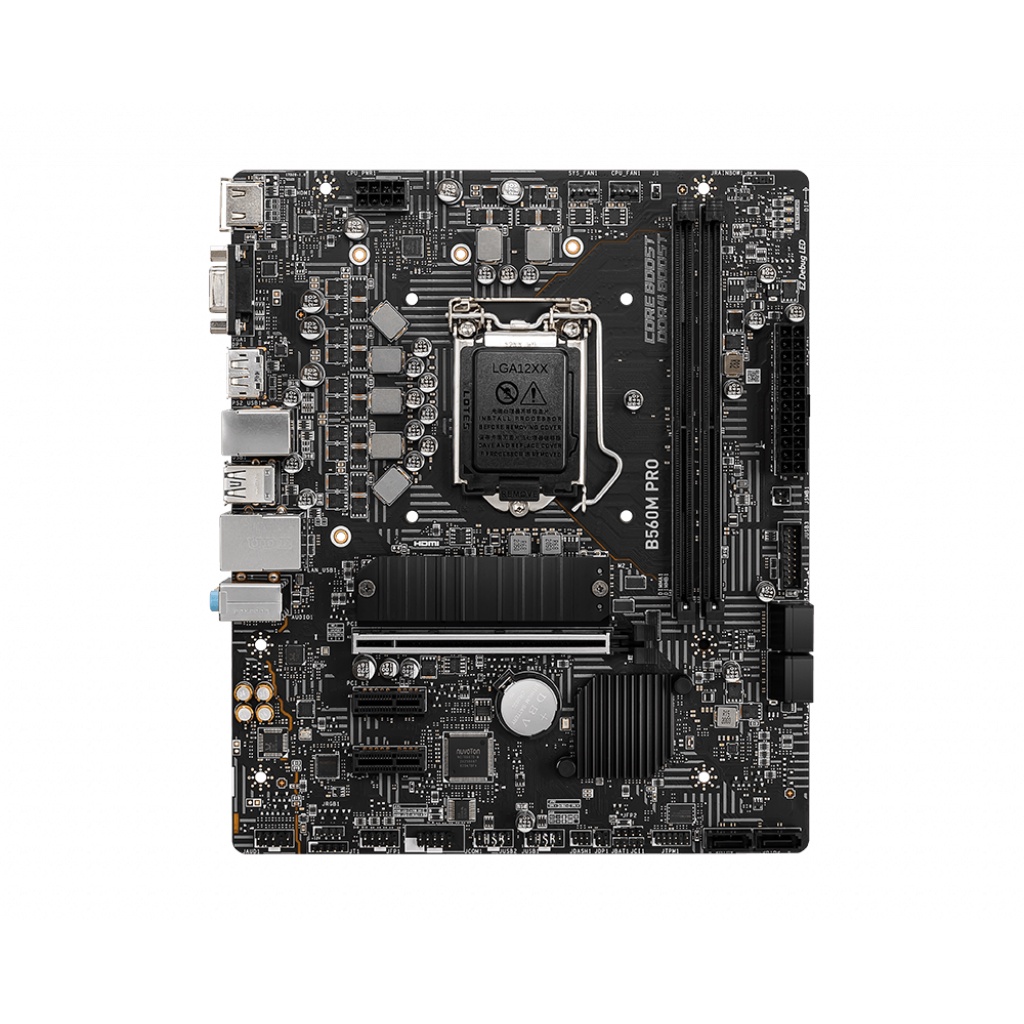

Gambar produk
