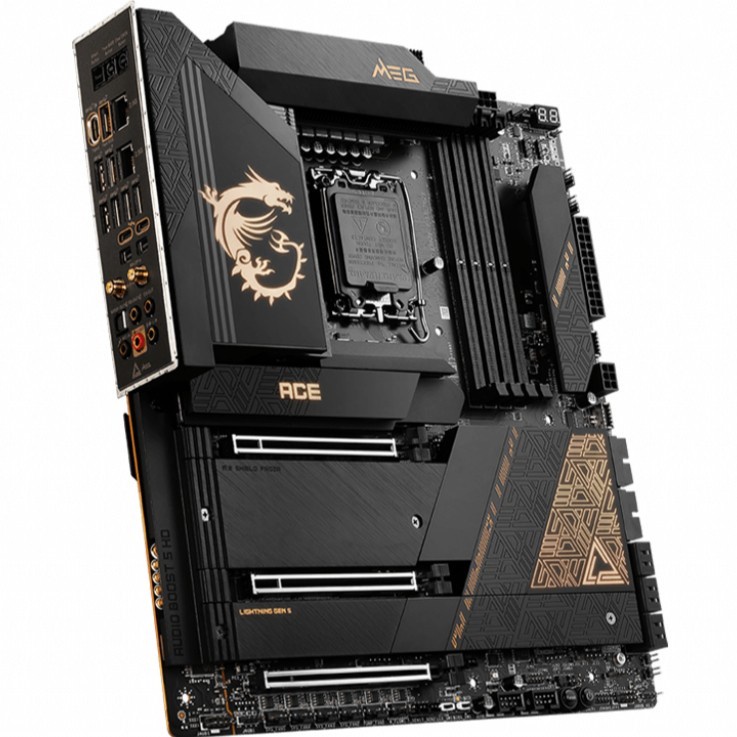

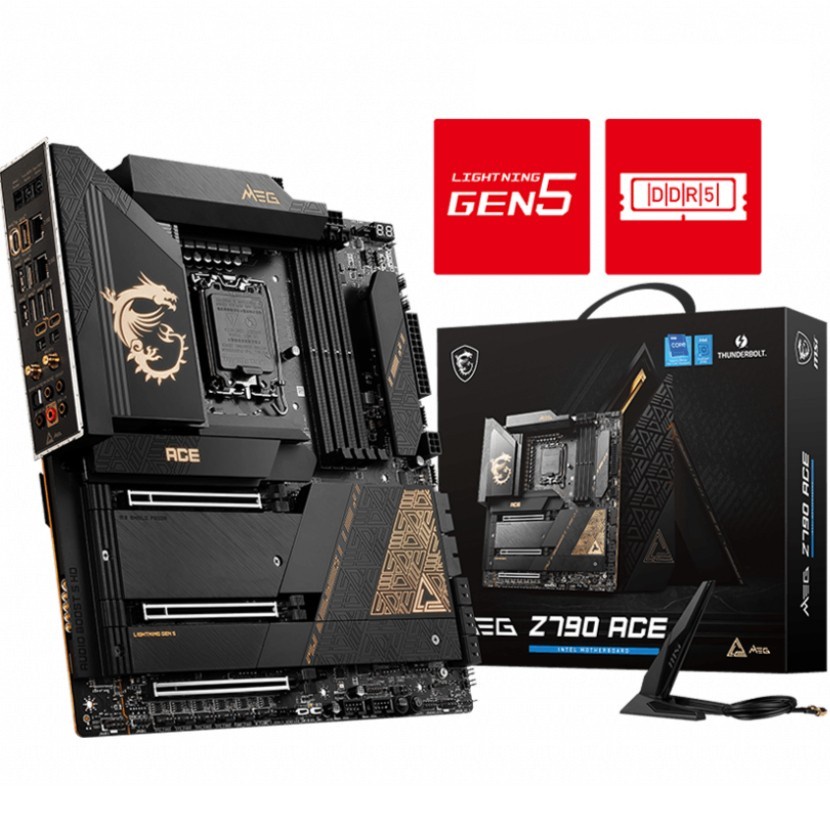

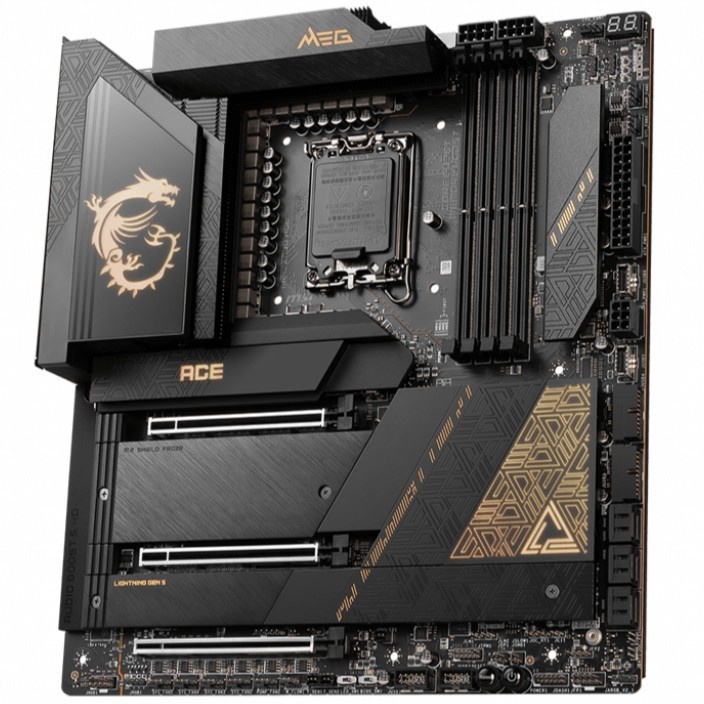

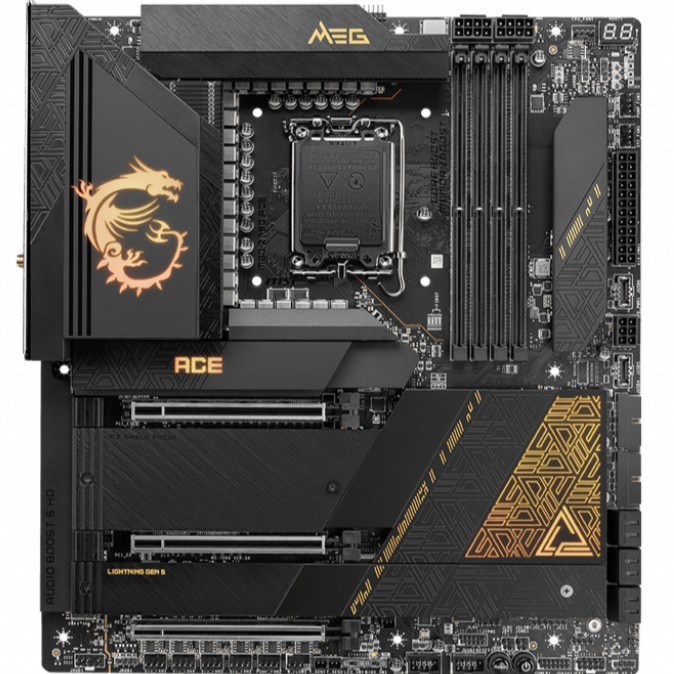

MSI MEG Z790 ACE Intel LGA1700 Z790 DDR5 Motherboard Raptor Lake

Detail MSI MEG Z790 ACE Intel LGA1700 Z790 DDR5 Motherboard Raptor Lake

MSI MEG Z790 ACE Intel LGA1700 Z790 DDR5 Motherboard Raptor Lake

Features
Dual Thunderbolt™ 4 ports
24+1+2 Phases Power Design
Premium Thermal Solution
Lightning Gen 5
Latest DDR5 Memory
Quintuple M.2 Connectors
Magnetic and Screwless M.2 Shield Frozr
Dual 2.5G LAN
Wi-Fi 6E
Audio Boost 5 HD
8 Layer PCB with 2oz Thickened Copper

Details
CPU Support Supports 12th/ 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors : CPU Socket LGA 1700
Chipset Intel® : Z790 Chipset
Expansion Slots
2x PCIe 5.0 x16 slots
1x PCIe 4.0 x16 slot

Display Interface
1x Type-C Display port – Requires Processor Graphics
2x Thunderbolt™ 4 (Type-C), Input from mini DisplayPort Thunderbolt™ 4
2x USB Type-C up to 40G,
Charging support up to 5V/3A, 15W
2x Mini DisplayPort input ports
Memory Support 4 DIMMs, Dual Channel DDR5 7800+MHz (OC)
Storage 1x M.2 Gen 5 x4 128Gbps slot
4x M.2 Gen 4 x4 64Gbps slots
6x SATA 6Gbps ports

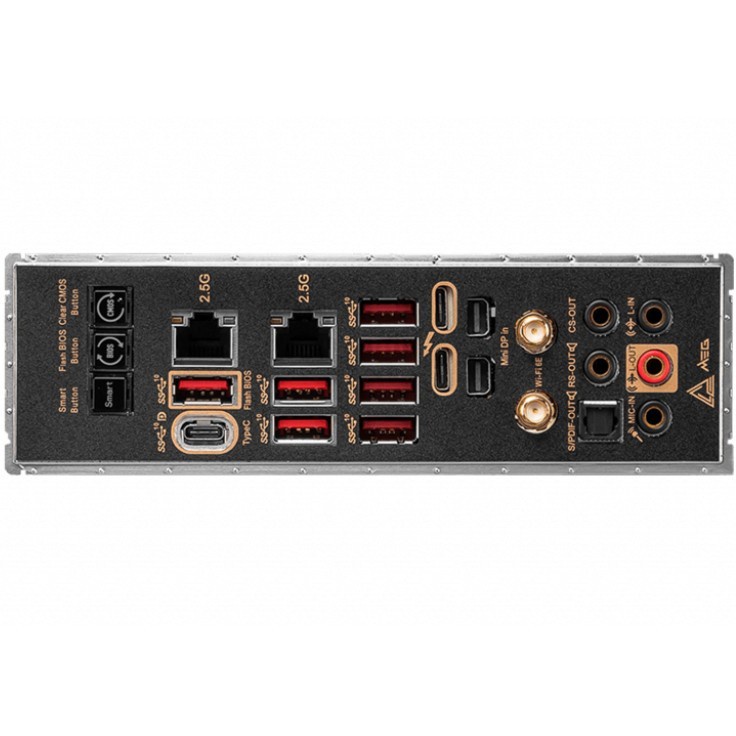

USB ports 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C)
8x USB 3.2 Gen 2 10Gbps (7 Type-A + 1 Type-C)
4x USB 3.2 Gen 1 5Gbps (4 Type-A)
4x USB 2.0
LAN 2x Intel®
2.5Gbps LAN
WiFi / BT Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost 5 HD
