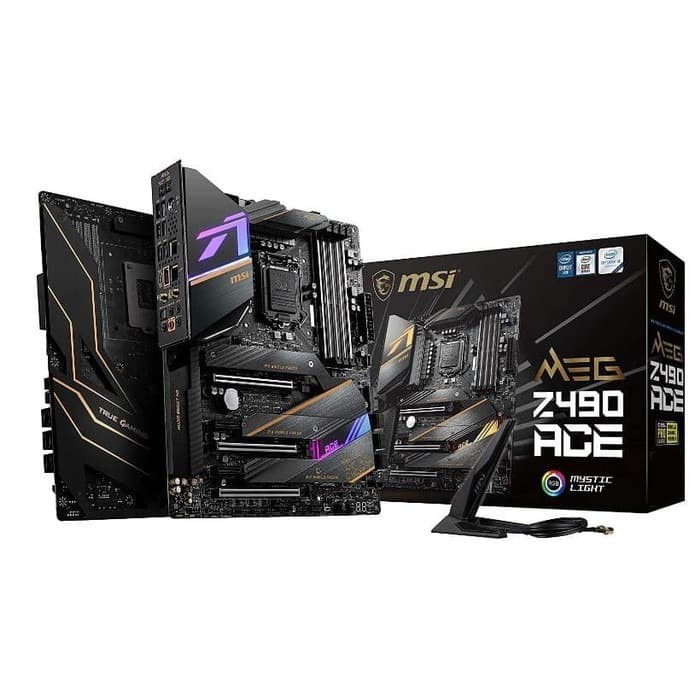

MSI MEG Z490 ACE - LGA1200

Detail MSI MEG Z490 ACE - LGA1200

FEATURE
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
Extreme Power Design
ISL digital PWM, 16+1 phases with 90A SPS and dual CPU
power connectors to unleash your true power.
Frozr Heatsink Design
Designed with double ball bearings to provide best
performance for enthusiast gamers and prosumers.
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best
online gaming experience.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS
color technology, delivering speeds up to 2400Mbps.
Triple Turbo M.2
Running at PCI-E Gen3 x4 maximizes performance for
NVMe based SSDs.
Smart Button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control
functions with just one click.

SPECIFICATION
Model Name MEG Z490 ACE
CPU Support Supports 10th Gen Intel®
Core™ and Pentium®
Gold /
Celeron®
processors
CPU Socket LGA 1200
Chipset Intel®
Z490 Chipset
Graphics Interface 3x PCI-E 3.0 x16 slots
Support 2-way NVIDIA®
SLI™ Technology / 3-way AMD®
CrossFire™ Technology
Memory Support 4 DIMMs, Dual Channel DDR4-4800MHz(OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 3 x Turbo M.2 32Gb/s slots, supports Intel®
Optane™
technology
6x SATA 6Gb/s
USB ports 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) + 4 x USB 3.2 Gen 2
10Gbps (3 Type-A + 1 Type-C) + 4 x USB 3.2 Gen 1 5Gbps
(Type-A) + 6 x USB 2.0
LAN Realtek®
8125B 2.5G LAN + Intel®
I219V Gigabit LAN
WiFi / BT Intel®
Wi-Fi 6 AX201, Bluetooth 5.1
Audio 8-Channel(7.1) HD Audio with Audio Boost HD
Form Factor ATX
