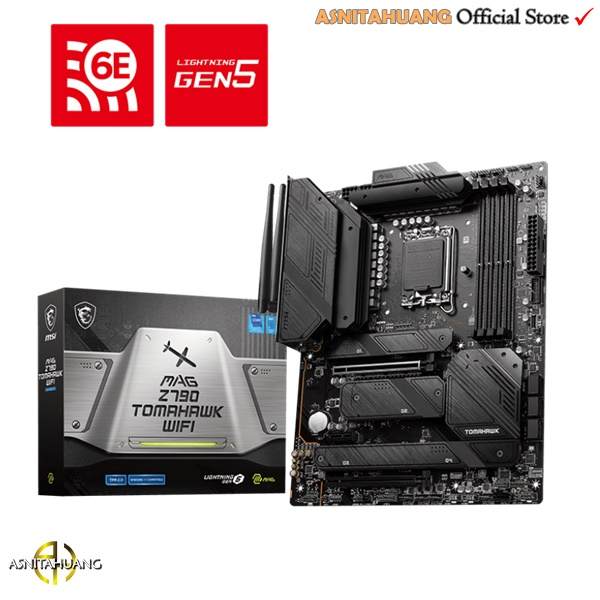

Detail MSI MAG Z790 TOMAHAWK WIFI (LGA1700, Z790, DDR5, USB3.2 Type-C, SATA3)
SPECIFICATIONS
Model Name MAG Z790 TOMAHAWK WIFI
CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® Z790 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC)
Storage 4x M.2 Gen4 x4 64Gbps slots, 7x SATA 6Gb/s ports
USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
6x USB 3.2 Gen 2 10Gbps (4 Type-A + 2 Type-C),
6x USB 3.2 Gen 1 5Gbps (Type-A),
4x USB 2.0
LAN 1x Intel® 2.5Gbps LAN
Wireless /
Bluetooth
Intel® Wi-Fi 6E, Bleutooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
