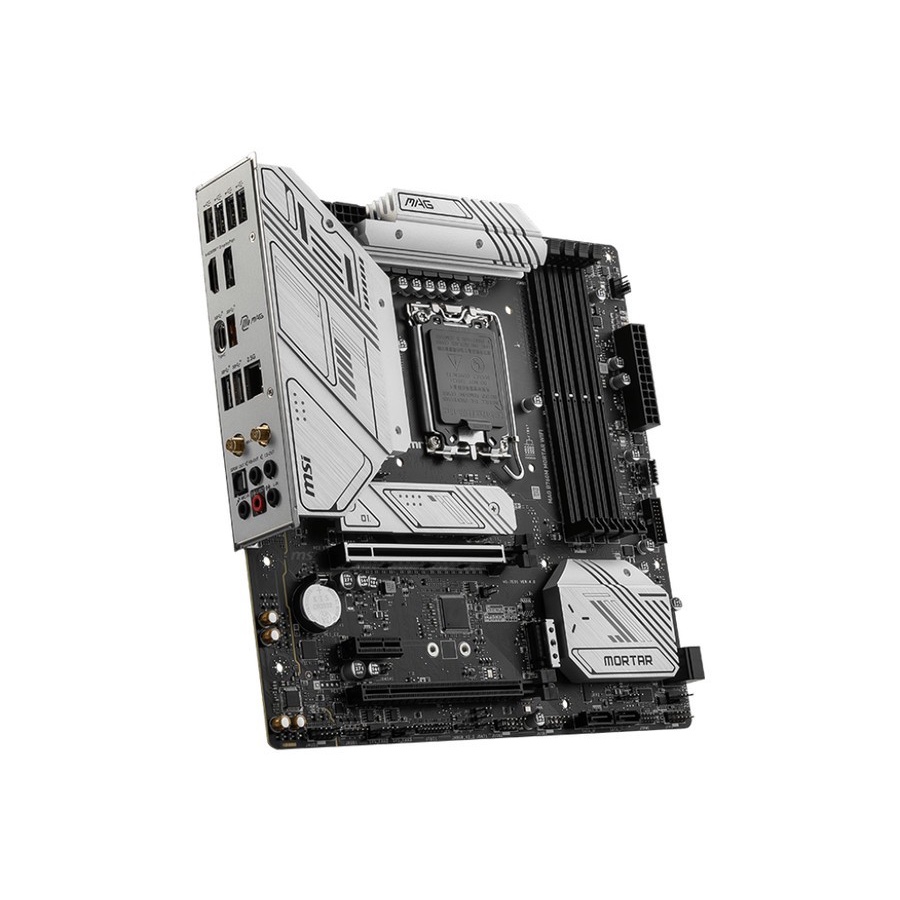

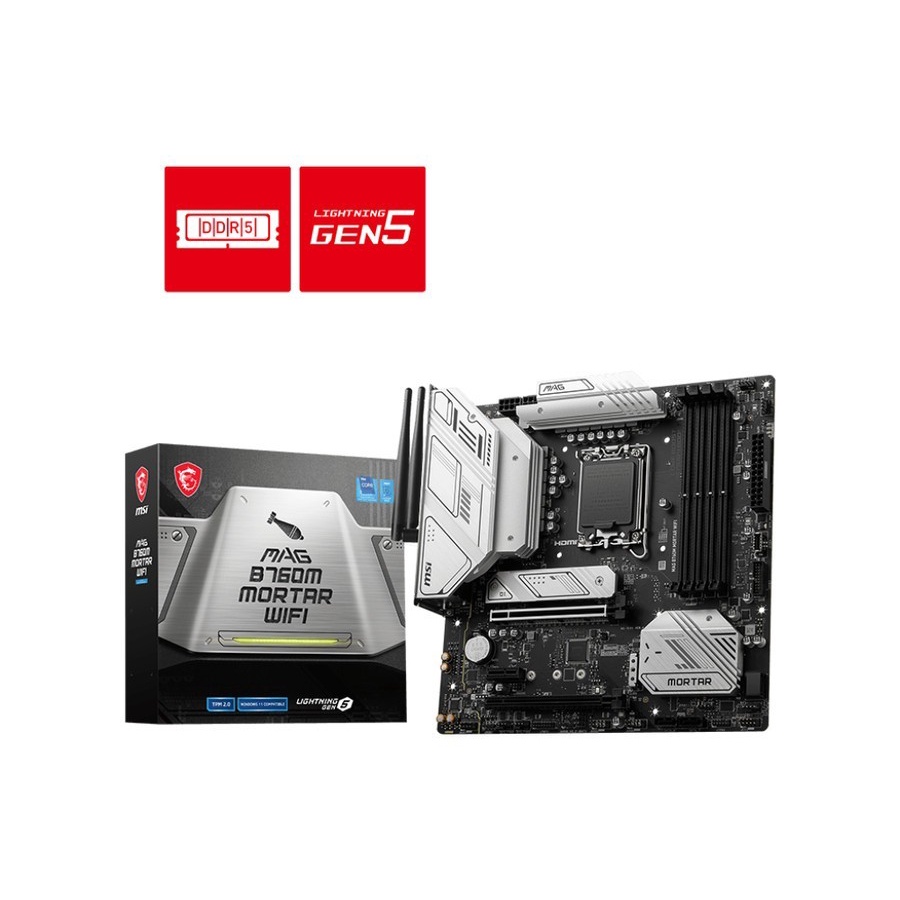

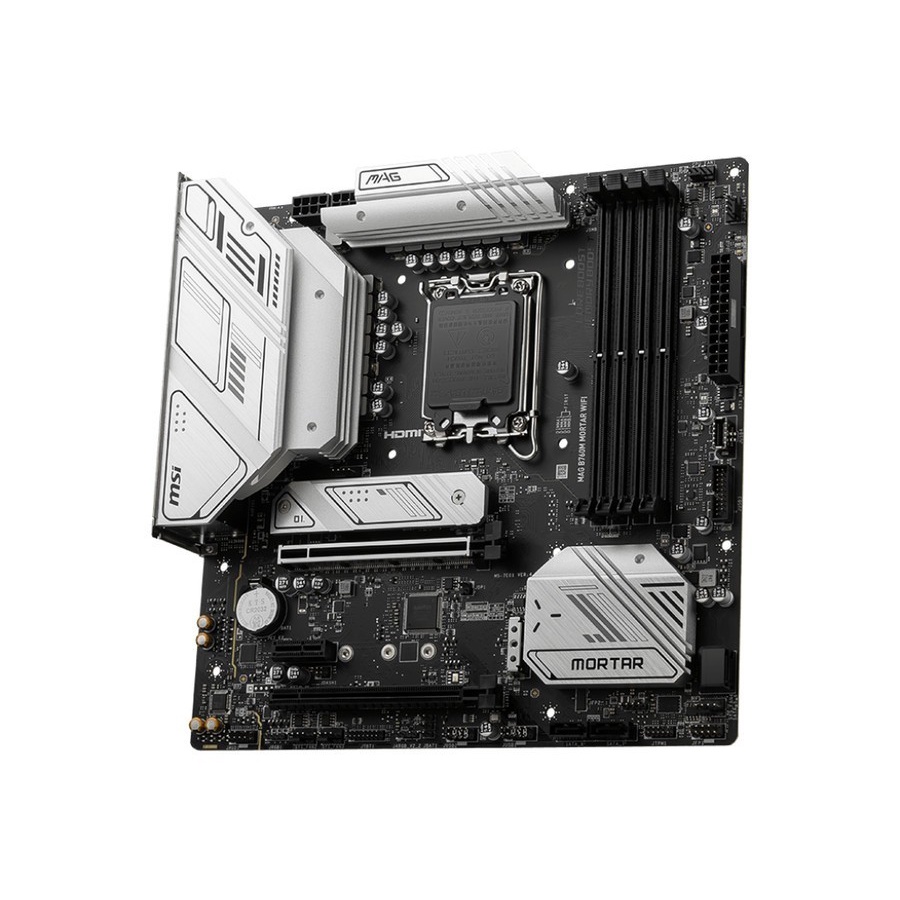

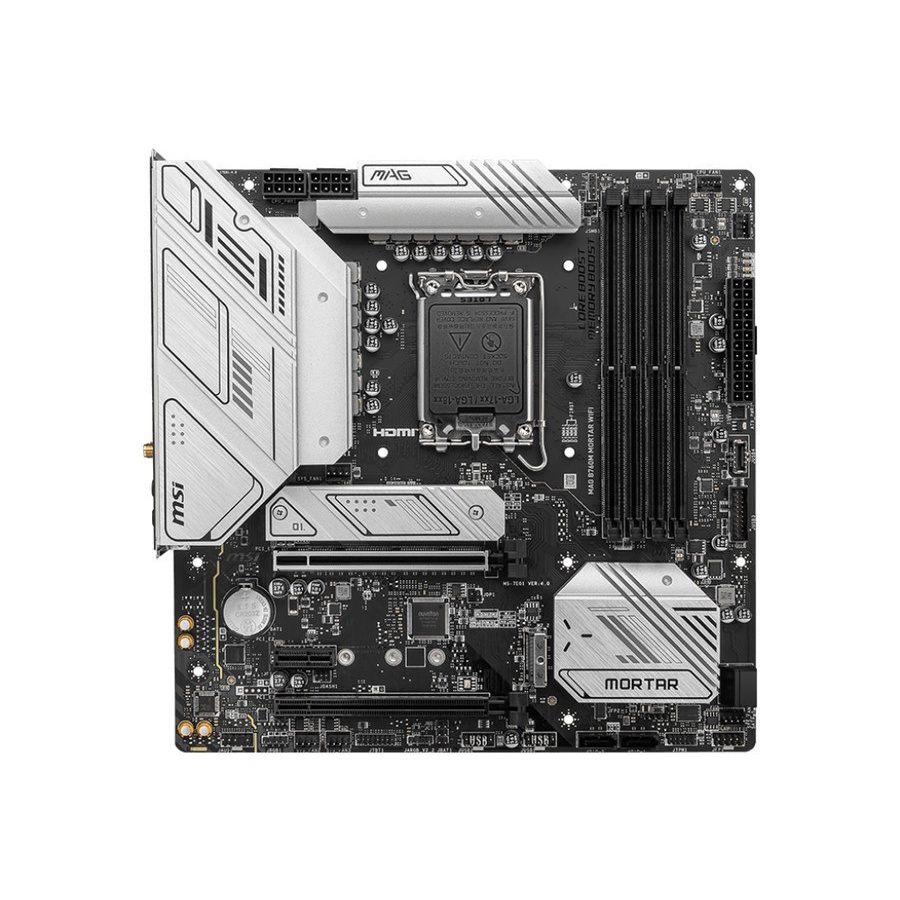

MSI MAG B760M MORTAR WIFI DDR5 (Intel LGA 1700, Gen12, Gen13)

Detail MSI MAG B760M MORTAR WIFI DDR5 (Intel LGA 1700, Gen12, Gen13)

#GARANSI RESMI MSI 3TAHUN

CHIPSET
INTEL B760

CPU SUPPORT
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA1700

MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

ONBOARD GRAPHICS
1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

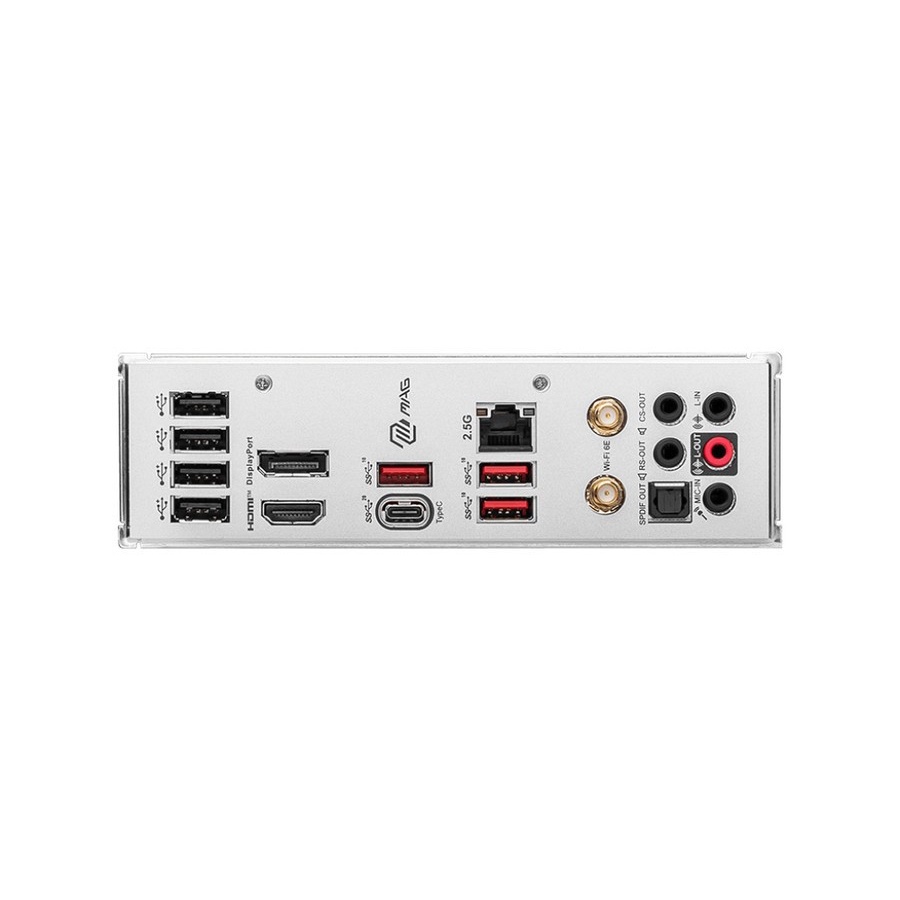

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek® 2.5Gbps LAN

WIRELESS / BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Win
