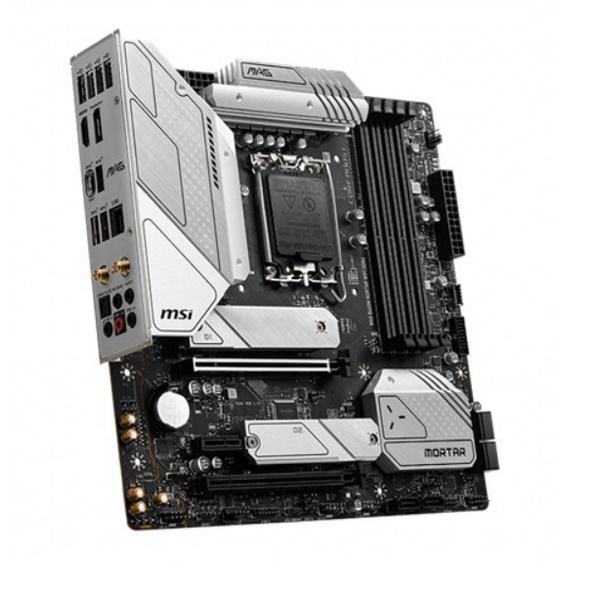

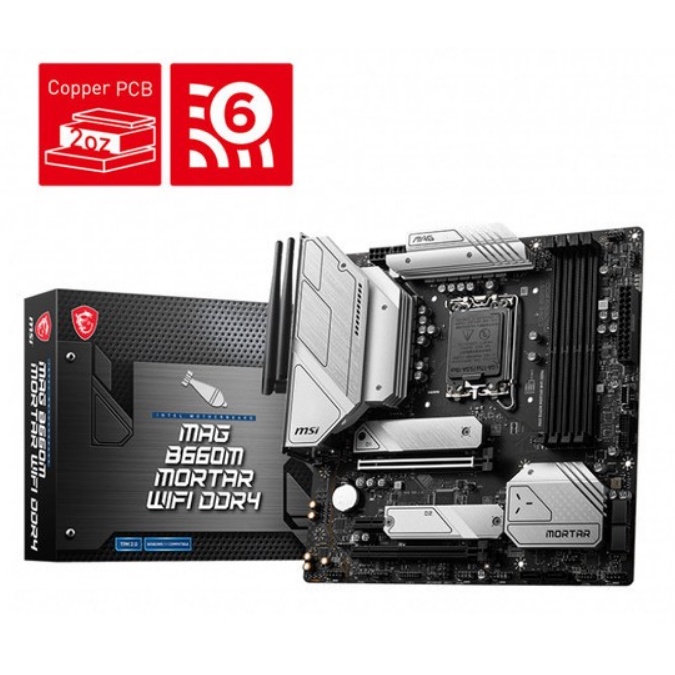

MSI MAG B660M Mortar Wifi DDR4 (LGA1700, B660, DDR4, USB3.2, SATA3)

Detail MSI MAG B660M Mortar Wifi DDR4 (LGA1700, B660, DDR4, USB3.2, SATA3)

MAG B660M MORTAR WIFI DDR4

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

SPECIFICATION :

CPU (Max Support) : i9
Socket : 1700
Chipset : Intel® B660 Chipset
DDR4 Memory : 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel : Dual
DIMM Slots : 4
Max Memory (GB) : 128
PCI-E x16 : 2
PCI-E x1 : 1
SATAIII : 6
M.2 Slot : 2
RAID : 0/1/5/10
LAN : 1x Realtek® 8125BG 2.5G LAN
WiFi & Bluetooth : Intel® Wi-Fi 6 module

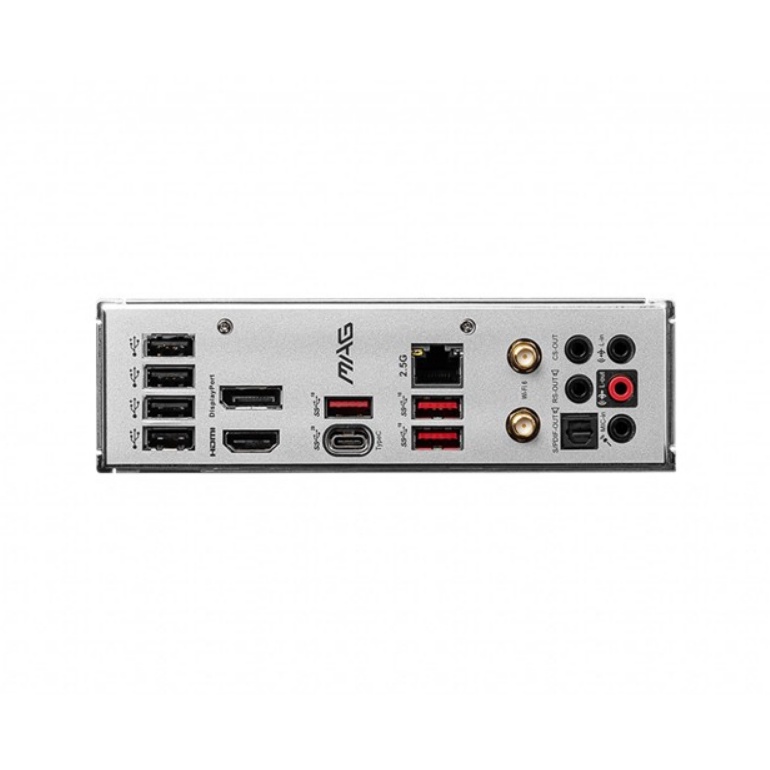

USB 3.2 ports (Front) : 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear) : 1(Gen 2x2, Type C), 3(Gen 2, Type A)
USB 2.0 ports (Front) : 4
USB 2.0 ports (Rear) : 4
Audio ports (Rear) : Realtek® ALC1200 Codec
DisplayPort : 1
HDMI : 1
DirectX : 12
Form Factor : mATX
CrossFire : Y
Operating System : Support for Windows® 11 64-bit, Windows® 10 64-bit
