MSI MAG B660M Mortar Wifi DDR4 (LGA1700, B660, DDR4, USB3.2, SATA3)

Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > MSI MAG B660M Mortar Wifi DDR4 (LGA1700, B660, DDR4, USB3.2, SATA3)
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail MSI MAG B660M Mortar Wifi DDR4 (LGA1700, B660, DDR4, USB3.2, SATA3)

MAG B660M MORTAR WIFI DDR4

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

SPECIFICATION :

CPU (Max Support) : i9
Socket : 1700
Chipset : Intel® B660 Chipset
DDR4 Memory : 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel : Dual
DIMM Slots : 4
Max Memory (GB) : 128
PCI-E x16 : 2
PCI-E x1 : 1
SATAIII : 6
M.2 Slot : 2
RAID : 0/1/5/10
LAN : 1x Realtek® 8125BG 2.5G LAN
WiFi & Bluetooth : Intel® Wi-Fi 6 module
USB 3.2 ports (Front) : 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear) : 1(Gen 2x2, Type C), 3(Gen 2, Type A)
USB 2.0 ports (Front) : 4
USB 2.0 ports (Rear) : 4
Audio ports (Rear) : Realtek® ALC1200 Codec
DisplayPort : 1
HDMI : 1
DirectX : 12
Form Factor : mATX
CrossFire : Y
Operating System : Support for Windows® 11 64-bit, Windows® 10 64-bit

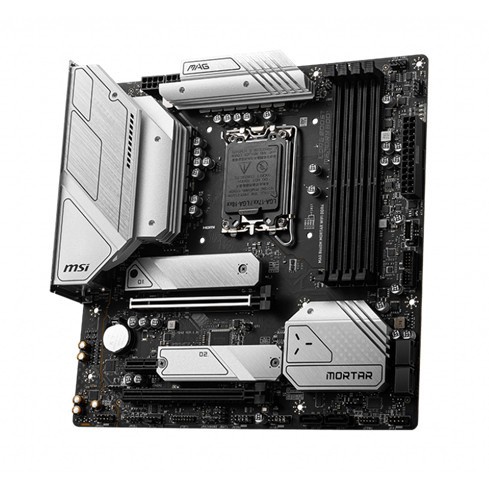

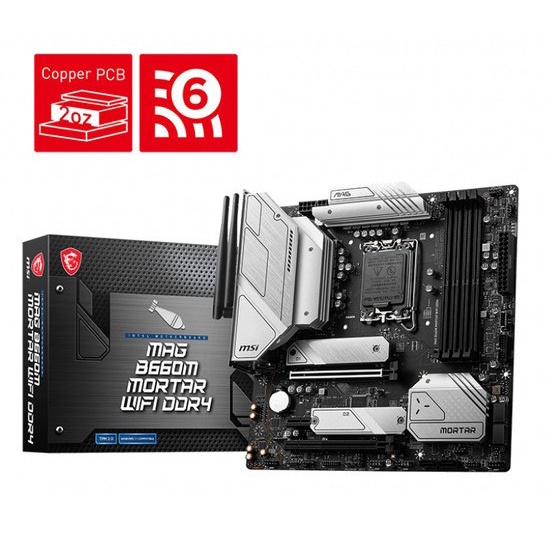

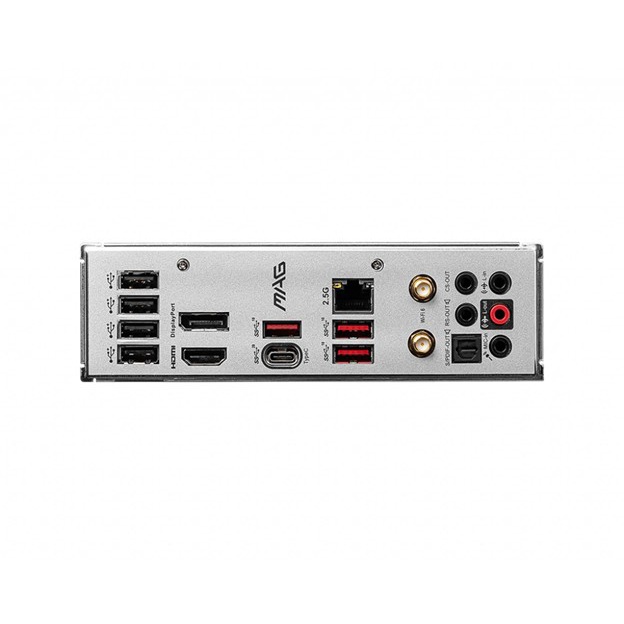

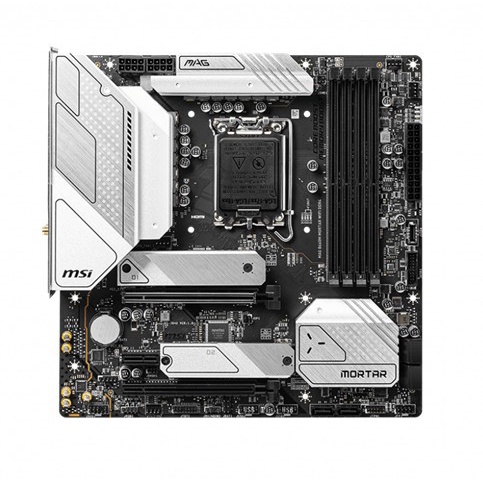

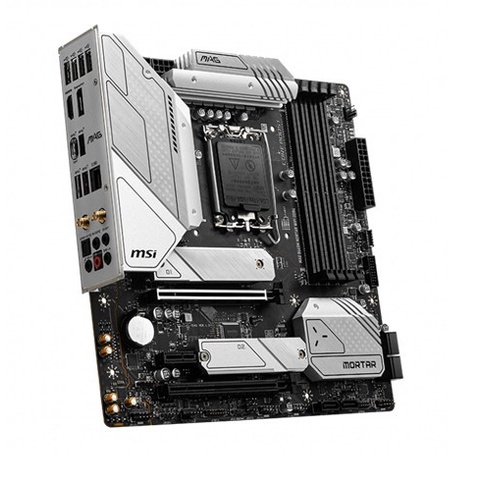

Gambar produk
