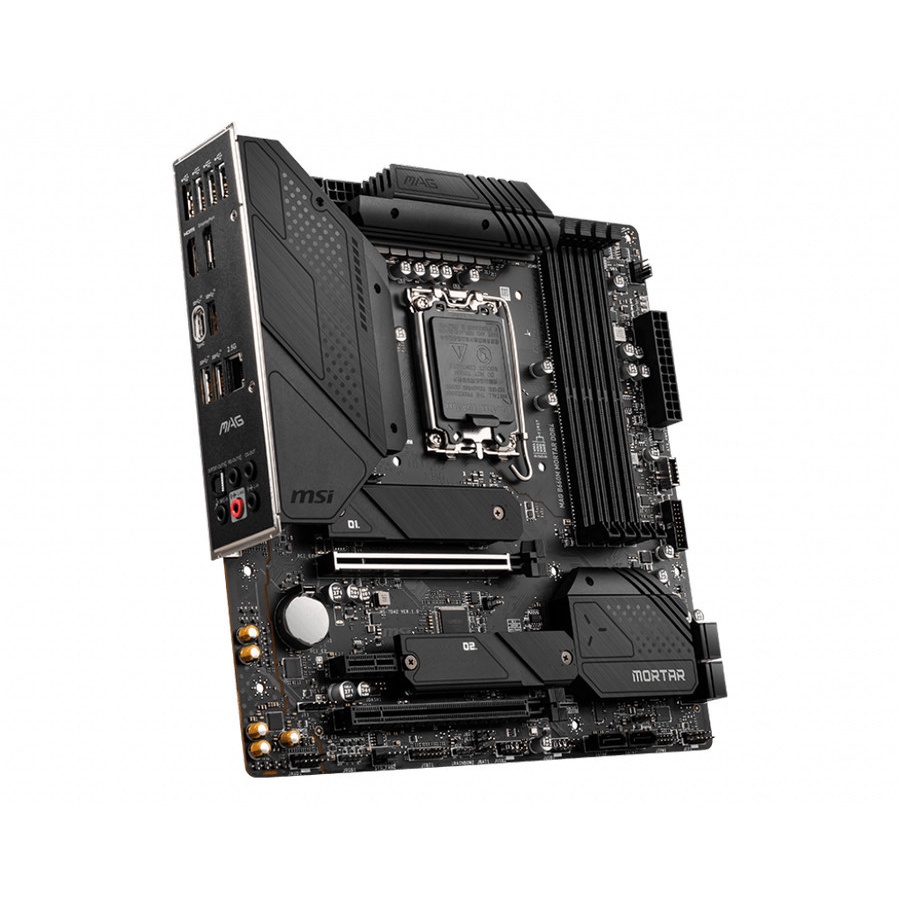

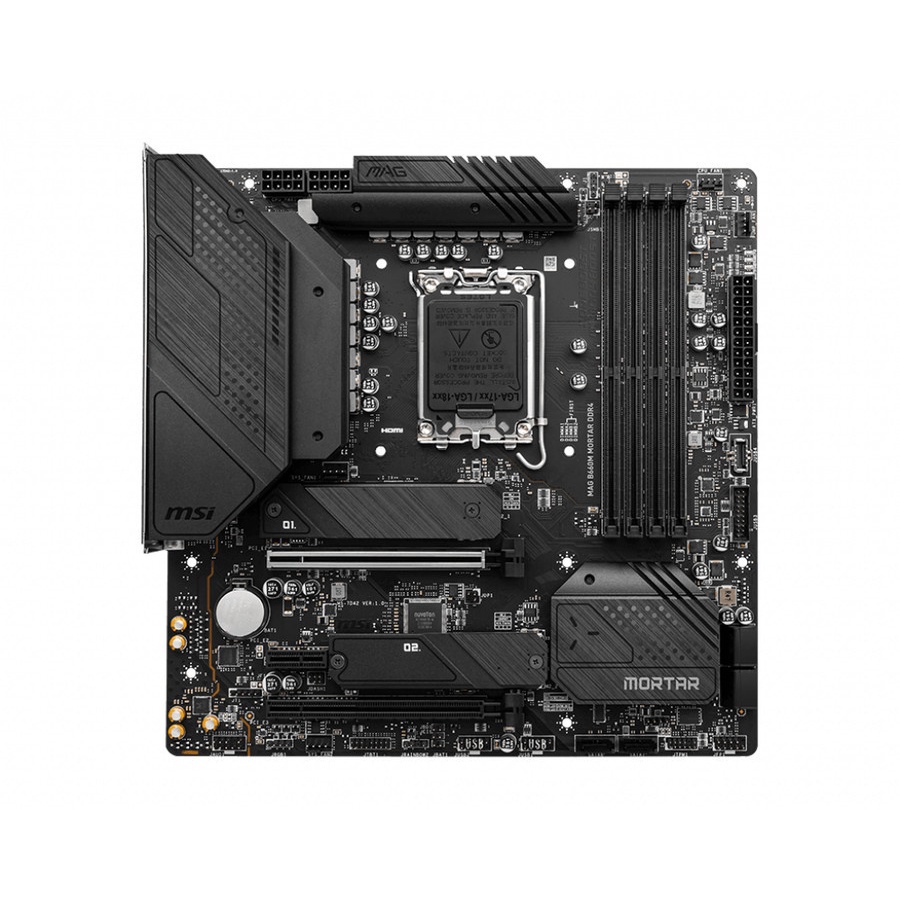

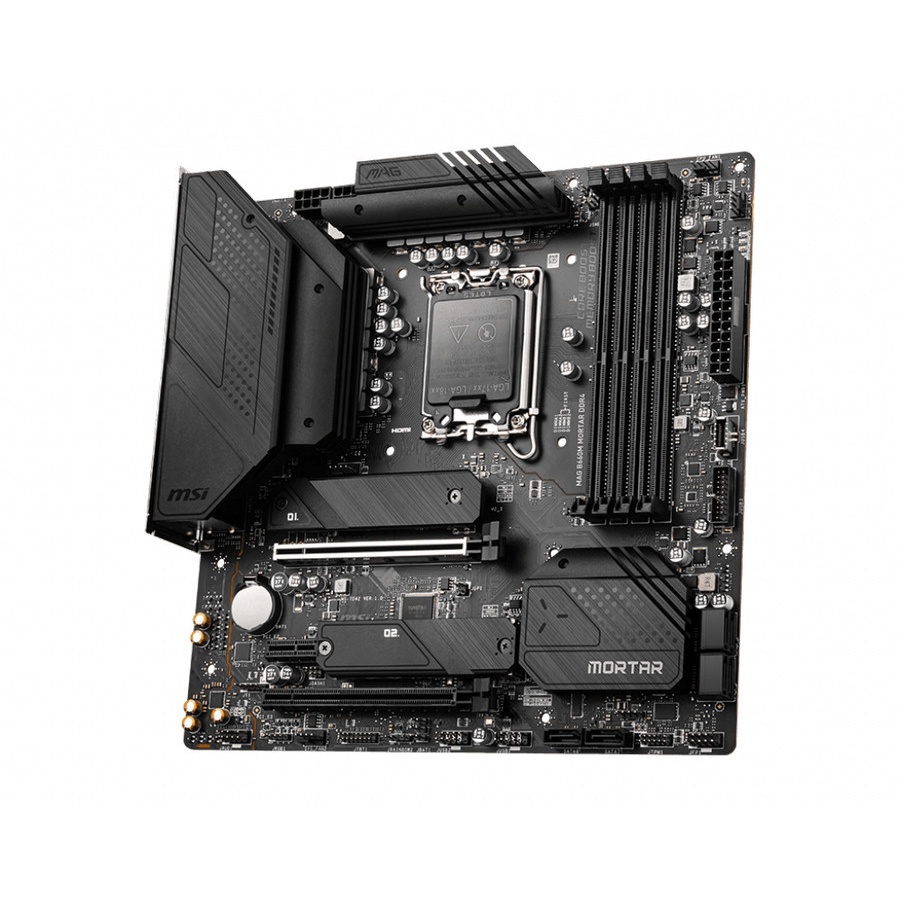

MSI MAG B660M MORTAR D4 DDR4 MOTHERBOARD mATX - LGA 1700 GEN 12 B660 LGA1700

Detail MSI MAG B660M MORTAR D4 DDR4 MOTHERBOARD mATX - LGA 1700 GEN 12 B660 LGA1700

GARANSI RESMI 3 TAHUN

Sebelum order dimohon kepada pembeli untuk menanyakan stock terlebih dahulu


Model Name MAG B660M MORTAR DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B660 Chipset
Graphics
Interface
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot
Supports AMD CrossFire™ Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4800+ (OC)
Expansion Slots 1x PCIe 3.0 x1 slot
Storage 2x M.2 Gen4 x4 64Gbps slots,
Support Intel® Optane™ Technology,
6x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C),
2x USB 3.2 Gen 1 5Gbps (Type-A),
8x USB 2.0
LAN 1x Realtek® 8125BG 2.5Gbps LAN
Audio 8-Channel (7.1) HD Audio

FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing
throttling, making them run faster.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.

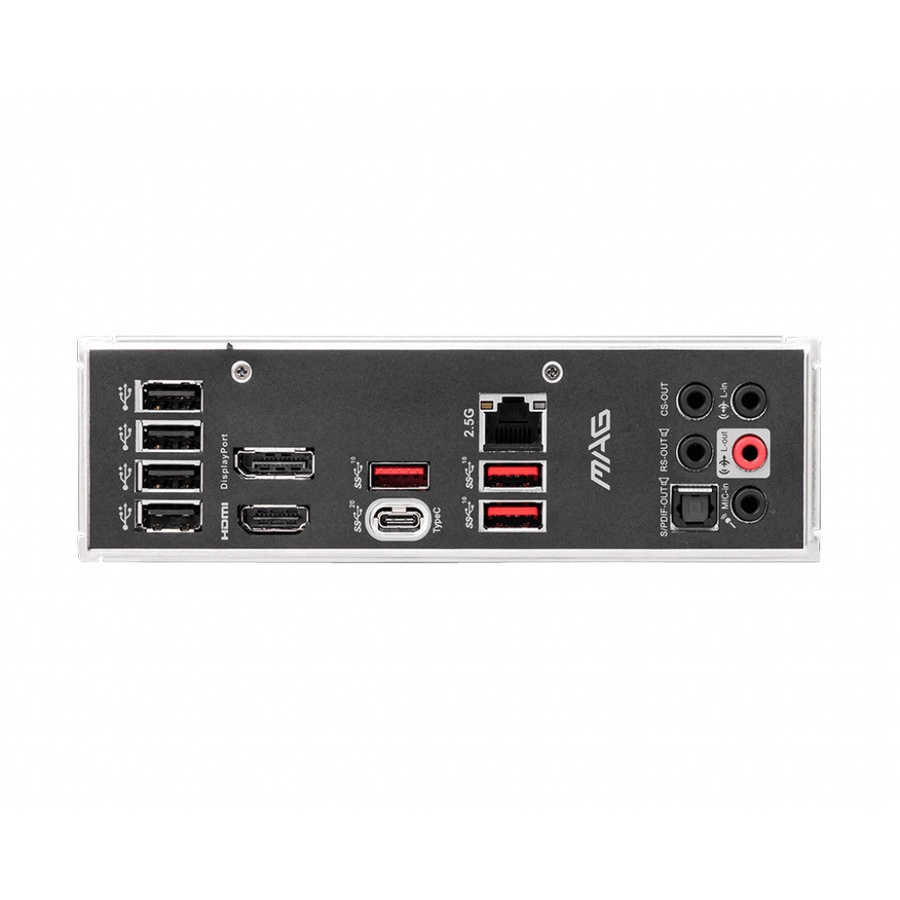

CONNECTIONS
1. USB 2.0 Port
3. USB 3.2 Gen 2 10Gbps Type-A
5. HD Audio Connectors
7. USB 3.2 Gen 2x2 20Gbps Type-C
2. DisplayPort 1.4
4. 2.5G LAN Port
6. HDMI 2.1 Port
8. Optical S/PDIF OUT

Gambar produk
