Detail MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
Product Name : MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
Brand : MSI
Model : MAG B550M Mortar
CPU Type : Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
Chipset : AMD B550
Memory Standard : 4x DDR4 DIMM, 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Up to 4400+
Maximum Memory Supported : Up to 128GB Dual Channel
Expansion Slots : 1x PCIe 3.0/ 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
SATA Port : 6x SATA 6Gb/s
M.2 : 2x M.2 slots (Key M)
Onboard Video Chipset : HDMI, DisplayPort (Available for the processor with integrated graphics)
Multi-GPU support : Supports 2-Way AMD CrossFire Technology
Audio Chipset : Realtek ALC1200
LAN Chipset : Realtek RTL8125B

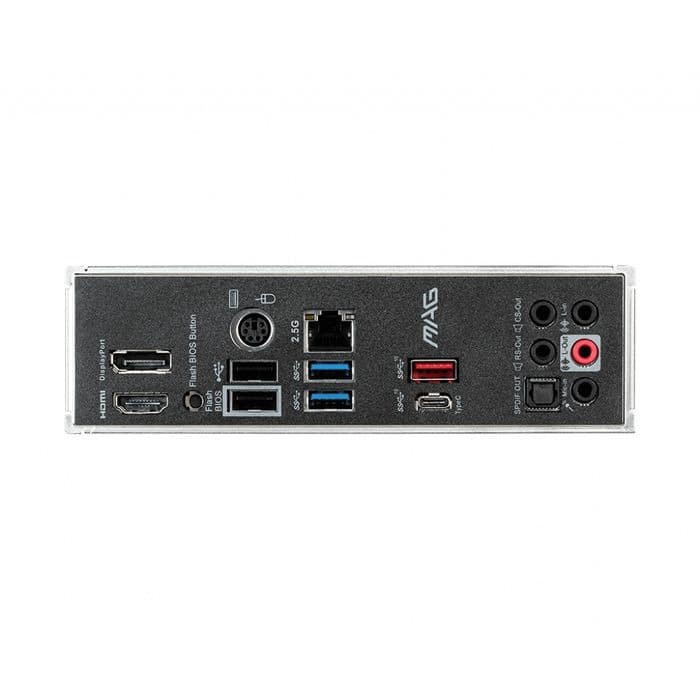

Rear Panel Ports : DisplayPort, PS/2 Combo, 2.5G LAN Port, USB3.2 Gen2, HD Audio Connectors, HDMI, Flash BIOS Button, USB 2.0, USB3.2 Gen1, USB3.2 Gen2 (Type-C), Optical S/PDIF OUT
Form Factor : Micro ATX (24.4 cm x 24.4 cm)
Warranty : 3 Years

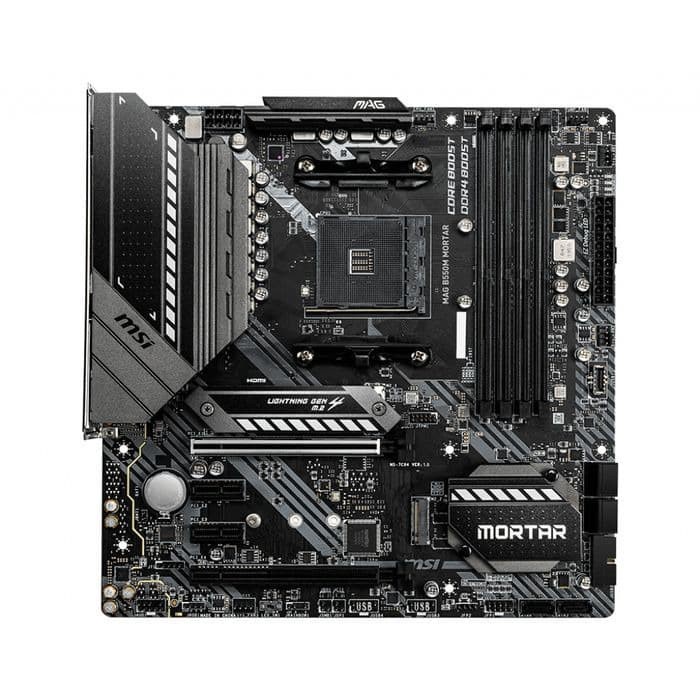

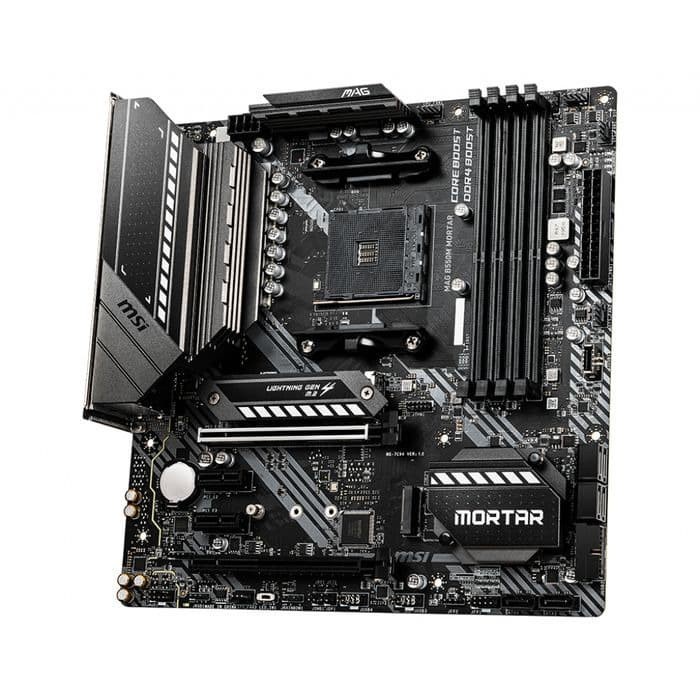

Gambar produk
MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
MSI MAG B550M Mortar (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
