MSI MAG B550 Tomahawk - AM4

Detail MSI MAG B550 Tomahawk - AM4

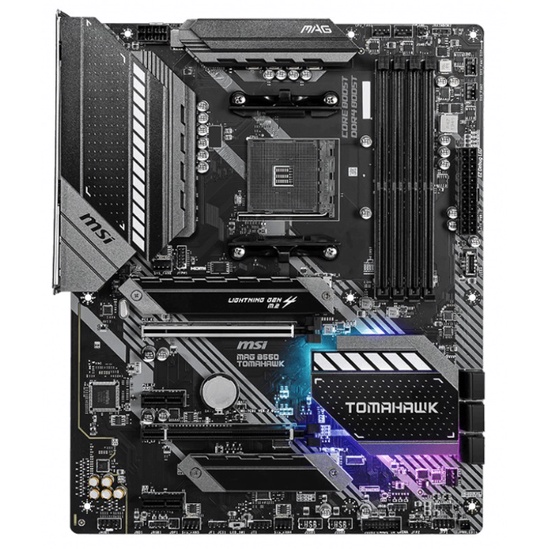

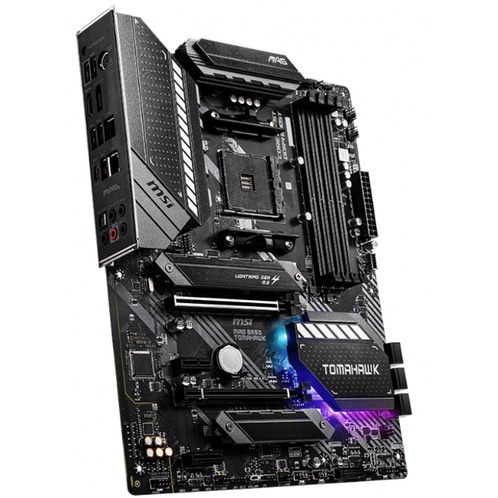

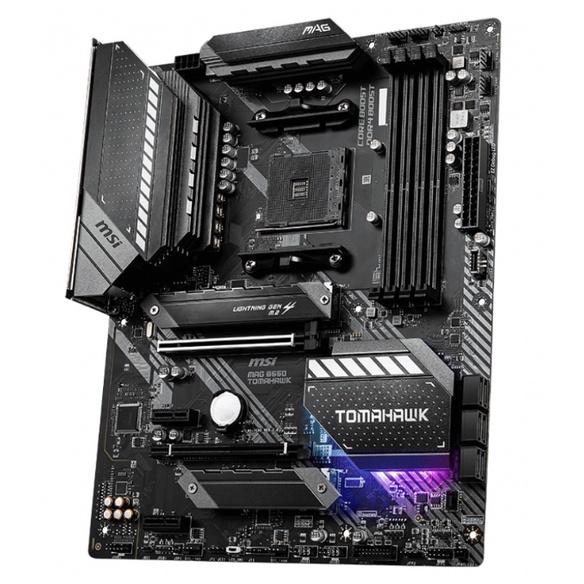

MAG B550 TOMAHAWK

-Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
-Supports DDR4 Memory, up to 5100+(OC) MHz
-Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
-Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
-Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
-Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
-Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
-Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
-Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
-Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™

DDR4 MEMORY : 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

MAX MEMORY (GB) : 128
PCI-E X16 : 2
PCI-E X1 : 2
SATAIII : 6
M.2 SLOT : 2
RAID : 0/1/10
LAN : 1x Realtek® RTL8125B 2.5G LAN + 1x Realtek® RTL8111H 1G LAN
USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)

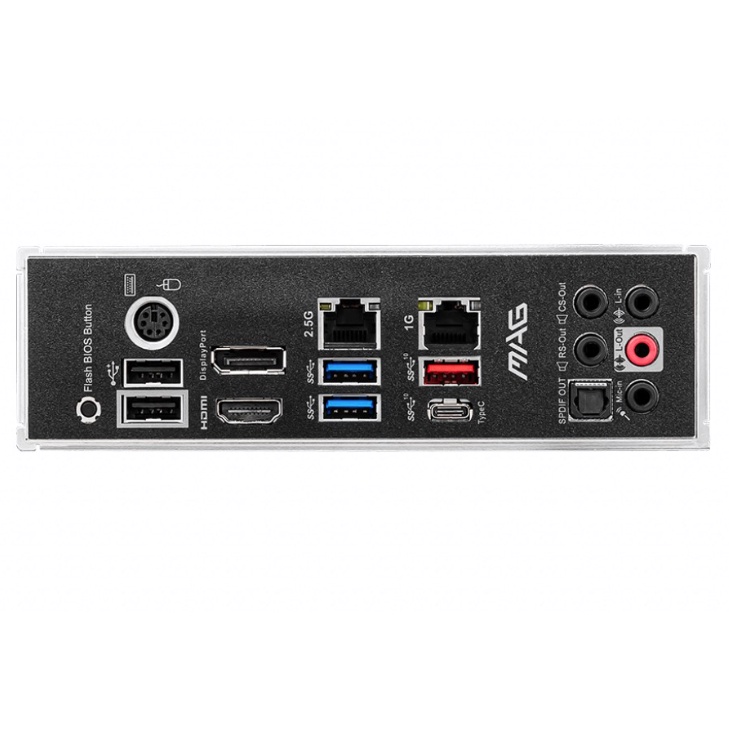

USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC1200 Codec)
HDMI : 1
DISPLAYPORT : 1
