MSI H410M PRO-E Motherboard (DDR4, LGA1200)

Processor : Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket
Onboard graphics output are disabled when using F SKU processors.
Chipset : Intel® H410 Chipset
Memory
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Storage
Intel® H410 Chipset
4x SATA 6Gb/s ports
USB
Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN : 1x Realtek R1111H Gigabit LAN controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

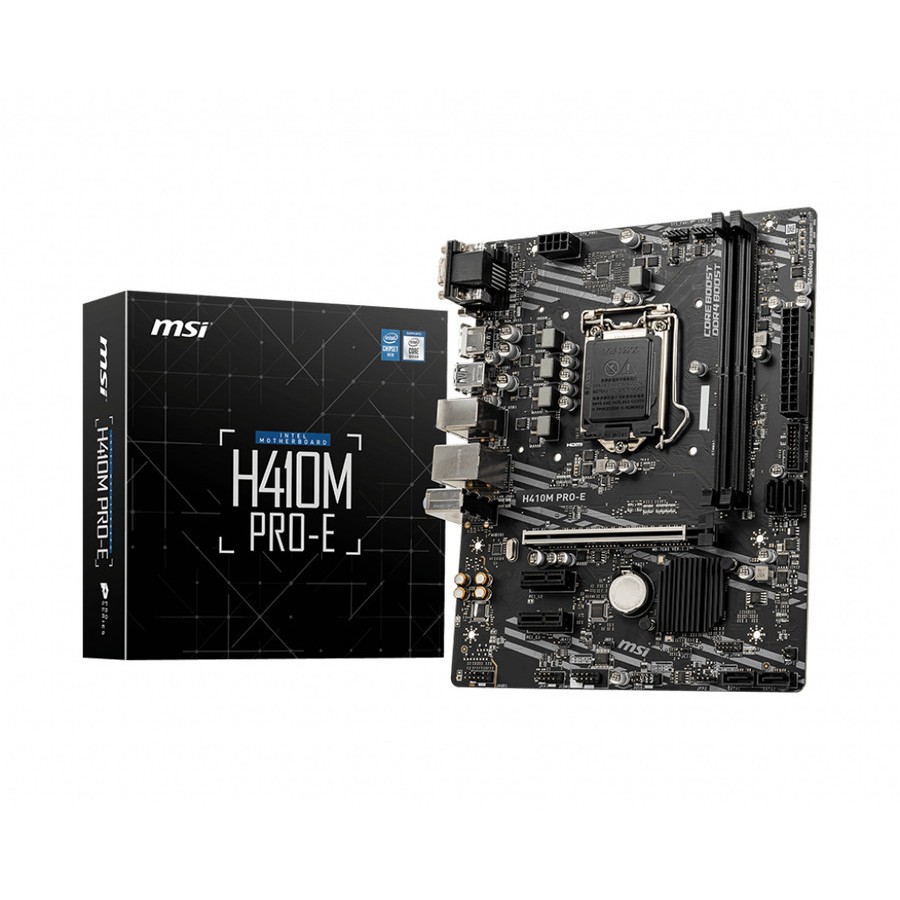

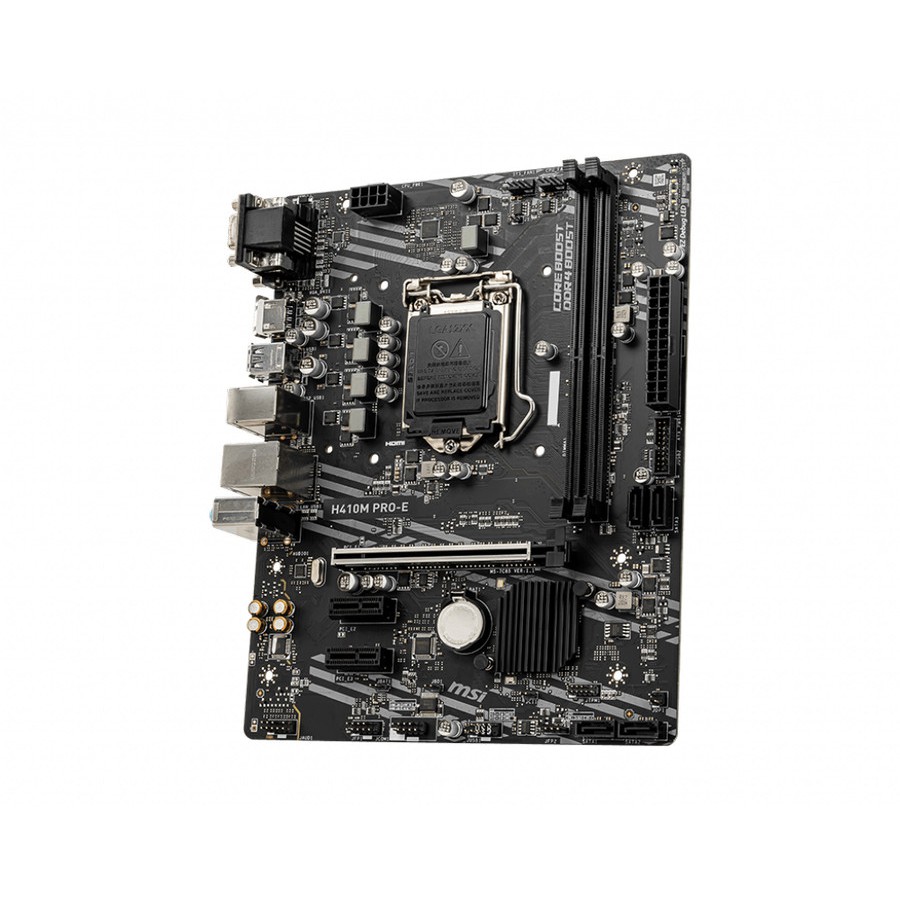

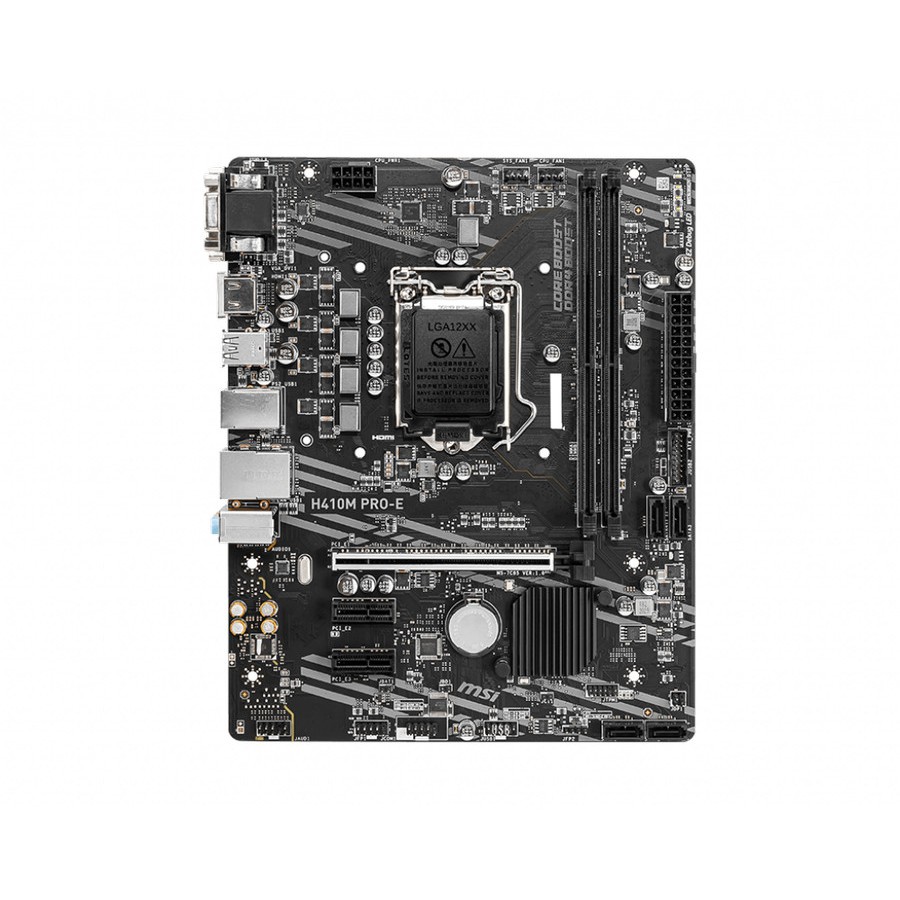

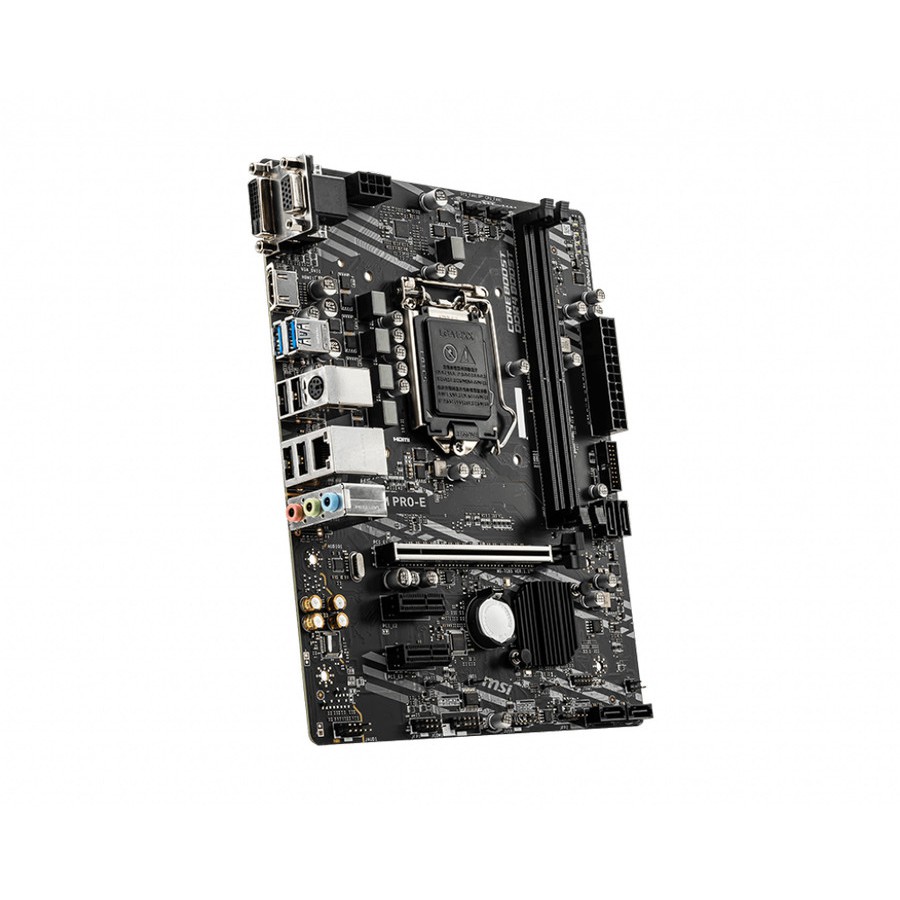

Gambar produk
