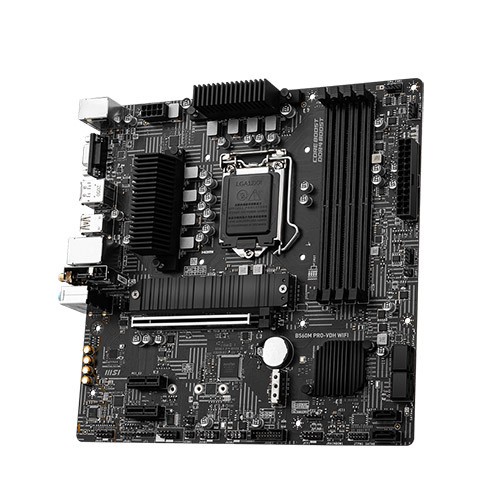

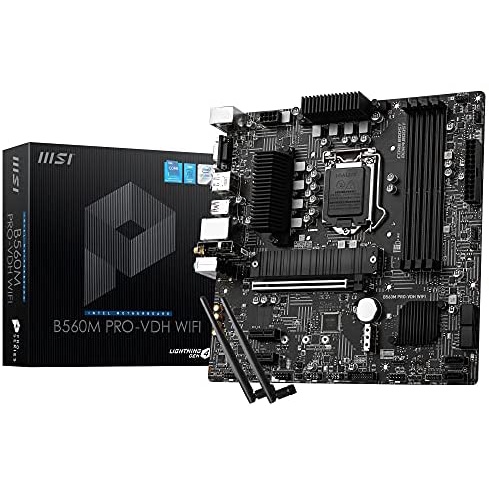

MSI B560M PRO - VDH WIFI Motherboard Intel B560 LGA 1200 Micro ATX

Detail MSI B560M PRO - VDH WIFI Motherboard Intel B560 LGA 1200 Micro ATX

Model: B560M PRO
Series: PRO
Socket: LGA 1200
Form factor: Micro ATX
Chipset: Intel B560
Supported Memory DDR4:
2133Mhz, 2400Mhz, 2666Mhz, 2933Mhz, 3000Mhz, 3200Mhz, 3333Mhz, 3466Mhz, 3600Mhz, 3733Mhz, 4000Mhz, 4266Mhz, 4400Mhz, 4600Mhz, 4700Mhz, 5200Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller

Audio Chipset: Realtek ALC897
Audio Channels: 7.1-Channel High Definition Audio
LAN Chipset: 1 x Realtek 8125B 2.5Gbps LAN controller
Max LAN Speed: 2.5Gbps
Back I/O Ports:
1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
1 x PS/2 Keyboard/Mouse Combo
2 x USB 2.0/1.1
3 x Audio Jacks
4 x USB 3.1 Gen 1 Type-A

PCI-Express x16 Slots: 1
PCI-Express x4 Slots: 0
PCI-Express x1 Slots: 2
SATA 6 Gbps Ports: 6
SATA Express Ports: 0
M.2 Ports: 1
M.2 Devices support: 2242 / 2260 / 2280 - M Key
RAM Slots: 2
Maximum Supported RAM: 64GB
Onboard USB 2.0: 2
Onboard USB 3.2 Gen 1: 1
Onboard USB 3.2 Gen 2: 0

Garansi Resmi 3 Tahun
