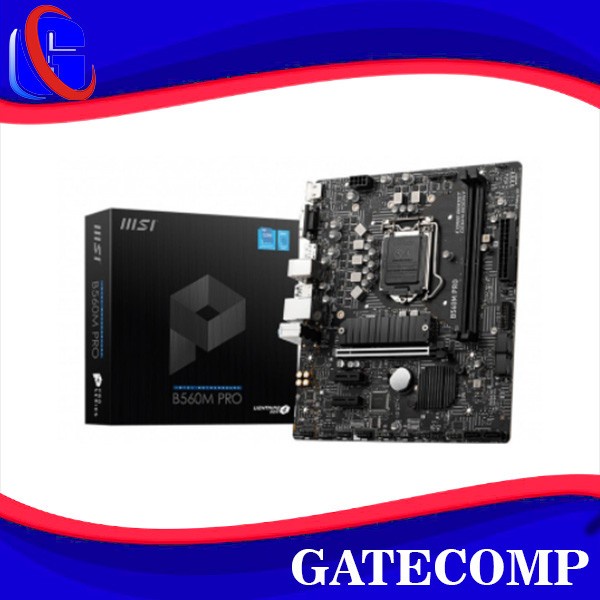

MSI B560M PRO Motherboard (DDR4, LGA1200)

Detail MSI B560M PRO Motherboard (DDR4, LGA1200)

MSI B560M PRO Motherboard (DDR4, LGA1200)

CPU
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
Chipset : Intel® B560 chipset
Memory :
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200 MHz
1DPC 2R Max speed up to 4700+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)
Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® 8125B 2.5Gbps LAN controller
Storage
6x SATA 6Gb/s ports (From B560 chipset)
1x M.2 slot (Key M)1
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology
Intel® Optane™ Memory Ready.
USB
6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
6x USB 3.2 Gen 1 5Gbps ports
mATX form factor

Garansi Resmi

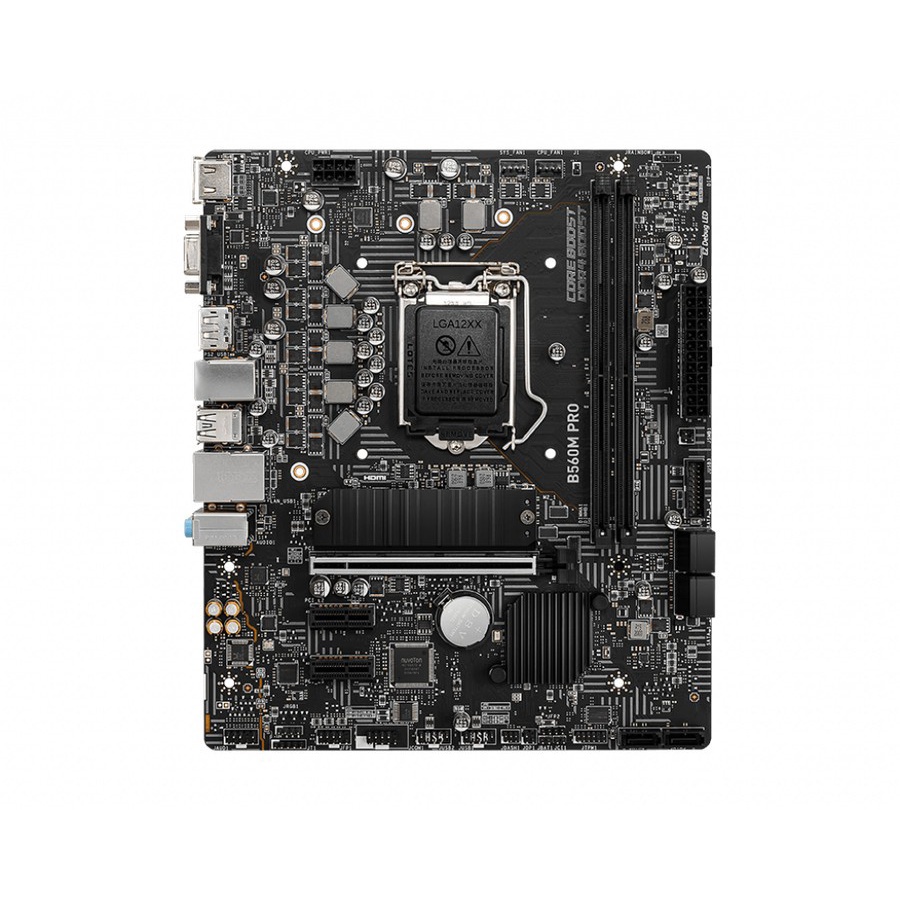

Gambar produk
