MSI B450M PRO-M2 MAX AMD B450 AM4 DDR4 Micro ATX

Detail MSI B450M PRO-M2 MAX AMD B450 AM4 DDR4 Micro ATX

Deskripsi MSI B450M PRO-M2 MAX AMD B450 AM4 DDR4 Micro ATX Motherboard
FEATURES
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Audio Boost: Reward your ears with studio grade sound quality
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
PCI-E Steel Slot: Protecting VGA cards against bending

TECH SPECS
SOCKET: AM4
CPU (MAX SUPPORT): RYZEN 9
CHIPSET: AMD® B450 Chipset
DDR4 MEMORY: 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 32
PCI-E X16: 1
PCI-E GEN: Gen3
PCI-E X1: 2
SATAIII: 4
M.2 SLOT: 1
TPM (HEADER): 1
LAN: 1x Realtek® 8111H Gigabit LAN controller
USB 3.2 POUSB 3.2 PORTS (REAR): 4(Gen1) Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 2
SERIAL PORTS(FRONT): 1
PARALLEL PORT(FRONT): 1
AUDIO PORTS (REAR): Realtek® ALC887 Codec
DVI-D: 1
VGA: 1
HDMI: 1
DIRECTX: 12
FORM FACTOR: m-ATX
OPERATING SYSTEM: Support for Windows® 10 64-bit; Support for Windows® 7 64-bit (To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU)RTS (FRONT): 2(Gen1, Type A)

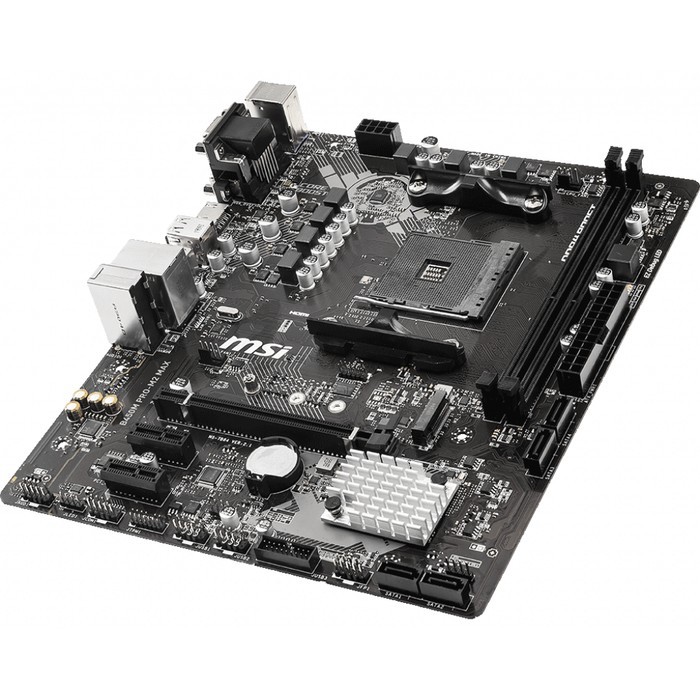

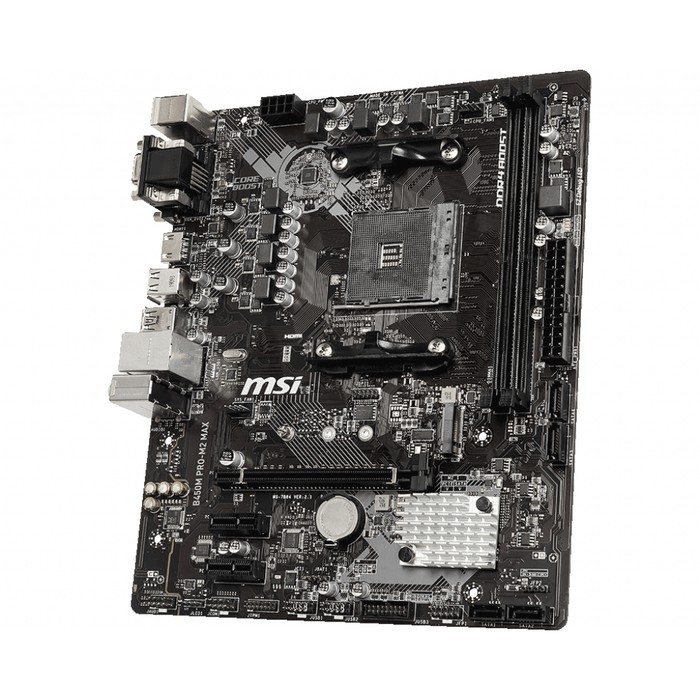

Gambar produk
