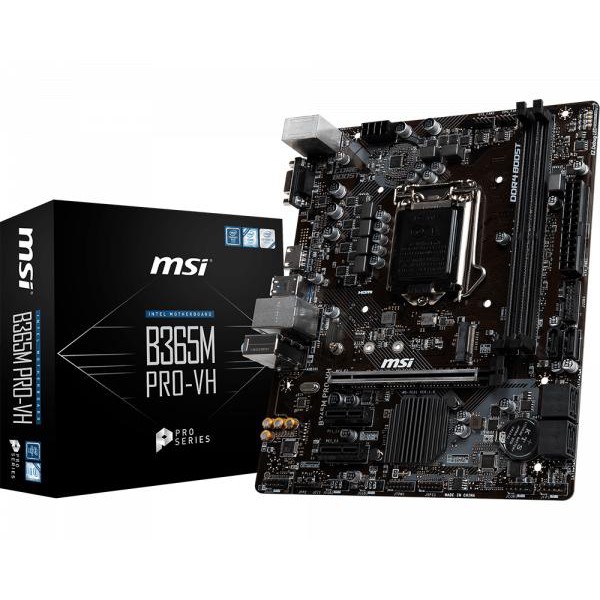

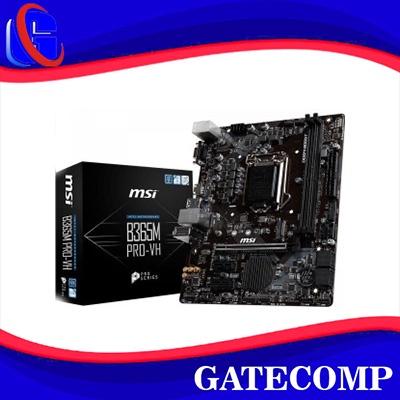

MSI B365M PRO-VH Intel B365 Motherboard

Detail MSI B365M PRO-VH Intel B365 Motherboard

Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost and EZ Debug LED:

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666 MHz | Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. | Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. | Audio Boost: Reward your ears with studio grade sound quality. | EZ Debug LED: Easiest way to troubleshoot. | X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

SPECIFICATION:

Model Name B365M PRO-VH | CPU Support Supports 9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors | CPU Socket LGA 1151 | Chipset Intel® B365 Chipset | Graphics Interface 1 x PCI-E 3.0 x16 slot | Display Interface VGA, HDMI– Requires Processor Graphics *No Display support when using the Processor model with suffix “F” | Memory Support 2 DIMMs, Dual Channel DDR4 up to 2666
Expansion Slots 2 x PCI-E x1 slots | Storage 1 x M.2 slot, supports Intel® Optane™ Technology 6 x SATA 6Gb/s | USB ports 6 x USB 3.1(Gen1) + 6 x USB 2.0 | LAN Realtek® 8111H Gigabit LAN | Audio 8-Channel (7.1) HD Audio with Audio Boost.
CONNECTIONS:

1. PS/2 Combo
2. VGA Port
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Ports
6. HDMI Port
7. USB 3.1 Gen1 Ports
