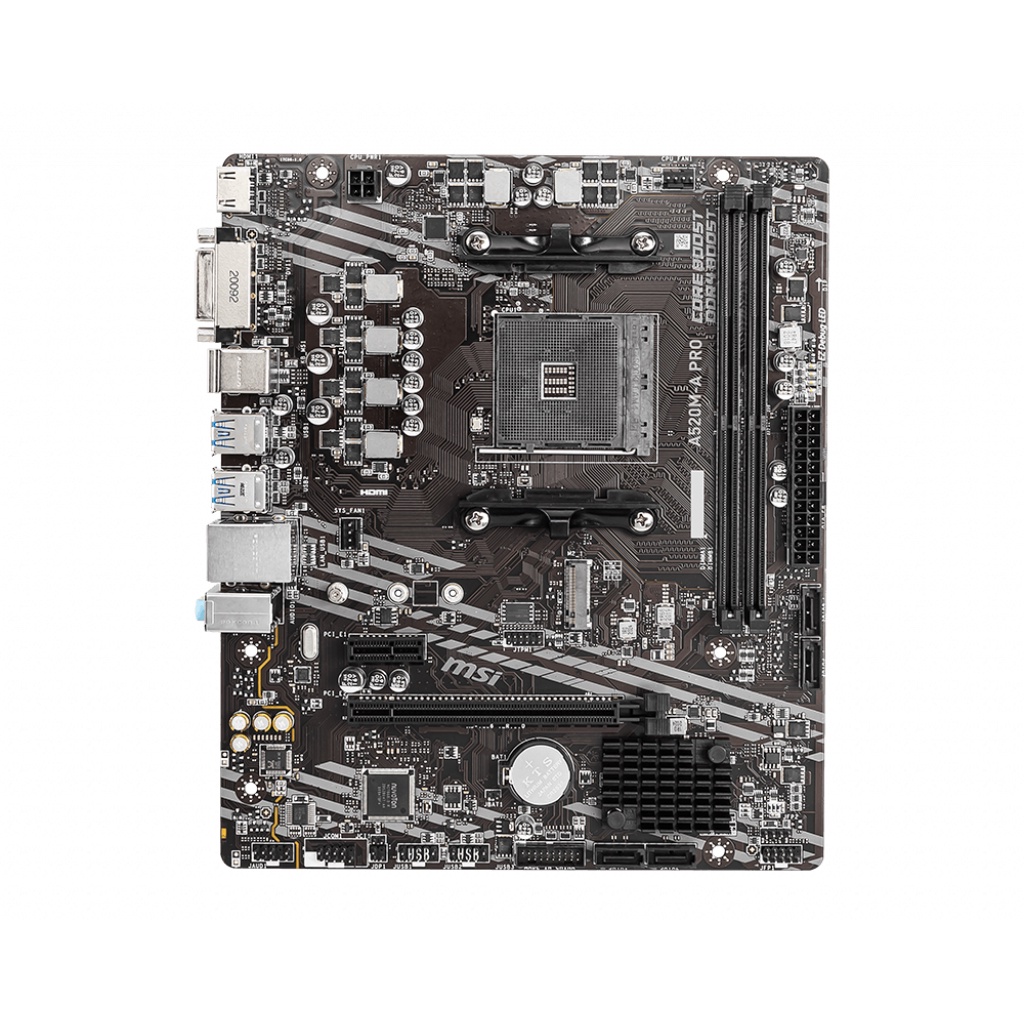

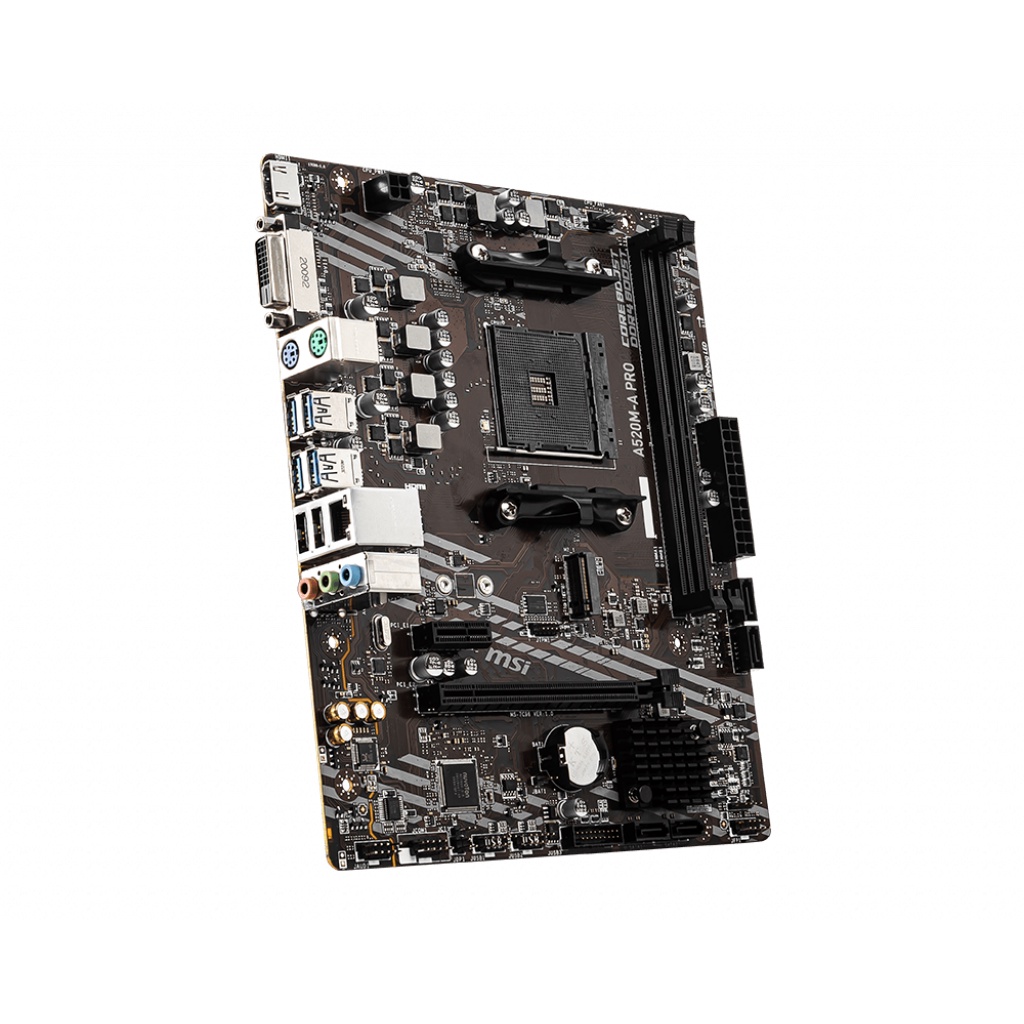

Detail MSI A520M-A PRO AMD AM4, A520, DDR4 Motherboard
SPECIFICATION :
CPU (Max Support)
Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Socket
AMD Socket AM4
Chipset
AMD® A520 Chipset
DDR4 Memory
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
Memory Channel
Dual
DIMM Slots
2
Max Memory (GB)
64
PCI-E x16
1
PCI-E Gen
Gen3
PCI-E x1
1
SATAIII
4
M.2 Slot
1
RAID
0/1/10
TPM (header)
1
LAN
1x Realtek® RTL8111H Gigabit LAN
USB 3.2 ports (Front)
2(Gen 1, Type A)
USB 3.2 ports (Rear)
4(Gen 1, Type A)
USB 2.0 ports (Front)
4
USB 2.0 ports (Rear)
2(Type A)
Serial ports(Front)
1
Audio ports (Rear)
Realtek® ALC892/ALC897 Codec
DisplayPort
1
VGA
1
HDMI
1
DirectX
12
Form Factor
M-ATX
Operating System
Support for Windows® 10 64-bit
