MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)

Merek: MSI | Lihat selengkapnya produk Komputer & Aksesoris dari MSI
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)

Garansi Resmi 3 Tahun
Silakan Komfirmasi Persediaan Stok Barang Sebelum Melakukan pembelian
Trimaksih...

Chipset

AMD A520 Chipset
Memory

2x DDR4 memory slots, support up to 64GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

See supported memory
Expansion Slot

1x PCIe 3.0 x1 slot 1
1x PCIe x16 slot

The supported specification depends on installed processor.

Onboard Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
Maximum shared memory of 16 GB

Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Storage
AMD A520 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

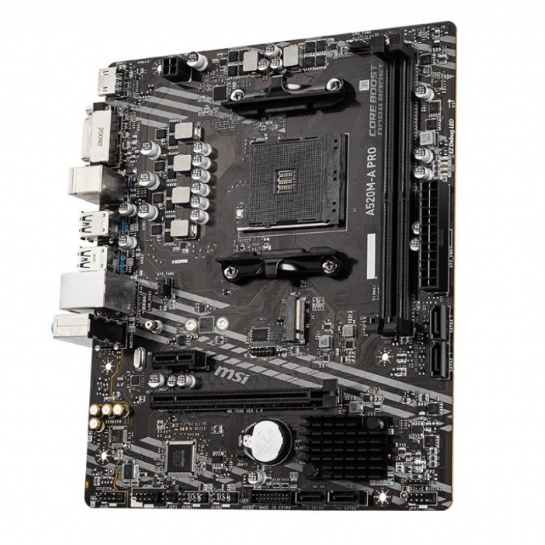

Gambar produk

MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)
MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)
MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)
MSI A520M-A Pro (AM4, A520, DDR4, USB 3.2, SATA3)
