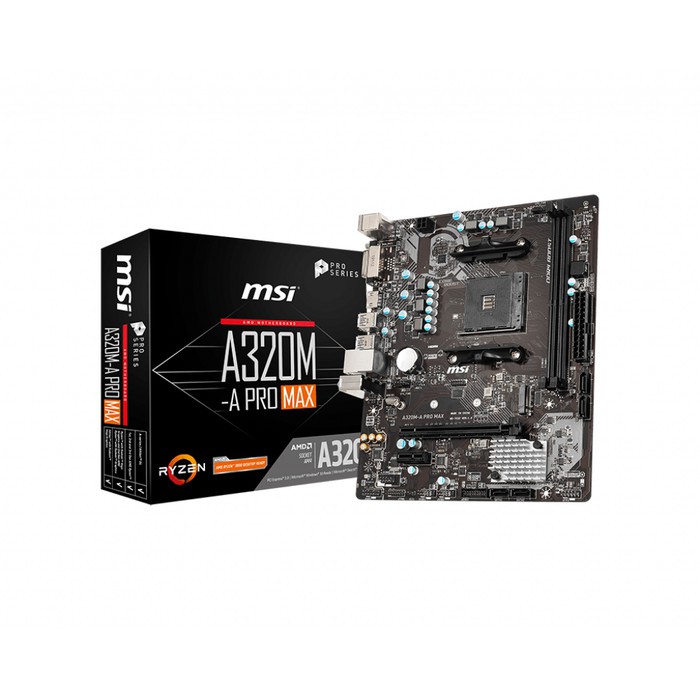

MSI A320M-A Pro MAX

Detail MSI A320M-A Pro MAX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
-Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
-Supports DDR4 Memory, up to 3200 (OC) MHz
-Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
-Audio Boost: Reward your ears with studio grade sound quality.
-X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
-Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.


SOCKET : AM4
CPU (MAX SUPPORT) : RYZEN
CHIPSET : AMD® A320 Chipset
DDR4 MEMORY :
1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
MEMORY CHANNEL : Dual
DIMM SLOTS : 2
MAX MEMORY (GB) : 32
PCI-E X16 : 1
PCI-E GEN : Gen3
PCI-E X1 : 1
SATAIII : 4
M.2 SLOT : 1
RAID : 0/1/10
TPM (HEADER) : 1
LAN : 1x Realtek® 8111H
USB 3.2 PORTS (FRONT) : 2(Gen1, Type A)
USB 3.2 PORTS (REAR) : 4(Gen1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR) : Realtek® ALC892 Codec
DVI-D : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR : m-ATX
OPERATING SYSTEM :
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
