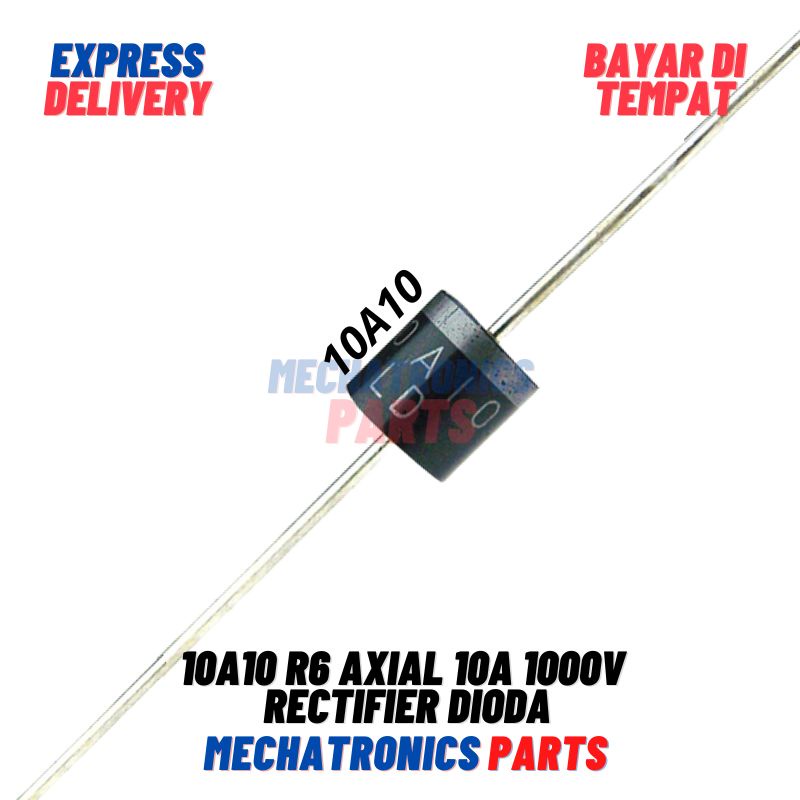

MS 10A10 R6 AXIAL 10A 1000V RECTIFIER DIODE DIODA
Deskripsi singkat
Hobi & Koleksi > Alat & Aksesoris Musik > Aksesoris Musik > MS 10A10 R6 AXIAL 10A 1000V RECTIFIER DIODE DIODA
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail MS 10A10 R6 AXIAL 10A 1000V RECTIFIER DIODE DIODA
SMC-0020========
Deskripsi:
===============================
Dioda yang bisa ngalirin arus sampe 10A nih gan. Forward voltage nya cuman 1.1V, Bisa dipake pada rangkaian power supply atau solar panel.
Features:
===============================
- Diffused Junction
- Low Forward Voltage Drop
- High Current Capability
- High Reliability
- High Surge Current Capability
Specifications :
===============================
- Package / Case: R-6
- Vr - Reverse Voltage: 1000 V
- If - Forward Current: 10 A
- Configuration: Single
- Vf - Forward Voltage: 1.1 V
- Max Surge Current: 400 A
- Ir - Reverse Current: 10 uA
- Packaging: Reel
- Series: 10A
- Height: 9.1 mm (Max)
- Length: 9.1 mm (Max)
- Maximum Operating Temperature: + 150 C
- Minimum Operating Temperature: - 55 C
- Operating Temperature Range: - 55 C to + 150 C
- Factory Pack Quantity: 800
- Type: Switching Diode
- Width: 9.1 mm (Max)
Paket :
===============================
- 1x 10A10 R6 AXIAL 10A 1000V RECTIFIER DIODE
Order yg kami terima minimal Rp.5.000 diluar ongkir, di bawah Rp.5.000 tidak akan kami proses, order diatas Rp.5.000 akan kami proses.
