Mq 6 Mq6 Lpg Lng Butane Gas Sensor Module For Arduino Uno Mega

Detail Mq 6 Mq6 Lpg Lng Butane Gas Sensor Module For Arduino Uno Mega

HARAP BACA DESKRIPSI

barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi.
tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi.membeli berarti setuju dengan ketentuan ini.

Description :
Sensitive material MQ-6 gas sensor is used to clean the air in the lower Conductivity of tin dioxide (SnO2). When there is the environment in which the combustible gas sensor , conductivity sensor with increasing concentration of combustible gases in air increases . Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-6 gas sensor for propane , butane , liquefied petroleum gas sensitivity is high, natural gas and has a good sensitivity. This sensor can detect a variety of flammable gas , is a low-cost sensors for a variety of applications

Suitable for home or industrial LPG ( liquefied petroleum gas ) , butane , propane , LNG ( liquefied natural gas ) detection devices. Excellent resistance to ethanol vapor , smoke interference

Module Features :
1. using high-quality dual-panel design, with power indicator and TTL signal output instructions;
2. the switching signal having a DO (TTL) output and analog output AO ;
3. TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
4. 0 ~ 5V analog output voltage , the higher the concentration the higher the voltage .
5. propane , butane , LPG, LNG has a good detection sensitivity.
6. there are four screw holes for easy positioning ;
7. Product dimensions : 32 (L) * 20 (W) * 22 (H)
8. has a long life and reliable stability
9. rapid response and recovery characteristics

*PERHATIAN

Foto produk dan produk asli bisa berbeda, tergantung stok.
Tetapi secara fungsi tetap sama, membeli berarti setuju dengan ketentuan tersebut.


INGIN PENGIRIMAN ANDA LANCAR?

MOHON PASTIKAN ALAMAT SUDAH LENGKAP:
NAMA JALAN, NOMOR RUMAH, RT/RW, NO HP AKTIF


SELAMAT BERBELANJA

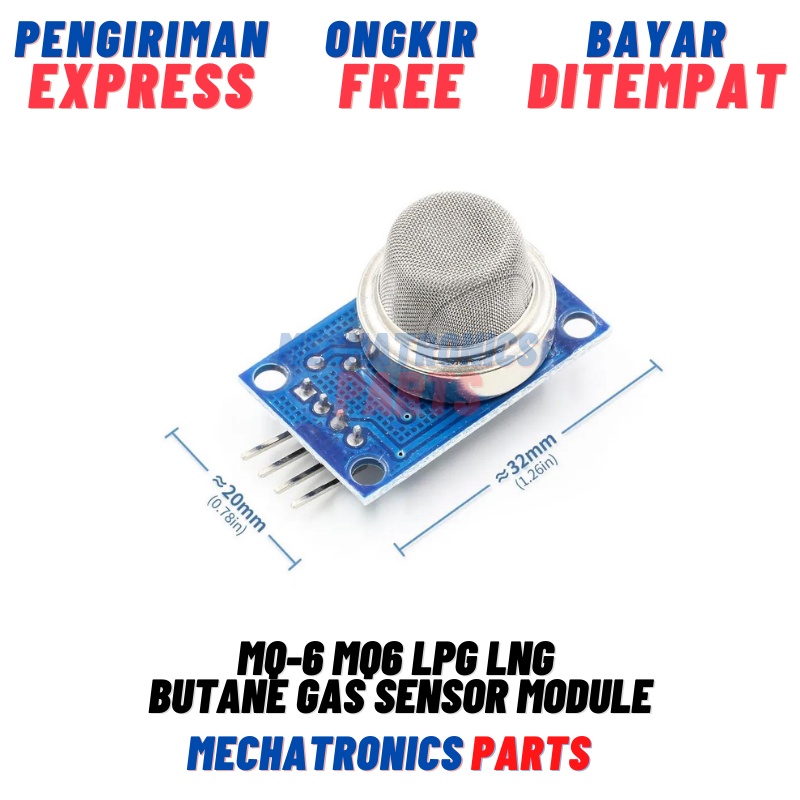

Gambar produk
