MPX5500DP pressure Sensor Tekanan Udara

Detail MPX5500DP pressure Sensor Tekanan Udara

The MPX5500 series piezoresistive transducer is a stateoftheart monolithic silicon
pressure sensor designed for a wide range of applications, but particularly those
employing a microcontroller or microprocessor with A/D inputs. This patented, single
element transducer combines advanced micromachining techniques, thinfilm metalliza-
tion, and bipolar processing to provide an accurate, high level analog output signal that
is proportional to the applied pressure.
Features

2.5% Maximum Error over 0

to 85

C

Ideally suited for Microprocessor or MicrocontrollerBased Systems

Patented Silicon Shear Stress Strain Gauge

Durable Epoxy Unibody Element

Available in Differential and Gauge Configurations

Datasheets MPX5500 Series
MPX5500 Series
Standard Package aeProduct.getSubject() 500
Category Sensors, Transducers
Family Pressure Sensors, Transducers
Series MPX5500
Pressure Type Differential
Operating Pressure 72.52 PSI (500 kPa)
Output Type Analog Voltage
Output 0.2 V ~ 4.7 V
Accuracy 2.5%
Voltage - Supply 4.75 V ~ 5.25 V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 406.11 PSI (2800 kPa)
Operating Temperature -40C ~ 125C
Package / Case 6-SIP Module
Supplier Device Package -
Online Catalog MPX5500 Series
Other Names Q1680272

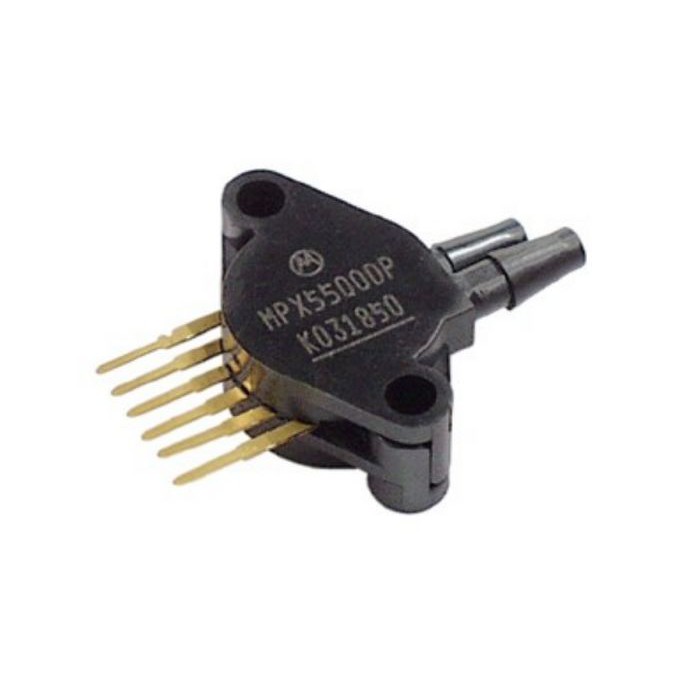

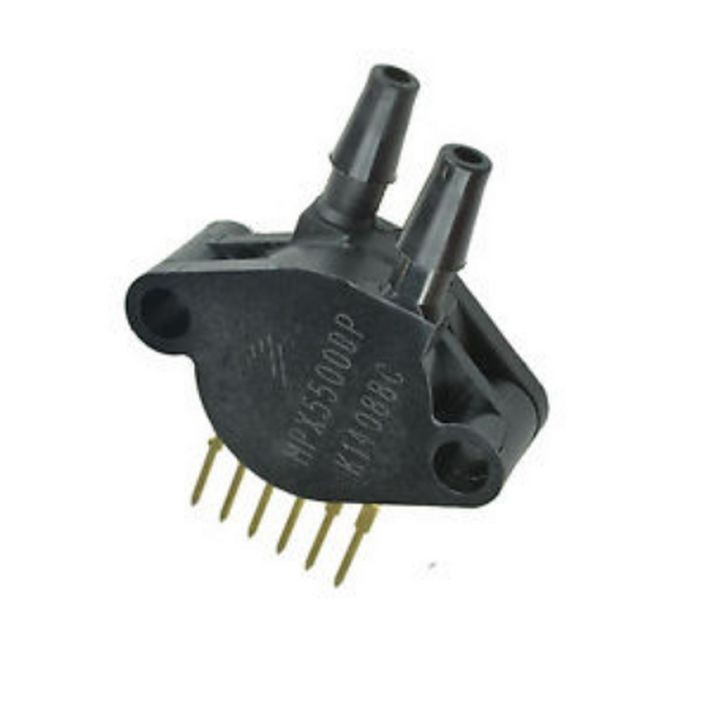

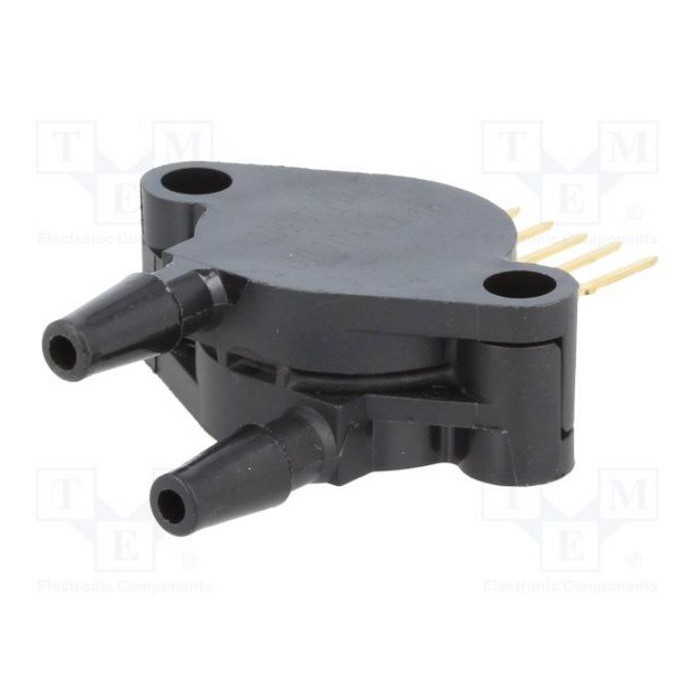

Gambar produk
