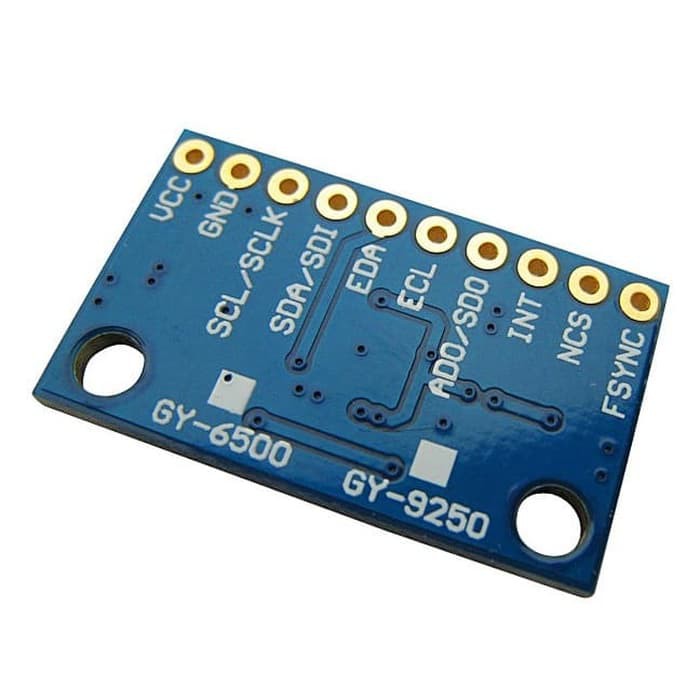

Detail MPU-6500 GY-6500 6 Axis Accelerometer & Gyrometer Sensor Module
MPU-6500 GY-6500 6 Axis Accelerometer & Gyrometer Sensor ModuleThis module contains 16-bit ADC output of 3 axis accelerator and 3 axis gyro
Chip: MPU6500
Power voltage: 3 - 5V
Communication mode: I2C / SPI
Gyro range: + / -250, + / -500, + / -1000, + / -2000dps
Accelerator range: + / -2G, + / -4G, + / -8G, + / -16G
Register: 1MHz
SPI / I2C: 400KHz
Gyro working current: 3.2mA
Gyro sleeping current: 8uA
Accelerator working current: 450uA
Accelerator sleeping current: 8uA
Size:15mm*25mm
