MPPT DPX800S 120V 15A DC-DC Step Up Modul Booster NC CV CC Output CNC

Detail MPPT DPX800S 120V 15A DC-DC Step Up Modul Booster NC CV CC Output CNC

DPX800S meningkatkan suplai daya arus konstan voltase konstan dengan komunikasi MPPT surya pengisian daya 0-15A

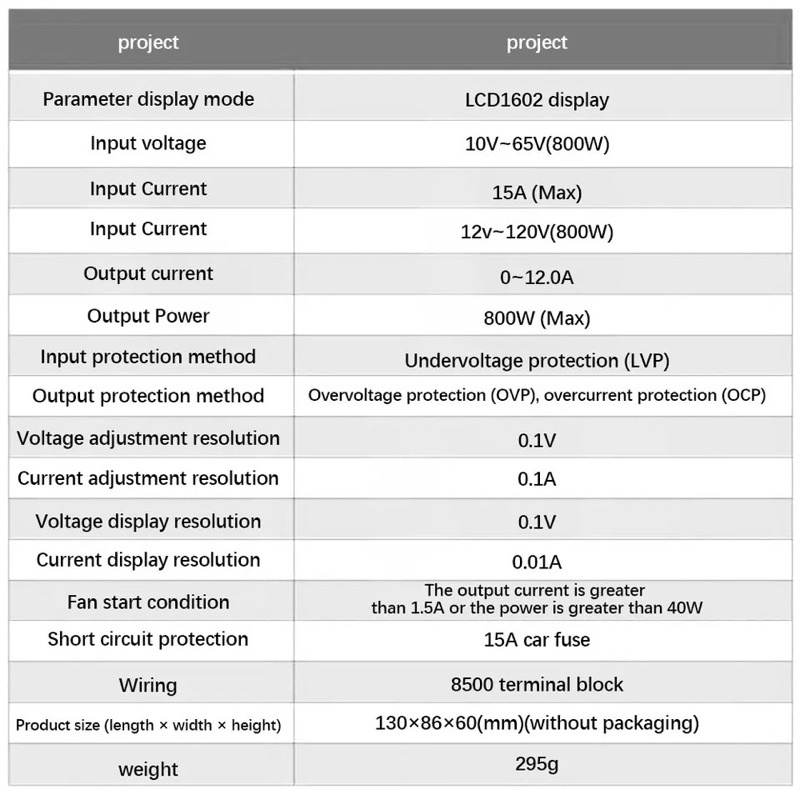

Parameter:

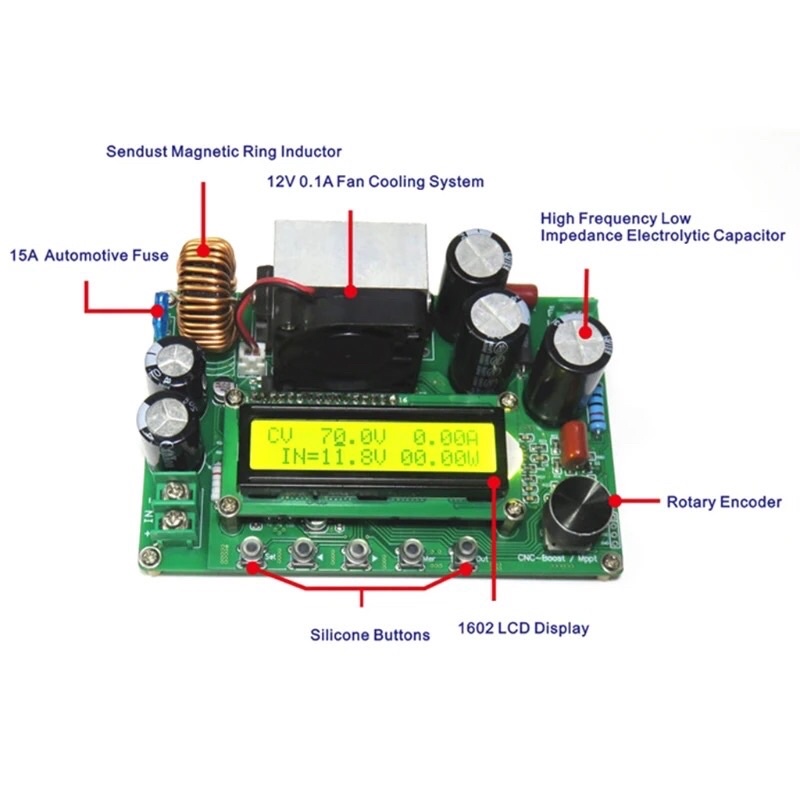

Parameter display mode: LCD1602 display

Input voltage: 10v~65v (800w)

Input current: 15A (Max)

Output voltage: 12v~120v (800W)

Output current: 0~12.0A

Output power: 800W (Max)

Input protection mode: under voltage protection (LVP)

Output protection mode: over voltage protection (OVP), over current protection (0CP)

Voltage adjustment resolution: 0.1V

Current adjustment resolution: 0.1A

Voltage display resolution: 0.1V

Current display resolution: 0.01A

Fan start condition: output current is greater than 1.5A or power is greater than 40W

Short circuit protection: 15A car fuse

Wiring mode: 8500 terminal block

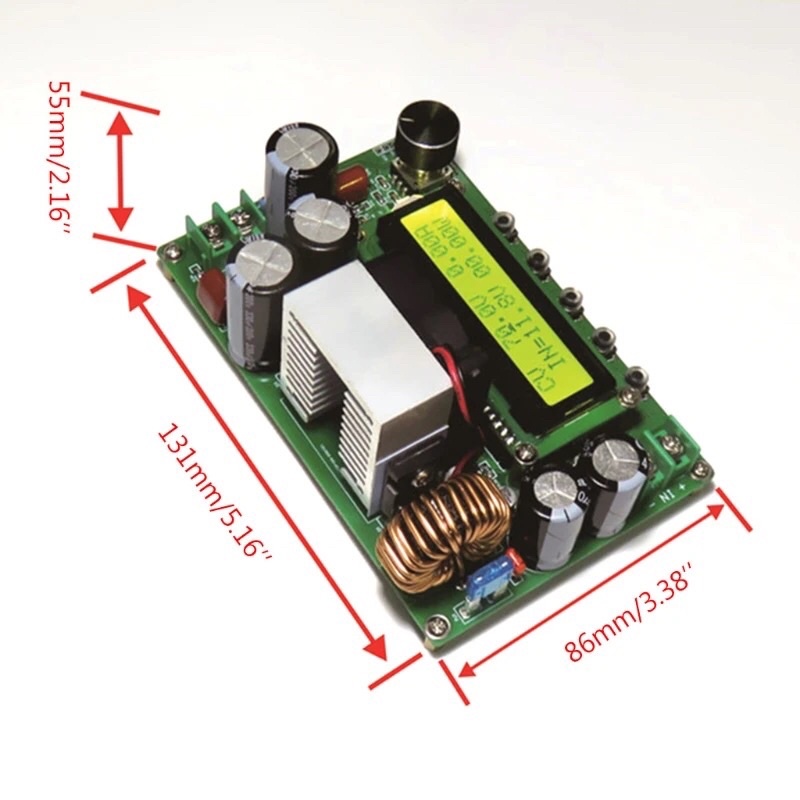

Product size (length × width × height): 130 × 86 × 60 (mm) (without packaging)

Net weight: 268.4g

Gambar produk
