MP2315 3A Mini DC-DC 4.5V-24V Step Down Adjustable & Selectable Output

Detail MP2315 3A Mini DC-DC 4.5V-24V Step Down Adjustable & Selectable Output

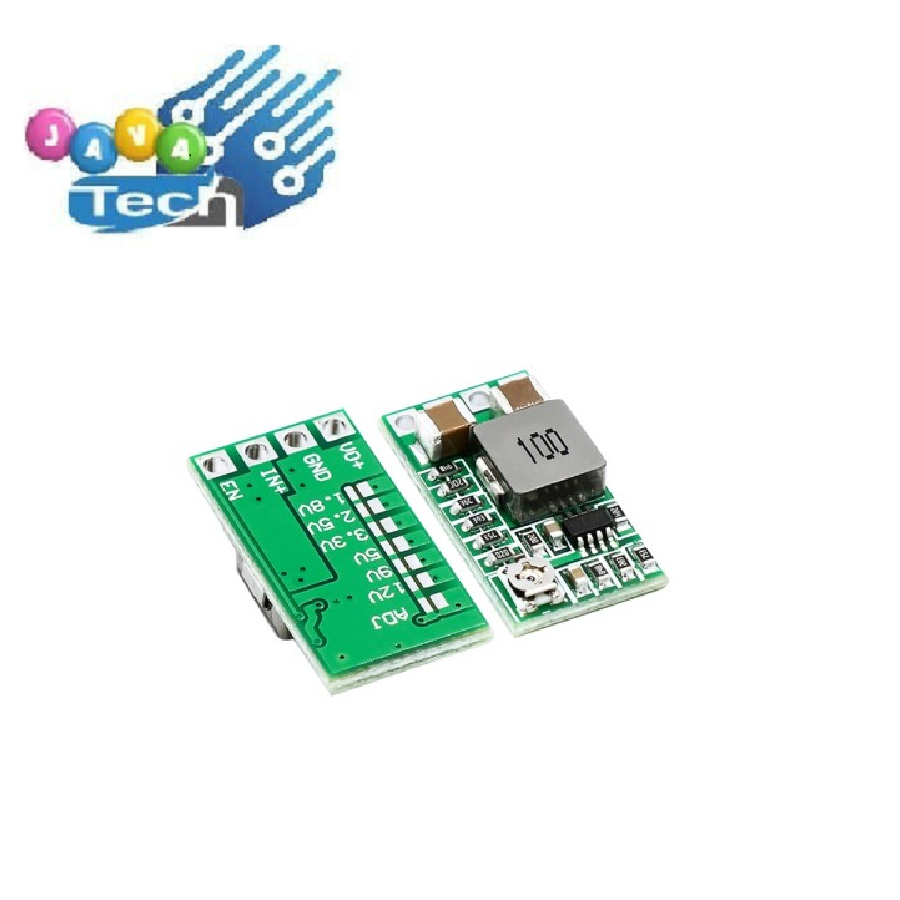

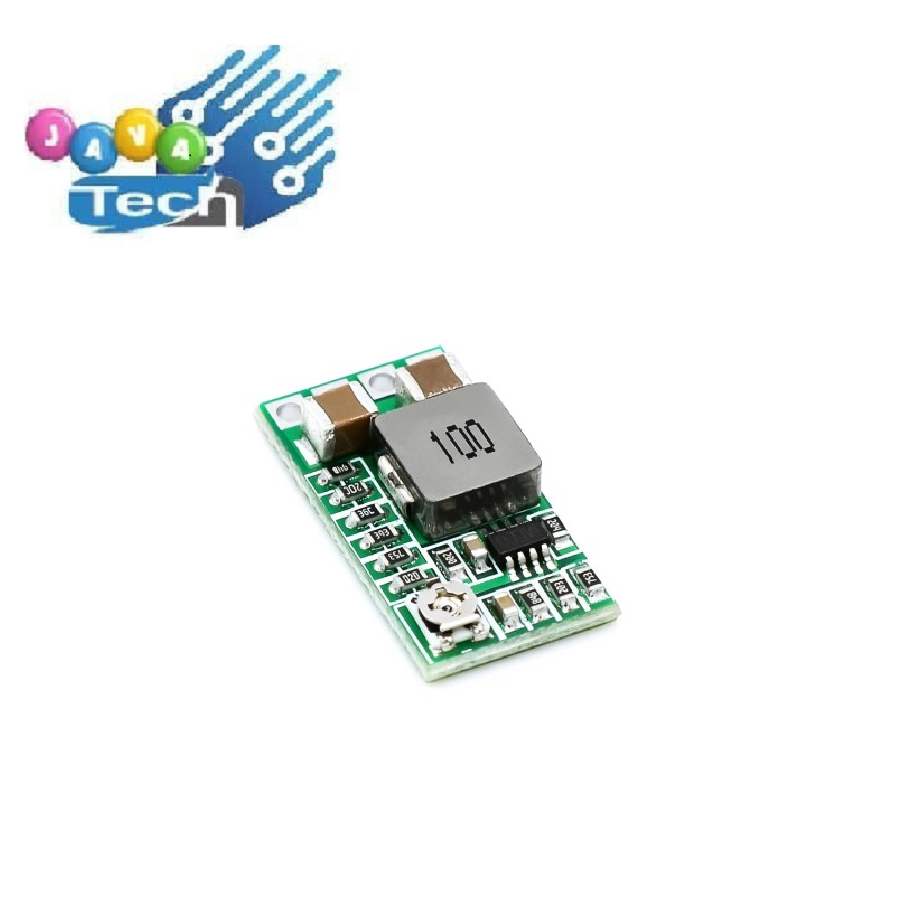

Modul ini merupakan DC-DC Buck Converter penurun tegangan berbasis MP2315.
Dengan ukuran kecil modul ini sangat baik dalam menurunkan tegangan, dengan maksimal arus bisa sampai 3A.
Metode pemilihan tegangan outputnya sangat bervariasi. Bawaan pabrik dengan cara memutar trimpot,

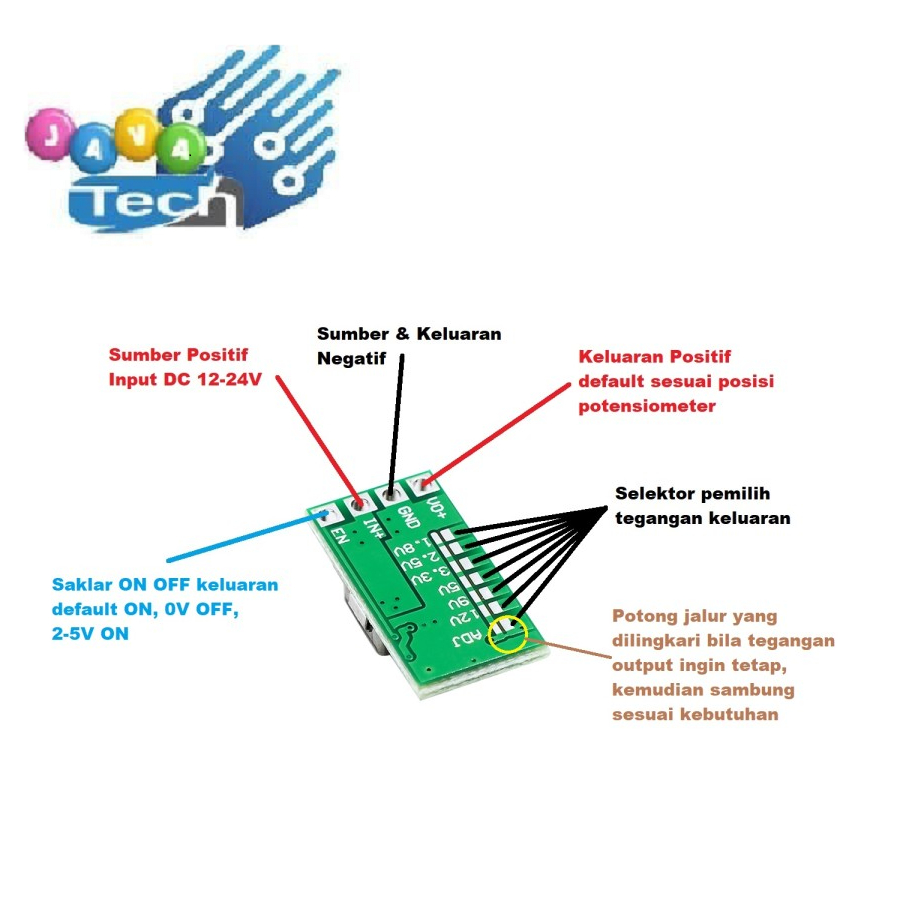

atau bisa juga tegangan keluaran fix (tetap) dengan memotong jalur pada foto yang kami lingkari, kemudian menyambung jumper mengunakan timah
sesuai kebutuhan tegangan anda.

Module: non-isolated step-down module (BUCK) synchronous rectifier
Input voltage: DC 4.5-24V
Output voltage: integrated adjustable and fixed output, the back can choose a fixed output voltage
Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (Please note that full cooling), the actual test input 12V 1.5A output less heat without special treatment.
Conversion efficiency: up to 97.5% (6.5 turn 5V 0.7A)
Switching Frequency: 500KHz
Output ripple: 20mV around (12V turn 5V3A) 20M-bandwidth
Operating temperature: Industrial grade (-40 ℃ to + 85 ℃) (the higher the temperature, the smaller the output power)
Output Overvoltage Protection: None
Full load temperature rise: 40 ℃
Static current: 0.85 mA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: Do not short-circuit a long time
Input reverse polarity protection: None, input reverse polarity protection diode
Enable control: Yes, high work, low stop working, high level 2-5V, a low level of about 0V. The default input with internal pull-up to the positive electrode.
Connection: Soldering 2.54 mm pin
