Detail MP2307 DC-DC 1A MINI STEP DOWN PENURUN TEGANGAN MODUL CONVERTER POWER SUPPLY

Specification:
100% brand new and high quality.
Module Properties: Non-isolated step-down module
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40° ~ +85°)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17mm*11mm*3.8mm(L*W*H)/17*11*3.8 Supper mini board
NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!

Gambar produk

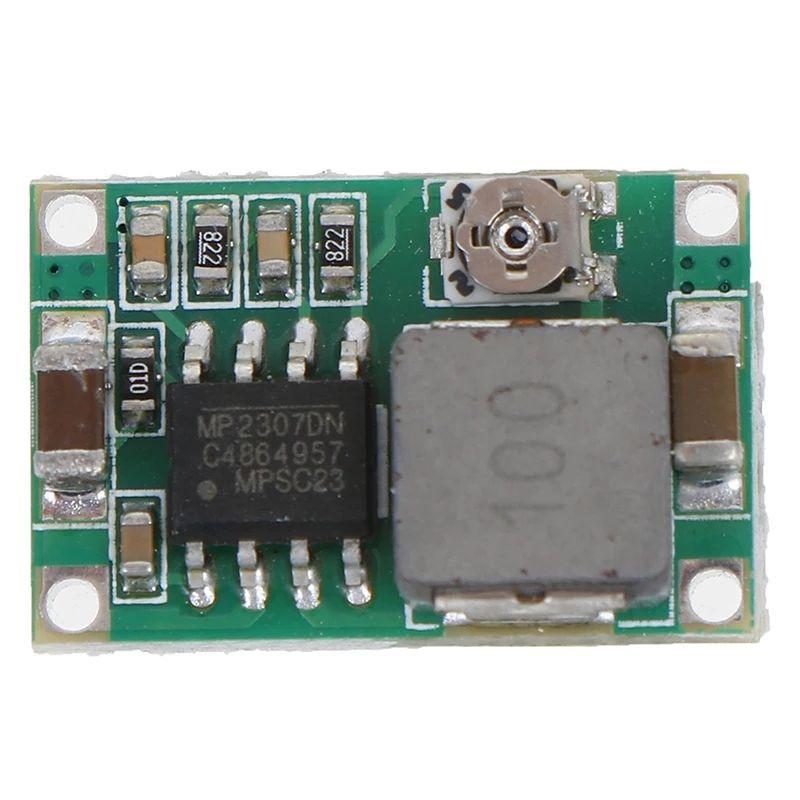

MP2307 DC-DC 1A MINI STEP DOWN PENURUN TEGANGAN MODUL CONVERTER POWER SUPPLY
