MP1584 ADJUSTABLE STEP DOWN DC 3A 4.5-28V TO 0.8-20V LM2596

Detail MP1584 ADJUSTABLE STEP DOWN DC 3A 4.5-28V TO 0.8-20V LM2596

PSU-0006
========

Deskripsi:
=================================
Modul step down mini yang bisa menghasilkan arus sampai 3A. Bisa dipake untuk
ngasih power berbagai macam project canggih agan sekalian.

Spesifikasi:
=================================
- Input voltage : 4.5 V ~ 28 V
- Output voltage : 0.8 V ~ 20 V (Adjustable)
- Output current : 3A (Max)
- Conversion efficiency : 96% (the highest)
- The output ripple : The < 30 mv
- Switching frequency : 1.5 MHz (highest), typically 1 MHz
- Suhu Kerja : - 45 ~ + 85

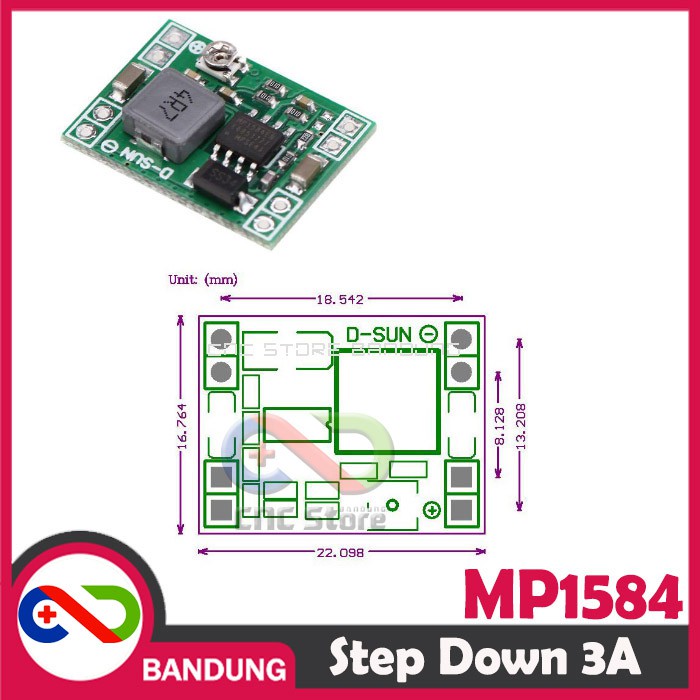

- Dimensi : 17 mm x 22 mm x 4 mm

Aplication :
=================================
- DIY mobile power supply,
- communication power supply equipment,
- all kinds of size and weight have strict requirements of occasions (to the as
aviation model, etc.).

Paket :
=================================
- 1x MP1584 SMALL ADJUSTABLE STEP DOWN DC 3A 4.5-28V TO 0.8-20V MODULE

UNTUK HARGA GROSIR CHAT US ^^

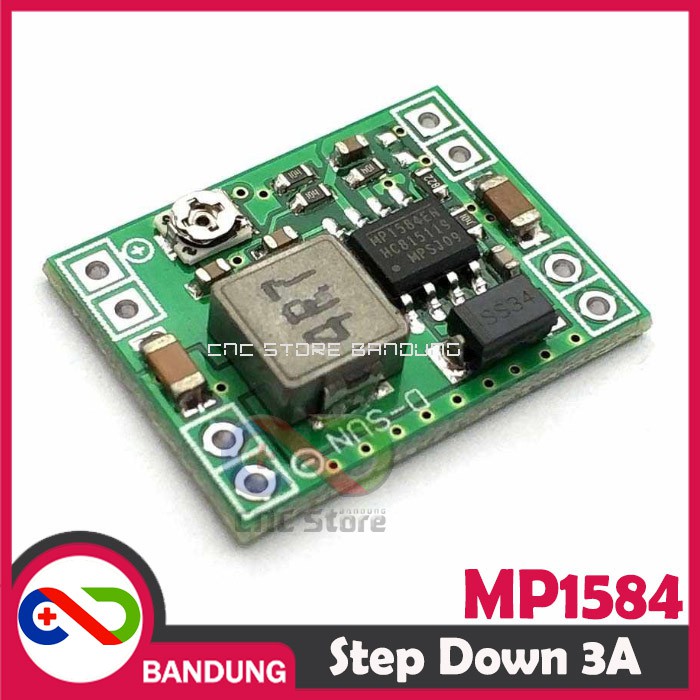

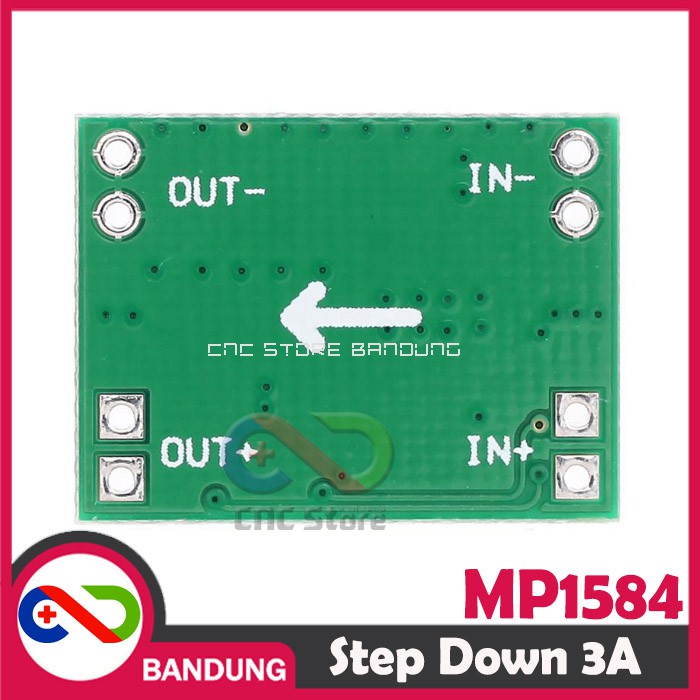

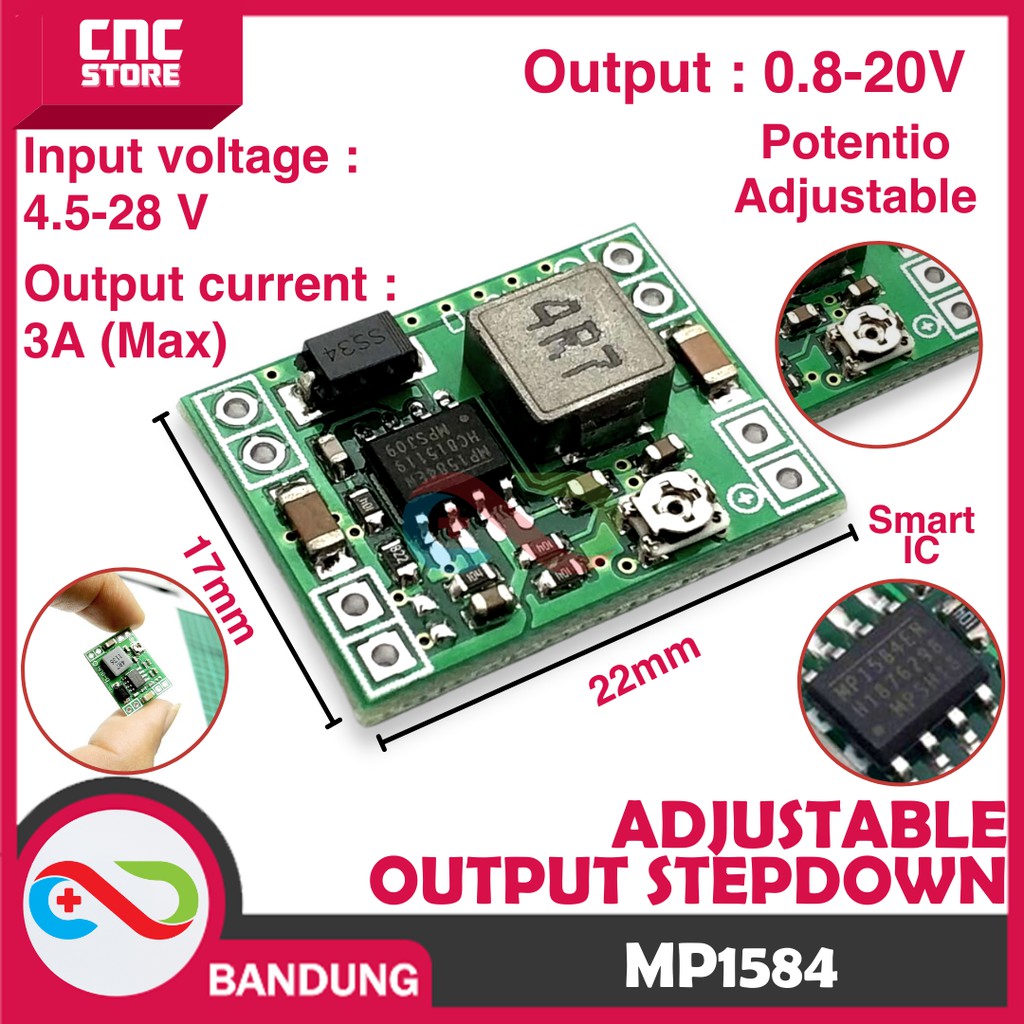

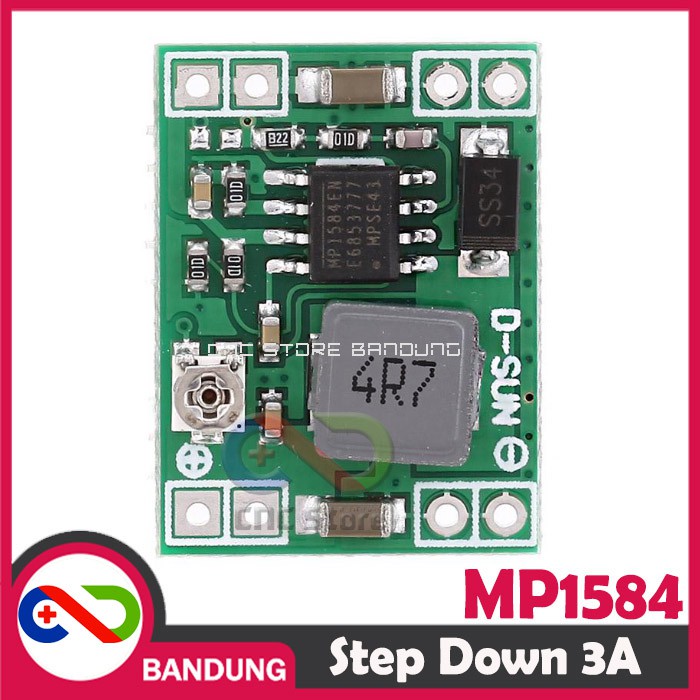

Gambar produk
