Motor Speed Controller Regulator Forward And Backward 400W 220V 1700rpm US-52 US52

Detail Motor Speed Controller Regulator Forward And Backward 400W 220V 1700rpm US-52 US52

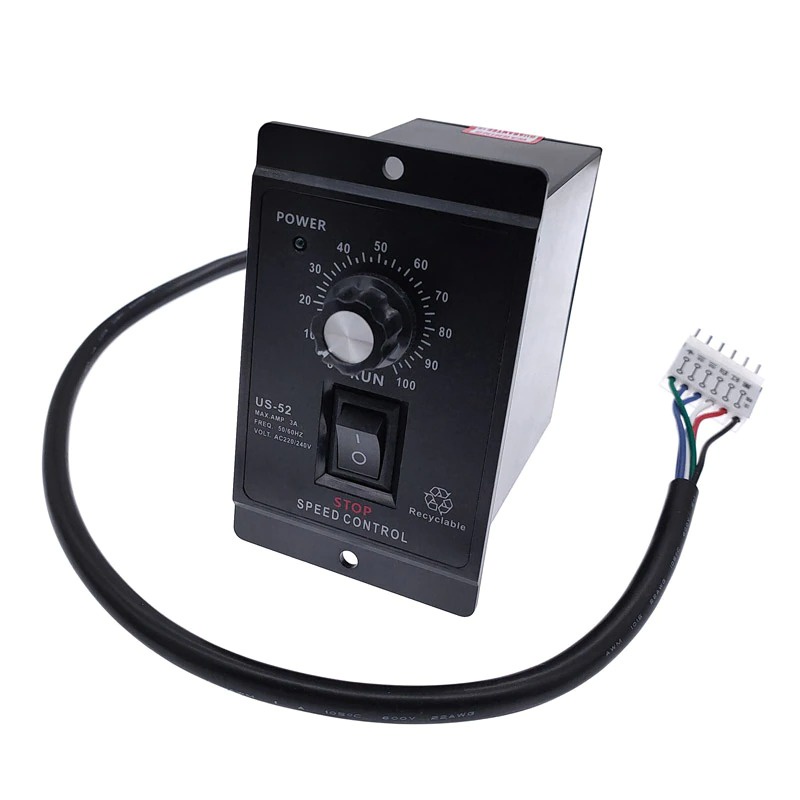

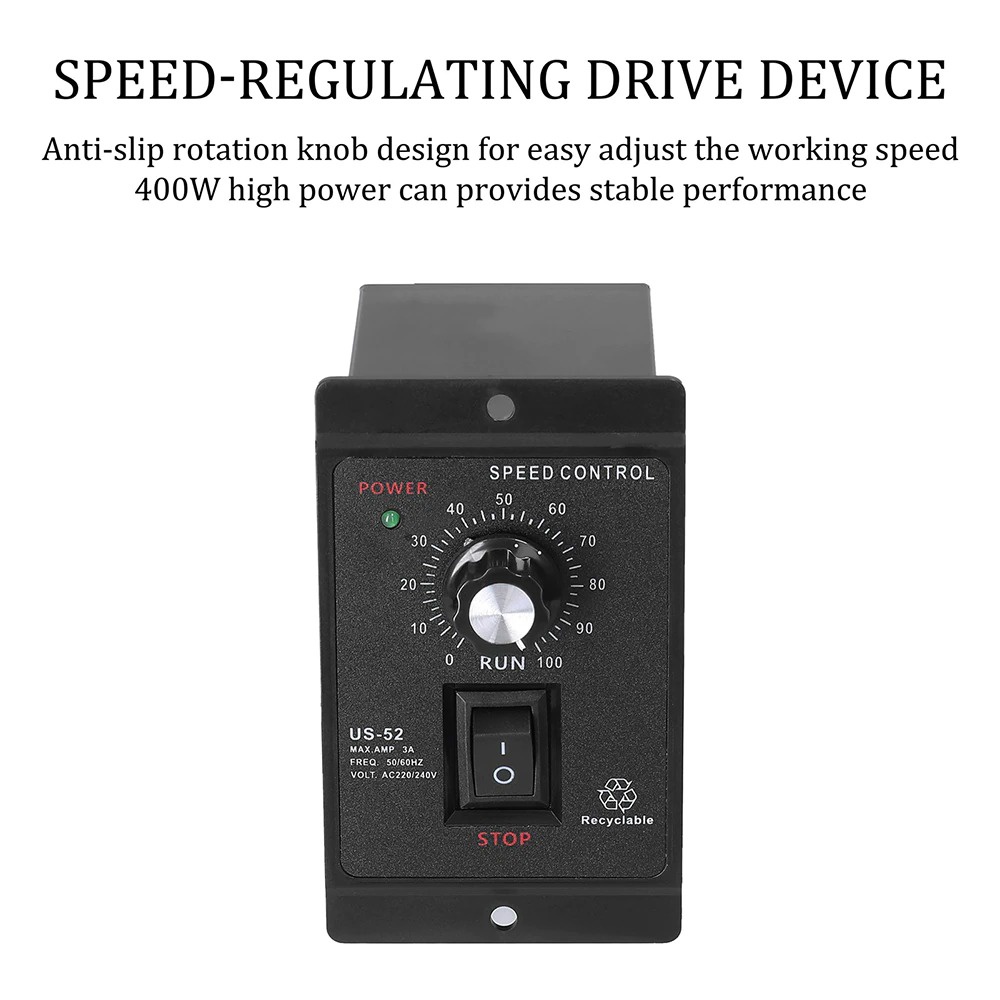

400W AC Motor Speed Controller Speed Pinpoint Regulator Forward And Backward AC 220V 50Hz 60Hz Motor Speed Control Unit US-52

Features:
1. The motor speed controller is suitable for AC 220 / 240V 50 / 60HZ motors.
2. The speed adjustment range is 90-1400r/min 50Hz, 90-1700r/min 60Hz.
3. It is suitable for the speed regulating device of the production line in the packaging, printing, food, electronics, instrumentation, medical equipment, and clothing industries.
4. The controller uses high-quality electronic circuits and integrated components to improve durability.
5. Small size, high precision, wide speed range and long service life.

Parameter:
Power frequency: 50Hz/60Hz
Speed adjustment range: 50Hz90~1400RPM 60Hz 90~1700RPM
Working temperature range: -10℃~50℃
Starting capacitor: AC220V use withstand voltage 450V capacitor

Method of use:

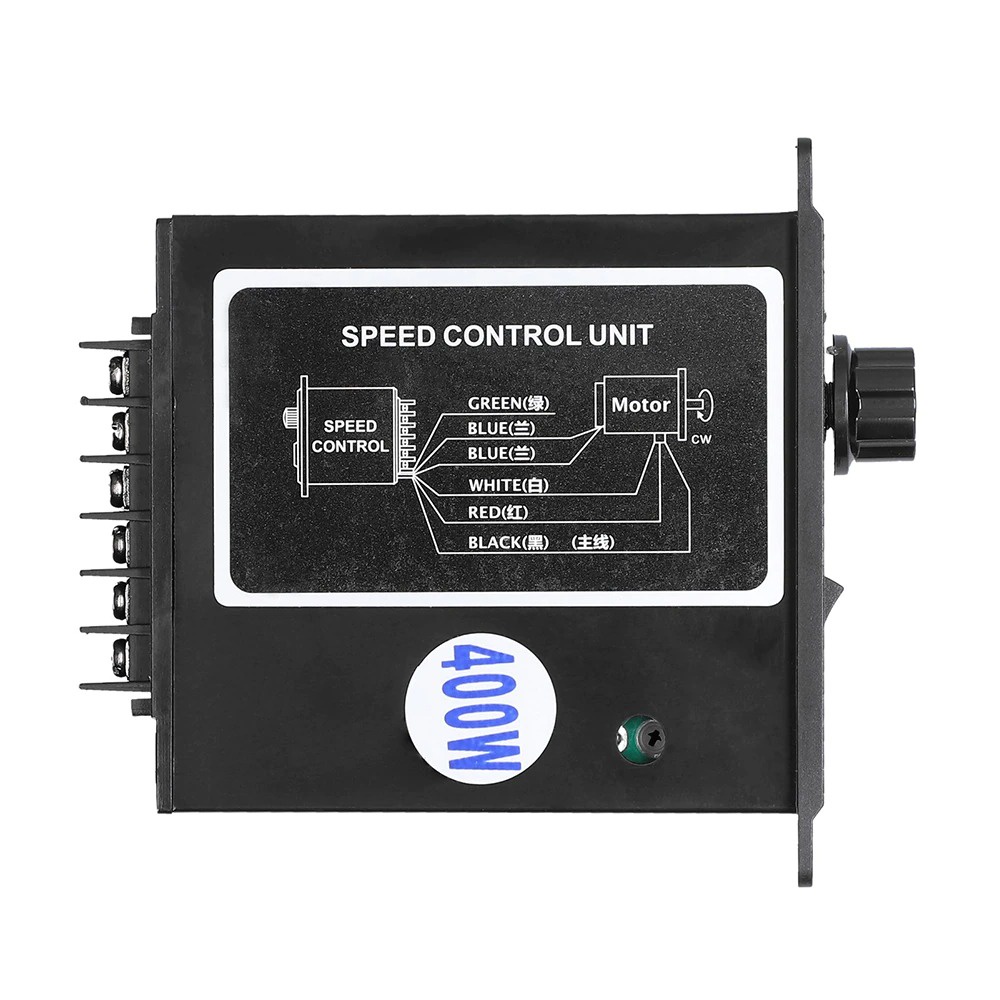

1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.
2. Fix the controller well and set the speed to the lowest ''0'', so as to avoid sudden large current and permanent damage when starting the power supply.

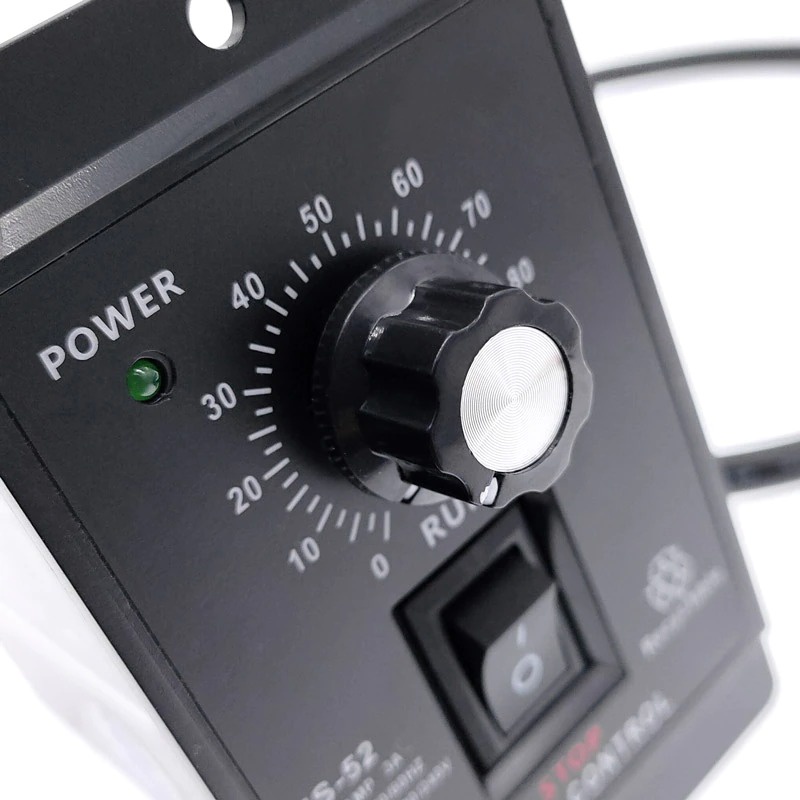

3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed.
4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust the fine-tuning potentiometer on the side of the product.

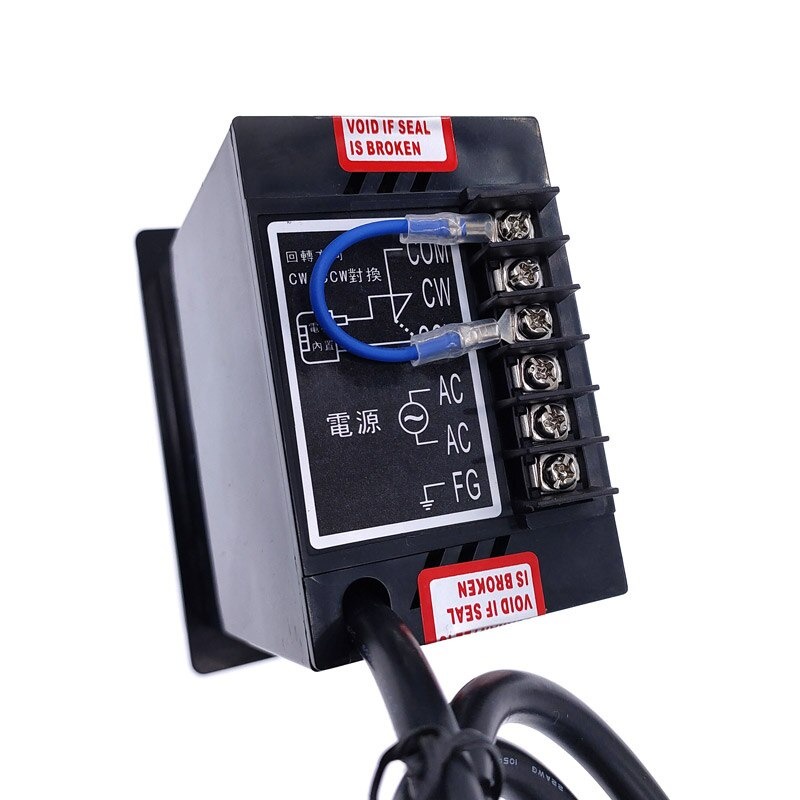

5. To change the running direction of the motor, simply replace the jumper lines of ''CCW'' and ''CW'' on the back of the controller.
6. Select COM and CW short connection, then the motor will rotate clockwise.
7. Select COM and CCW short connection, then the motor do counterclockwise rotation.

Package list:
1 x Speed Controller
