Detail Motor Gearbox Eccentric Shaft 60KTYZ 14 watt 2.5Rpm-20Rpm (8227)

Motor Gearbox Eccentric Shaft 60KTYZ 14 watt 2.5Rpm-20Rpm (8227)

erdiri dari speed sbb :

1) 2.5 Rpm = Torsi 50 Kgf/cm
2) 5 Rpm =Torsi 34 Kgf/cm
3) 10 Rpm = Torsi 26 Kgf/cm
4) 15 Rpm = Torsi 20 Kgf/cm
5) 20 Rpm=Torsi 17 Kgf/cm

Power : 14 watt

Voltage : AC 220 V

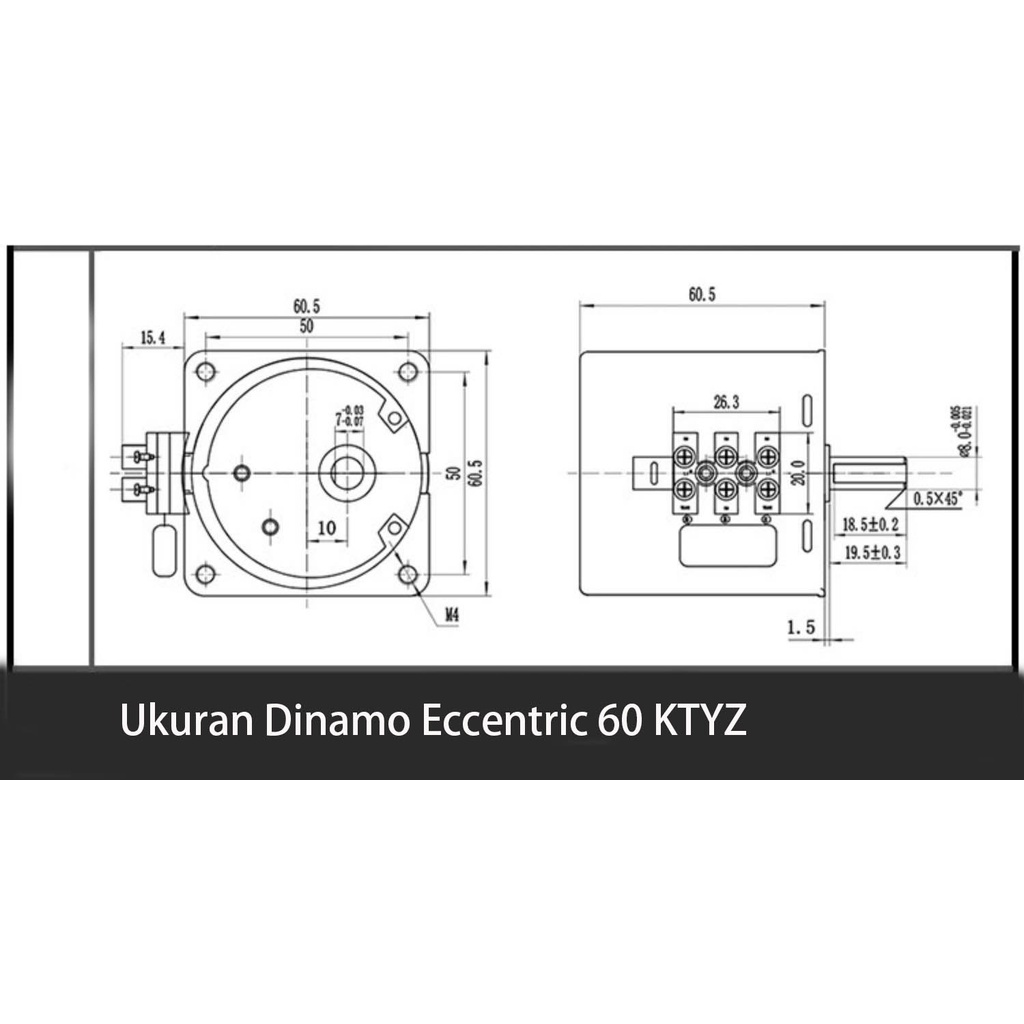

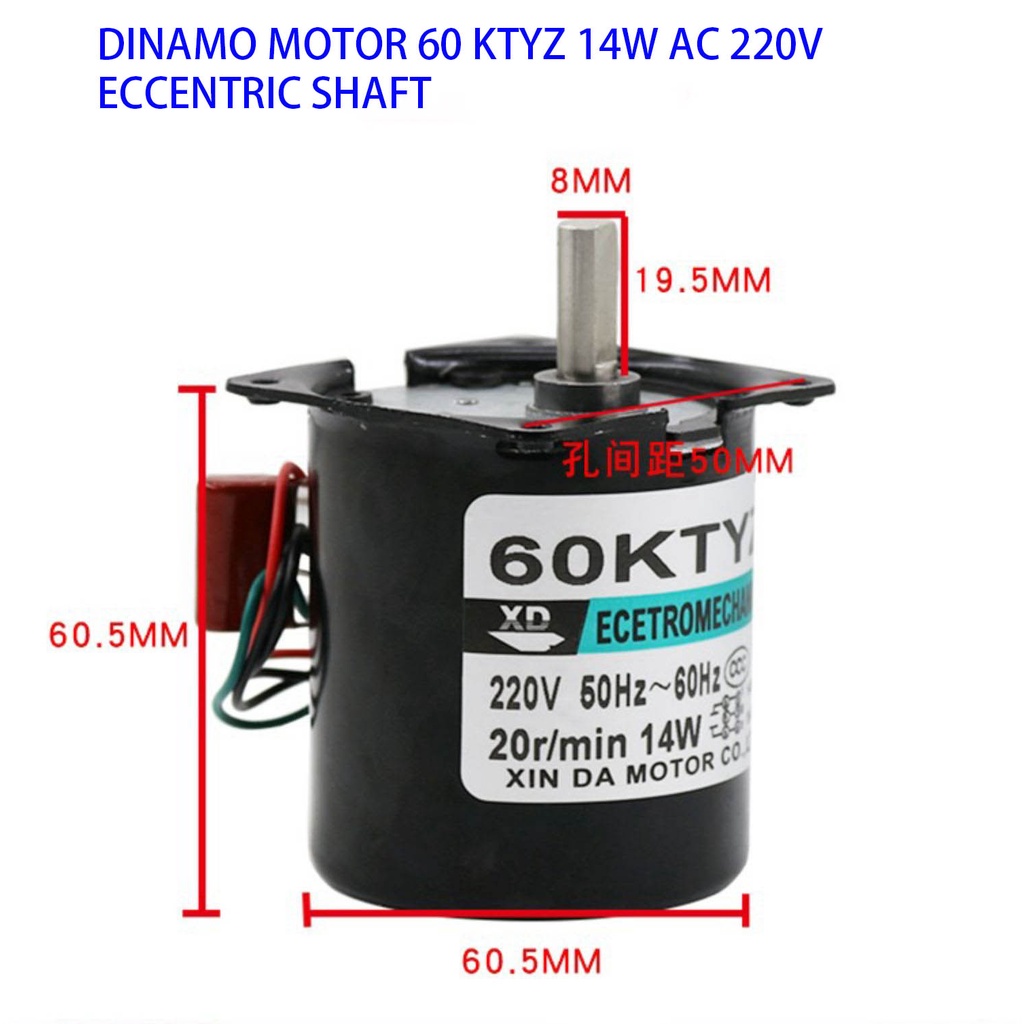

Motor size: 60x60mm

weight : 500 gr

Pengunaan : Instrumentation , automation control glue machine stage lighting

Varius valves , Exhibition Equipment , automatic curtains machine , stage light , automatic grills ,

Dishwasher , automatic dinning table , vending machine
