Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)

Elektronik > Elektronik Lainnya > Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:BOOM ElectronicLihat semua produk Elektronik oleh BOOM Electronic
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)

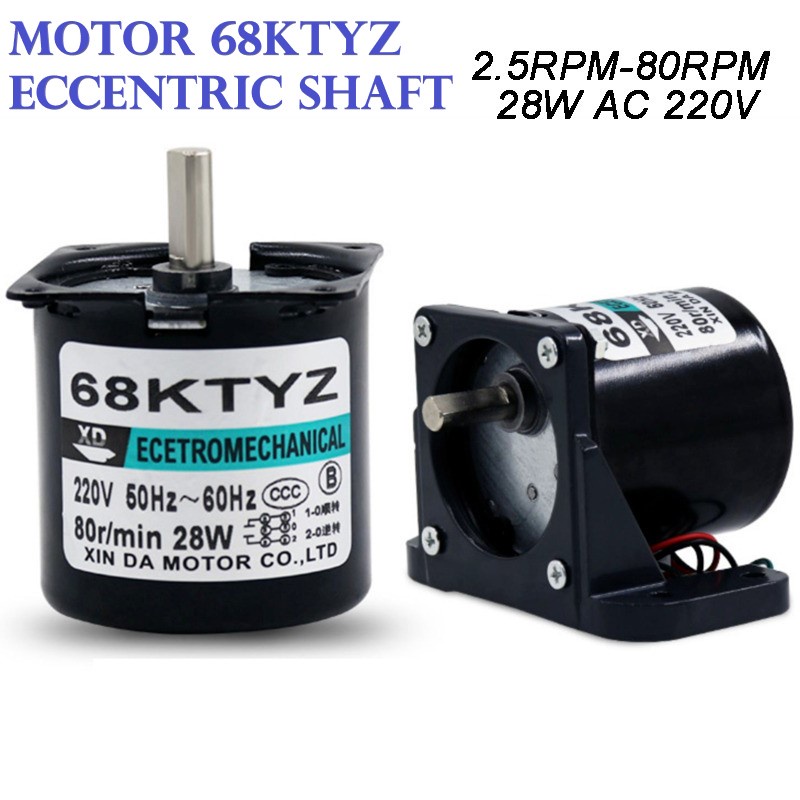

Motor Gearbox Eccentric Shaft 68 KTYZ 28 watt (8230)

Terdiri dari speed sbb :

1) 2.5 Rpm = Torsi 100 Kgf/cm
2) 5 Rpm =Torsi 72 Kgf/cm
3) 10 Rpm = Torsi 62 Kgf/cm
4) 15 Rpm = Torsi 48 Kgf/cm
5) 20 Rpm=Torsi 42 Kgf/cm

Power : 28 watt

Voltage : AC 220 V

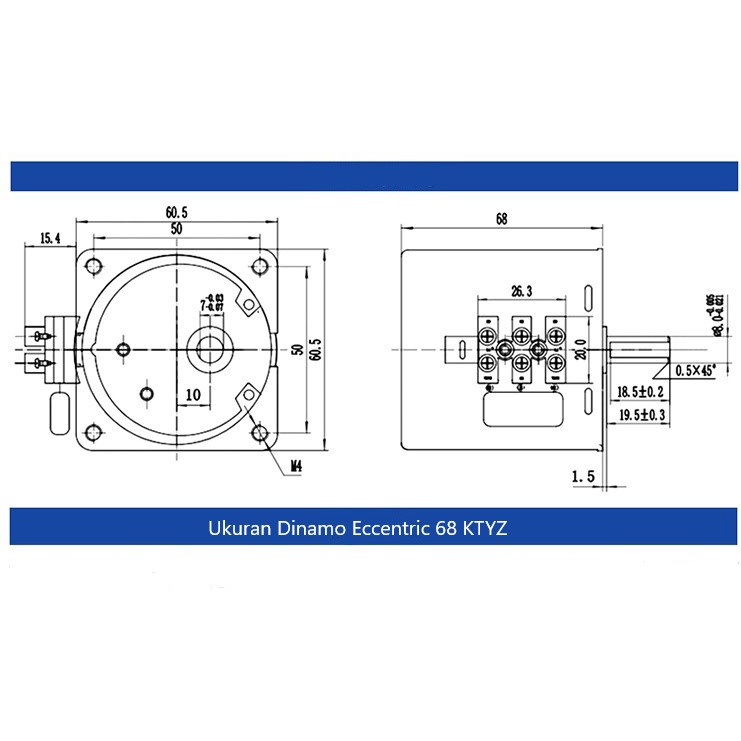

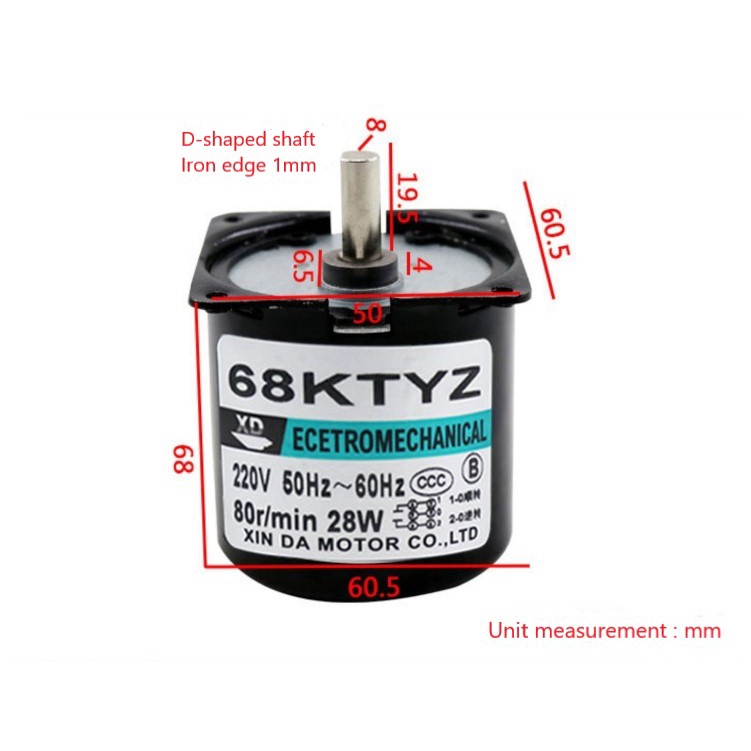

Motor size: 60x68mm


Pengunaan : Instrumentation , automation control glue machine stage lighting

Varius valves , Exhibition Equipment , automatic curtains machine , stage light , automatic grills ,

Dishwasher , automatic dinning table , vending machine

Gambar produk

Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Motor Gearbox Eccentric Shaft 68KTYZ 28 watt 2.5Rpm-20Rpm (8230)
Lihat lebih banyak informasi produk
