Detail Motor Gearbox DC Planetary 12V ~ 18V Dc

Mini DC GEARBOX Motor
Brand : dunkermotoren - Germany
Type Gearbox : PLANETARY

Electrical spec :
Max Tegangan 18Vdc
Tegangan kerja 12 - 18Vdc
Arus nominal 0.37A
Termination :2 wire

Motor test ( tanpa beban ) :
Input 12Vdc output 510rpm
Input 18Vdc output 760rpm

Mechanical Spec :
Ratio planetary gearbox 1:6,25
Diameter gearbox 30mm
Panjang gearbox 27mm
Diameter shaf output 6mm
Panjang shaft 17mm
Diameter motor 30mm
Panjang body motor 40mm

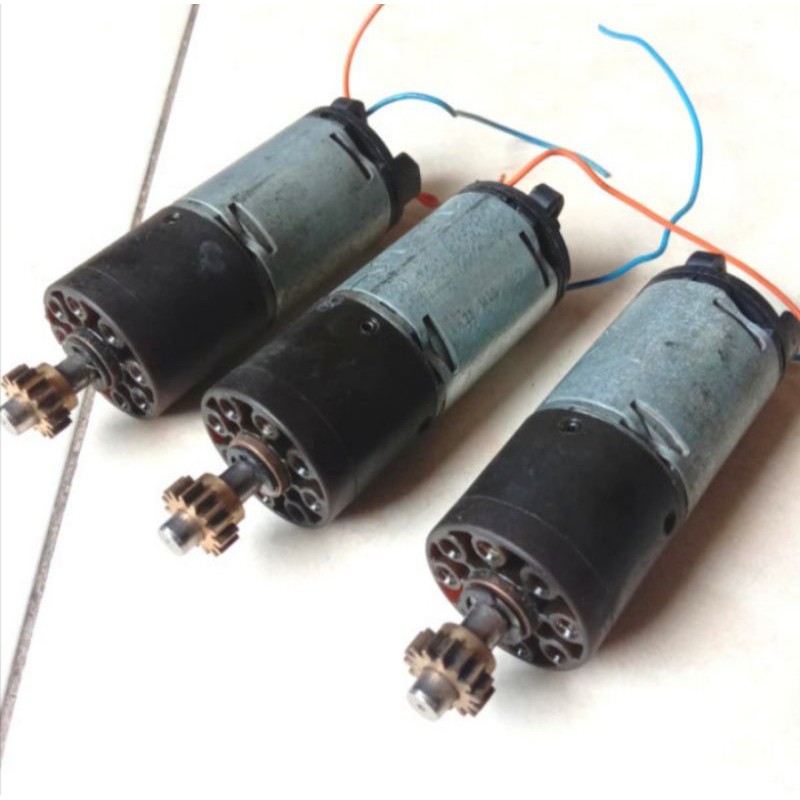

Gambar produk
