Motor Gearbox 70KTYZ 40W with Bracket 30Rpm 50 60 80 110Rpm (8097)
Deskripsi singkat
Elektronik > Elektronik Lainnya > Motor Gearbox 70KTYZ 40W with Bracket 30Rpm 50 60 80 110Rpm (8097)
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Motor Gearbox 70KTYZ 40W with Bracket 30Rpm 50 60 80 110Rpm (8097)
Motor Gearbox 70KTYZ 40W with Bracket 30Rpm 50 60 80 110Rpm (8097)Terdiri dari beberapa pilihan sbb :
1) 30 Rpm/min
2) 50 Rpm/ min
3) 60 Rpm /min
4) 80 Rpm /min
5) 110Rpm/min
Model: 70KTYZ
Origin: Mainland China
Power supply mode: AC
Color classification: Motor (gift plug wire) motor + bracket (gift plug wire)
Voltage: 220V
Power: 40W
Voltage: 220V (AC)
Output speed: 2.5-110RPM
Motor type: Synchronous motor
Size: 70MM×70MM
Bracket : Tebal 3 mm
Keterangan Torsi :
* 2.5 Rpm = 16.3 N.m
* 5 rpm= 8.87 N.M
* 10 rpm = 4.89 N.m
* 15 rpm = 3.26 N.m
* 20 Rpm =2.34 N.m
* 25Rpm " 2.04 N.m
* 30 Rpm 1.63 N.m
* 50 Rpm = 0.96 N.m
* 60 Rpm = 0.71 N.m
* 80 Rpm=0.66 N.m
* 110 Rpm = 0.35 N.m

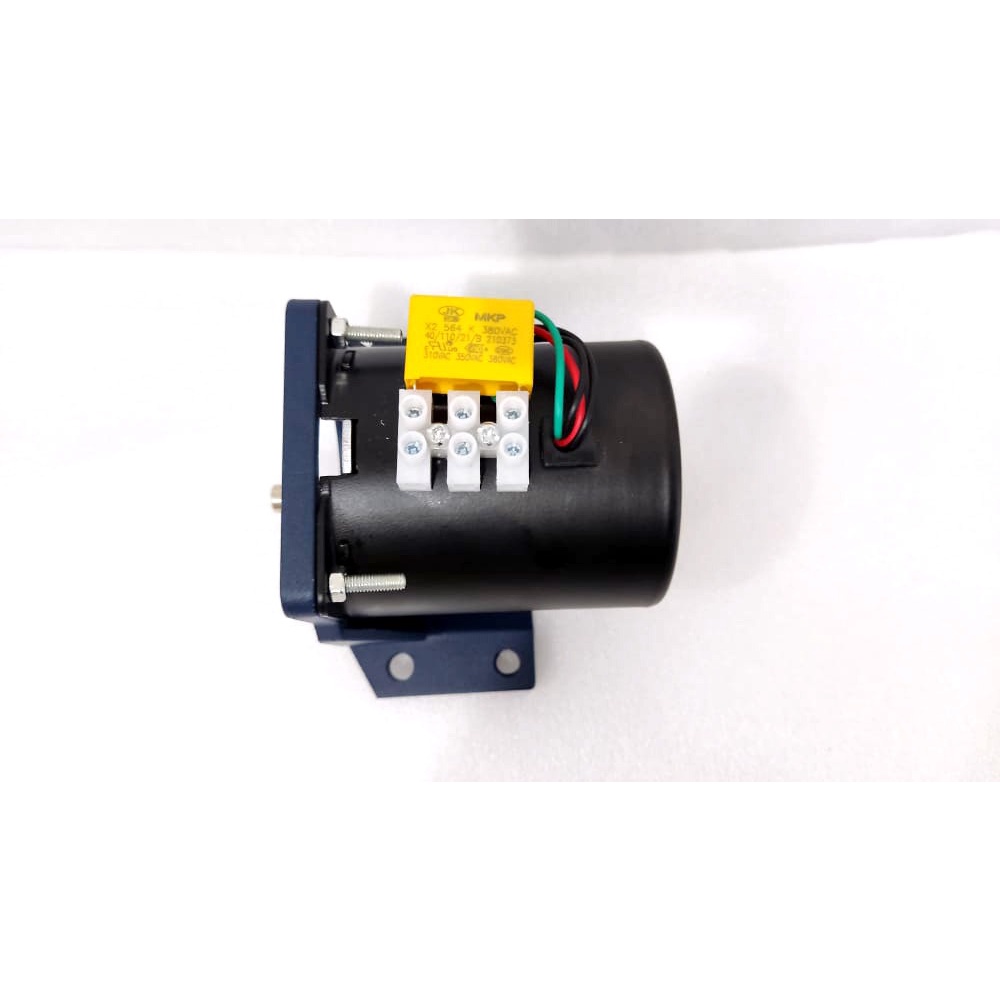

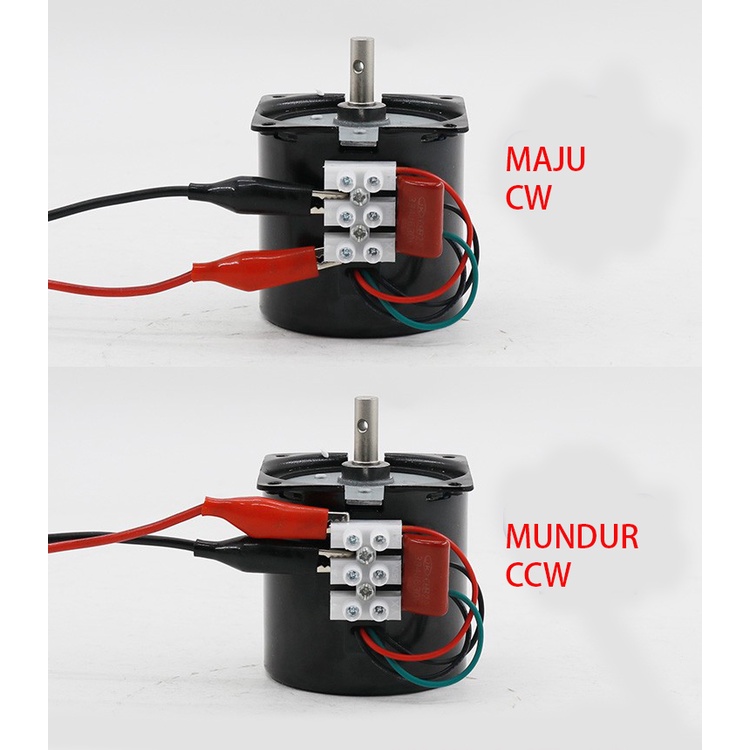

Gambar produk
