Detail Motor Gearbox 70KTYZ 40W 2.5Rpm 5 10 15 20Rpm (8098)
Motor Gearbox 70KTYZ 40W 2.5Rpm 5 10 15 20Rpm (8098)Terdiri Speed sbb :
1) 2.5 Rpm /min
2) 5 Rpm /min
3) 10 Rpm /Min
4) 15 Rpm/min
5) 20 Rpm/Min
Model: 70KTYZ
Power supply mode: AC
Color classification: Motor (gift plug wire) motor + bracket (gift plug wire)
Voltage: 220V
Power: 40W
Voltage: 220V (AC)
Output speed: 2.5-110RPM
Motor type: Synchronous motor

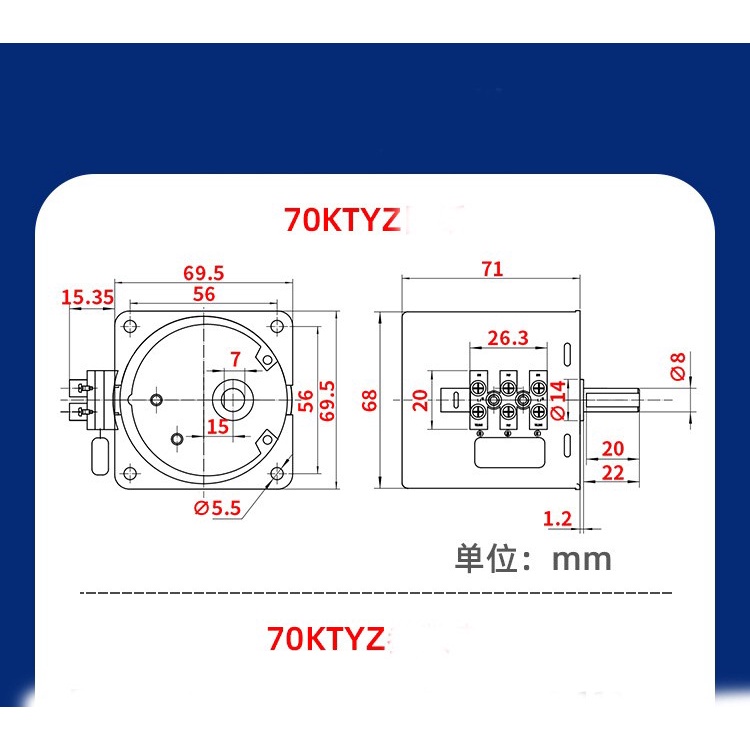

Size: 70MM×70MM
Keterangan Torsi :
* 2.5 Rpm = 16.3 N.m
* 5 rpm= 8.87 N.M
* 10 rpm = 4.89 N.m
* 15 rpm = 3.26 N.m
* 20 Rpm =2.34 N.m
* 25Rpm " 2.04 N.m
* 30 Rpm 1.63 N.m
* 50 Rpm = 0.96 N.m
* 60 Rpm = 0.71 N.m
* 80 Rpm=0.66 N.m
* 110 Rpm = 0.35 N.m
Gambar produk
