Detail Motor Dual Driver Module L9110S H-bridge Stepper 2 CH L 9110S 9110 S

Product description:

The L9110S 2-Channel motor driver module is a compact board that can be used to drive small robots. This module has two independent motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers.

Features:

On-board 2 L9110 motor control chip
Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
Input voltage: 2.5-12V DC
Each channel has a continuous output current 800 ma
PCB Size: 29.2mm x 23mm

Lower saturation voltage

TTL / CMOS compatible output level can be directly connected to CPU

Output built-in clamp diodes for inductive load

Control and drive integrated into a single IC

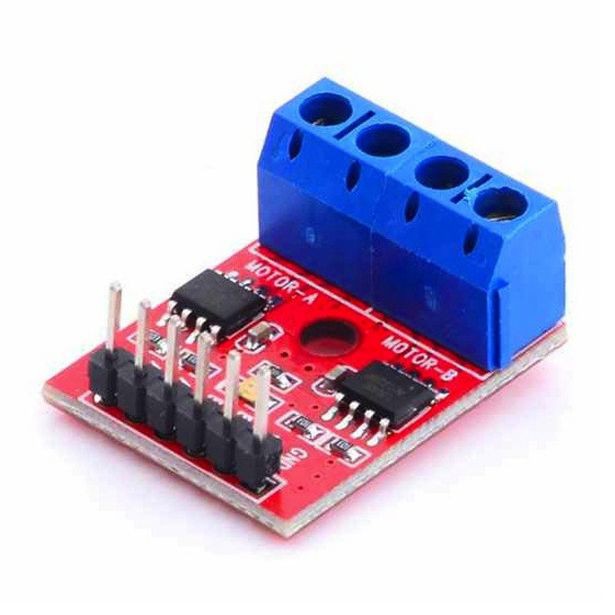

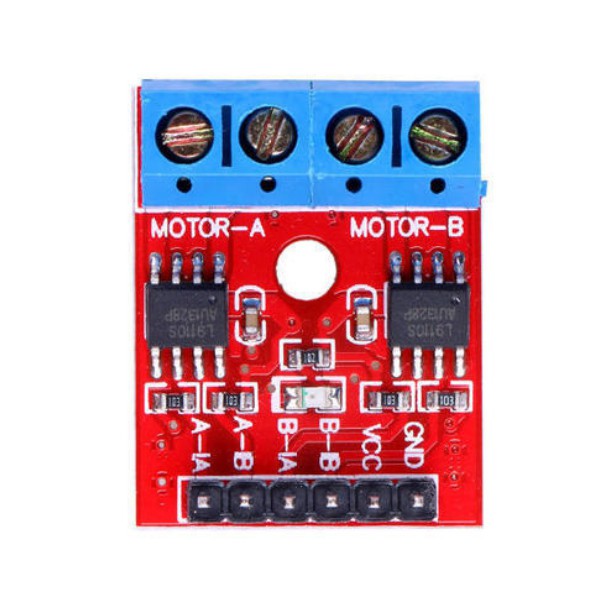

Gambar produk
