Motor driver nema 42 57 86 stepper motor driver 32 segment TB6600 4 A motor driver
Deskripsi singkat
Perlengkapan Rumah > Perlengkapan Rumah Lainnya > Motor driver nema 42 57 86 stepper motor driver 32 segment TB6600 4 A motor driver
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

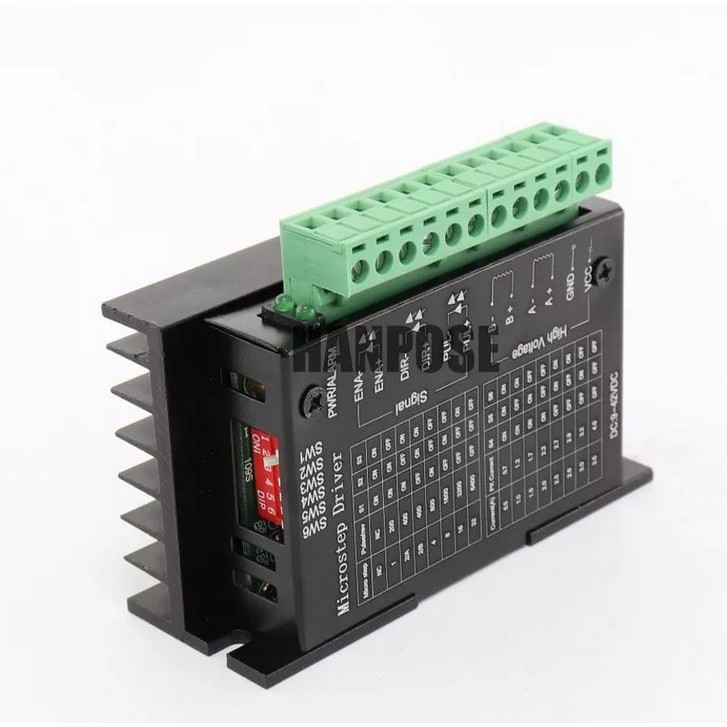

Detail Motor driver nema 42 57 86 stepper motor driver 32 segment TB6600 4 A motor driver
Hot Promo!!! dari pabrikThis driver is an upgraded version of TB6600, subdivided up to 32 segments, suitable for high-segment use. Applicable stepper motor: 42, 57, 86 type 2 phase 4 phase (4 lines 6 lines 8 lines)
Single Axis 4A TB6600 Stepper Motor Driver Controller 9~42V Micro-Step CNC
Features:
1. 100% brand new and high quality.
2. Bipolar constant current chopper
3. High-speed optocoupler signal isolation input
4. Electrical input signal is TTL compatible
5. Stationary current is automatically reduced by half
6. Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
Specifications:
1. Supply Voltage: 9~42VDC
2. Input voltage: DC 12 ~ 48V
3. Operating Temperature: -10 to 45 C
4. Storage temperature: -40 to 70 C
5. Max Drive Current: 4A
6. Chopping Frequency: 20KHZ
Package Included:
1x 4A TB6600 Stepper Motor Driver Controller
barang akan kami packing buble dan insyallah aman
Gambar produk
