Detail Motor driver microstep driver M415 nema 23 nema 17 motor 42 atau 57

Motor driver M415 current max 4A
M415 4A Hybrid Stepping Motor Driver 42/57 Stepper Motor Driver Two Phase For CNC Motor Machine
spesifikasi
1. Working power supply 9-42V;

2. Maximum drive current 4A;

3. the input signal is high-speed optical insulation;

4. provide semi-automatic current locking function;

5. built-in thermal protection and overcurrent protection.;

6. Designed in a small size and convenient to be installed;

7.maximum power dissipation: 126W

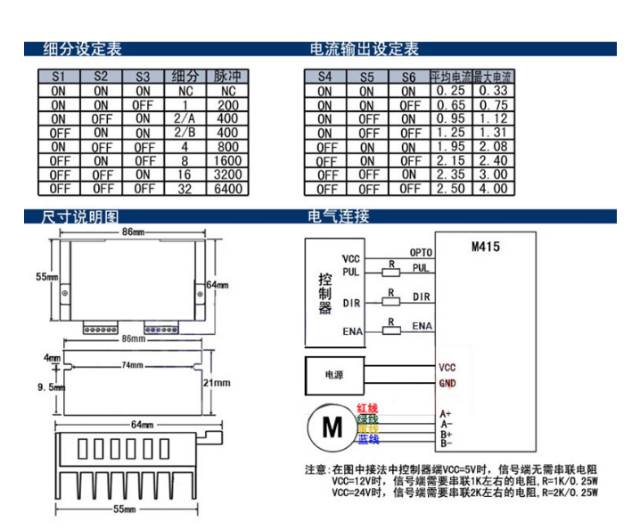

8.7 subdivision are optional: 1/2A, 2/B, 4, 8, 16, 32

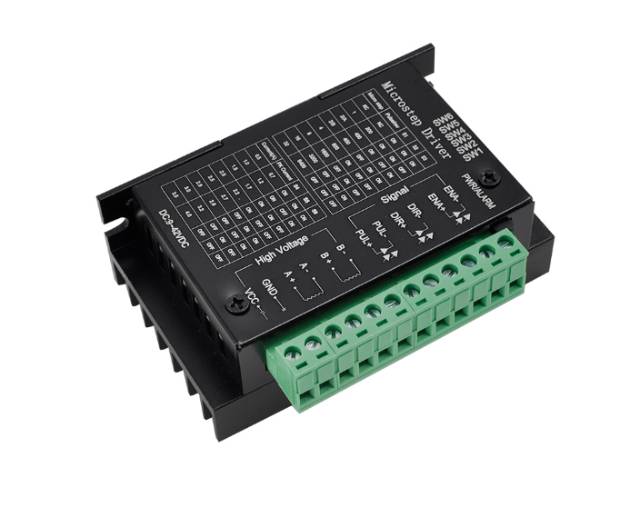

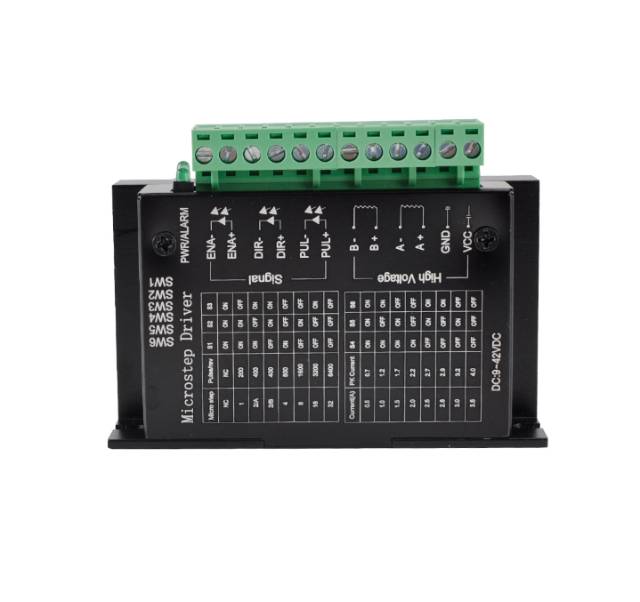

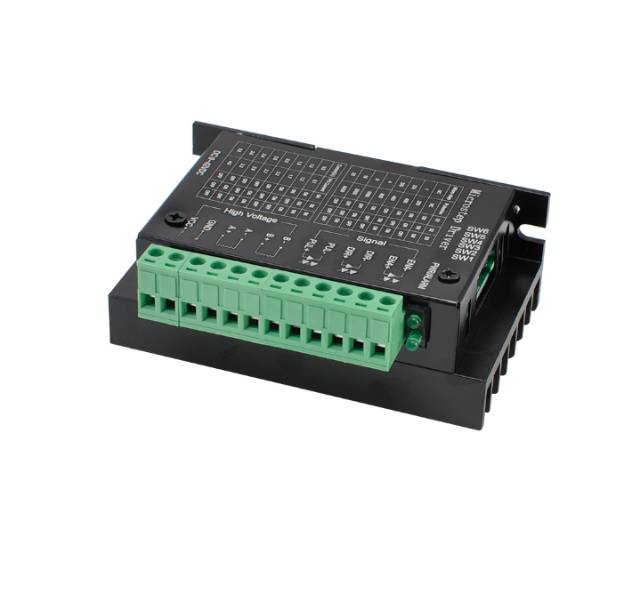

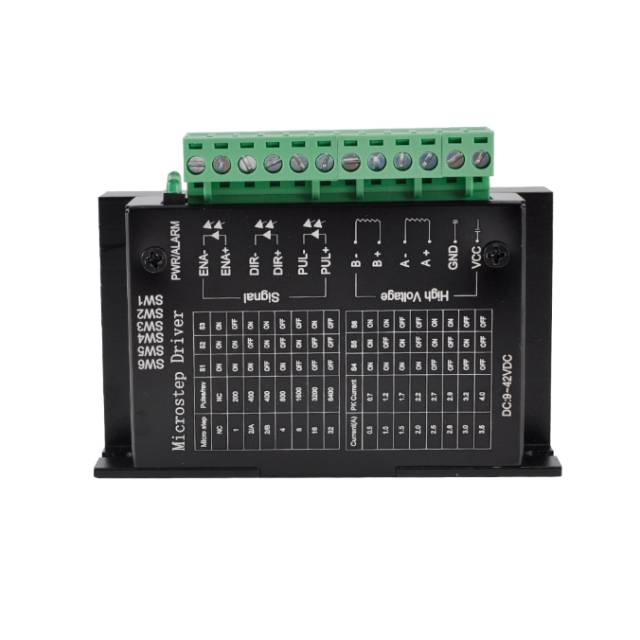

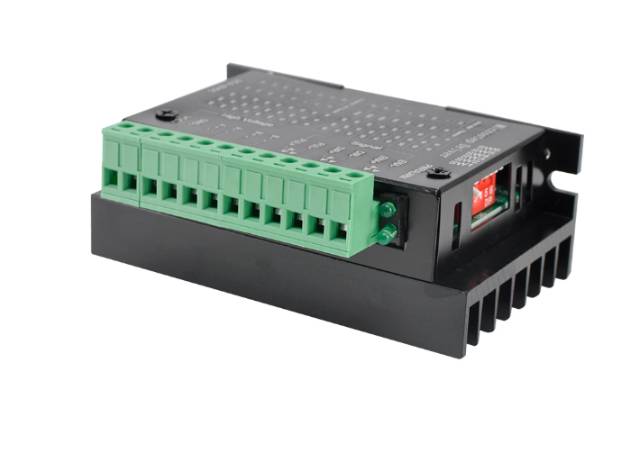

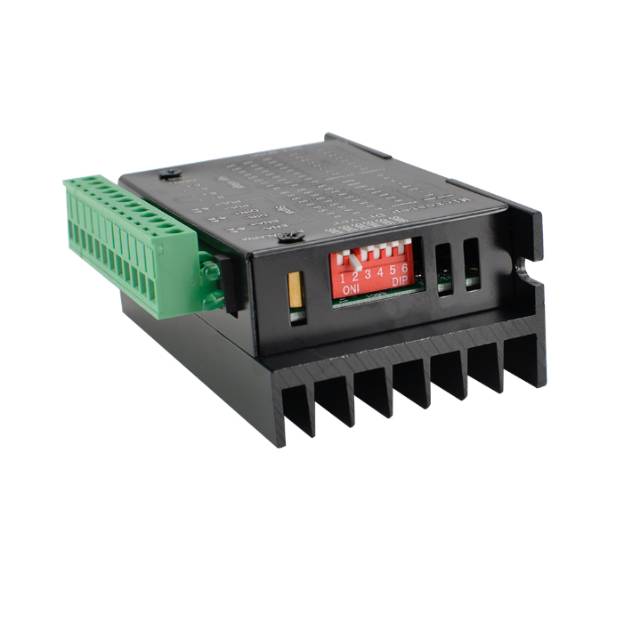

Gambar produk
