Motor Driver 300W Brushless Hallless (8175)

Detail Motor Driver 300W Brushless Hallless (8175)

BLDC three-phase DC brushless with sensor Hall 24V motor fan turbine motor speed control drive controller

PWM duty cycle control, the frequency is recommended to be above 200HZ. Please specify in advance if PWM duty cycle is required!

Controller parameters:

Product Name: 300W Brushless Hallless DC Motor Driver

Model: BLDC300W24V

Working voltage: 12-60V

Maximum current: rated 16A peak 20A

Peak power: 380W

Overcurrent Protection: Yes

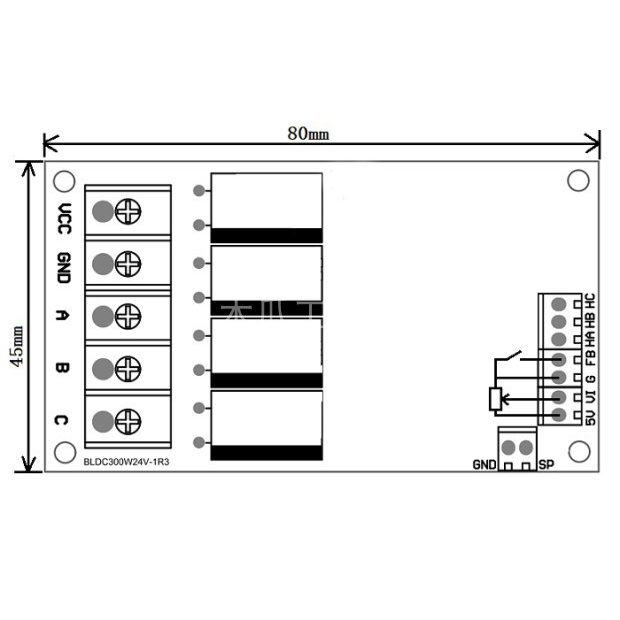

Product size: length 80MM* width 45MM* height 37MM

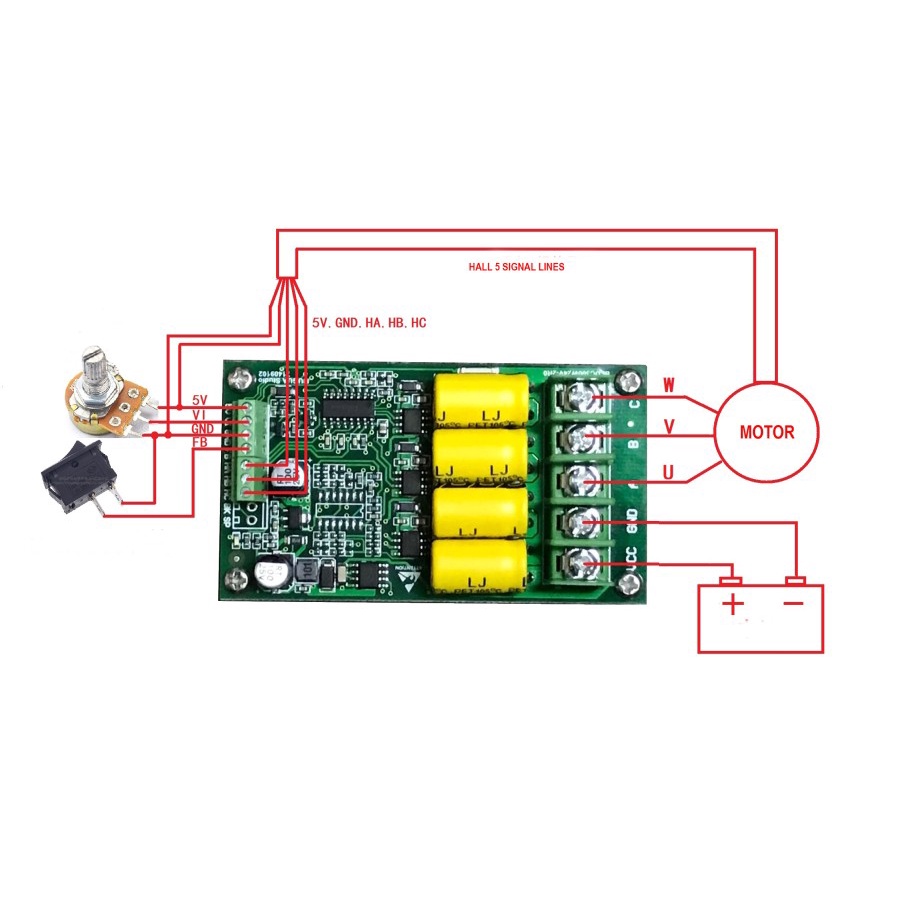

** nterface Description:

1.A B C output is connected to the three-phase motor.

2. HA HB HC Hall three-phase input, corresponding to motor ABC (UVW) phase.

3. 5V G 5V power supply and GND (power supply for Hall or potentiometer, the output current should not be higher than 100mA).

4. VCC GND controller power supply, voltage range 12-60V.

5. SP speed pulse signal output, output one pulse per phase change. .

6.FB forward and reverse control interface, connected to high level by default, if you need to reverse, pull it down or connect to GND.

7.VI speed control signal input, PWM input/0-5V analog input (0V does not turn, 5V output maximum power).

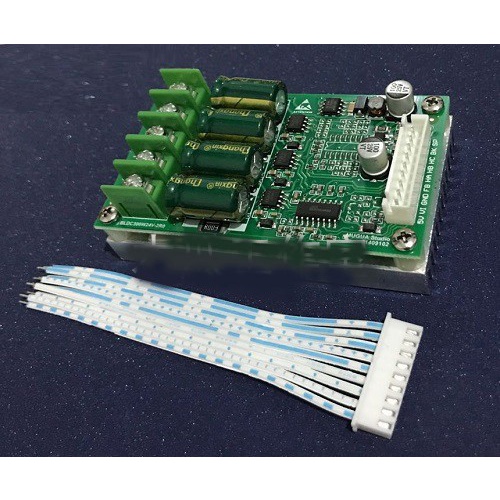

Gambar produk
