Detail Motor Driver 2 Channel - 10Amp 5V-30V DC Motor Driver 2 Channels

The MDD10A is the dual-channel version of MD10C which is designed to drive 2 brushed DC motors with high current up to 10A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal. It uses full solid state components that offers faster response time and eliminates the wear and tear of the mechanical relay.

Operating Condition :
- Motor Channel : 2
- Operating Voltage (VDC) : 5 to 25 (Rev 1.0) 5 to 30 (Rev 2.0)
- Peak Current (A) :30 (10 seconds)
- Continuous Current (A) :10

Operating Modes
- Arduino Shield : No- can be used with Wire connection
- PWM (Lock-Antiphase and Sign-Magnitude) : Yes
- UART : NO
- Analog : NO
- RC Servo Signal :NO

Special Protection
- Polarity Protection : NO

Appearance
- LEDs Indicator : Yes
- Test/Manual Button : Yes
- Cooling Fan :NO

Other Features
- others : No heat sink is required

Package :
1 x 10Amp 5V-30V DC Motor Driver 2 Channel

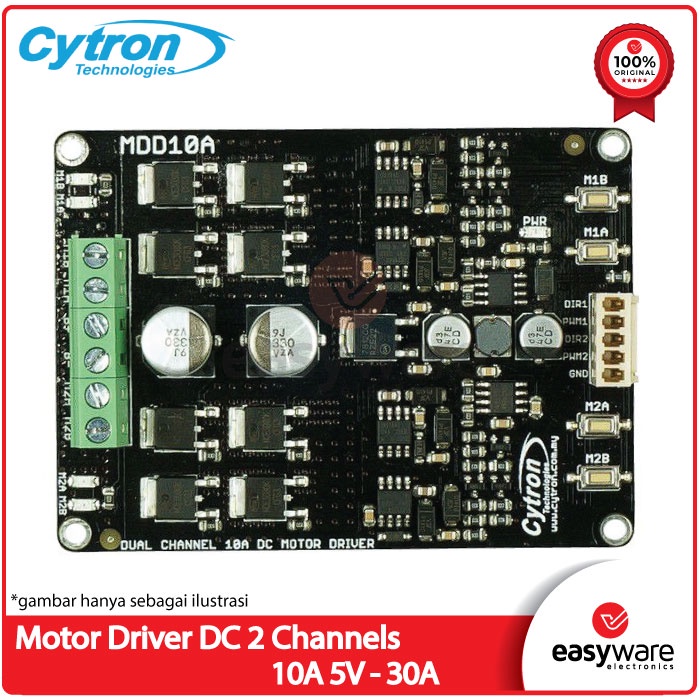

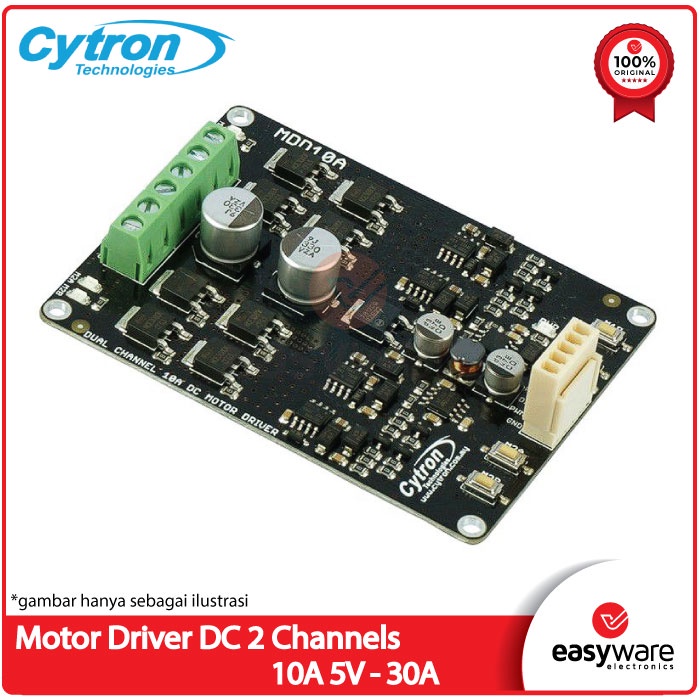

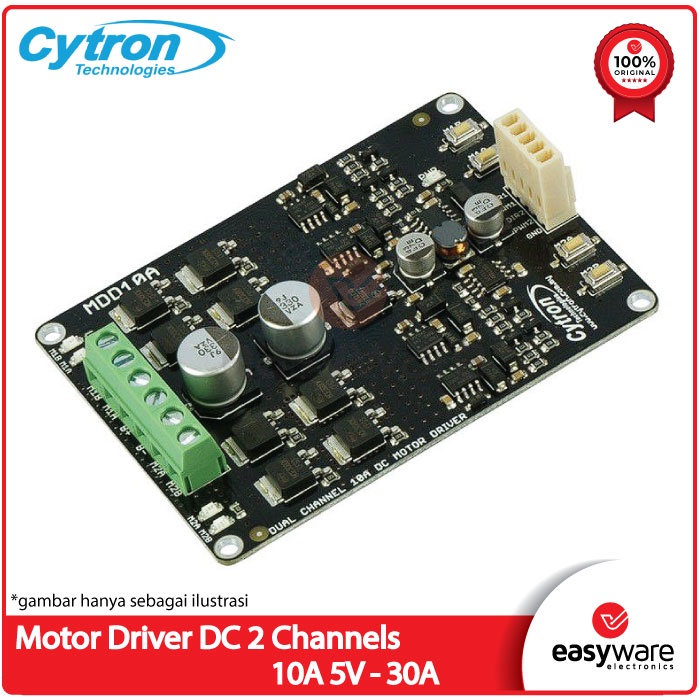

Gambar produk
