Detail Motor dinamo dc 775 dan bracket atau dudukan

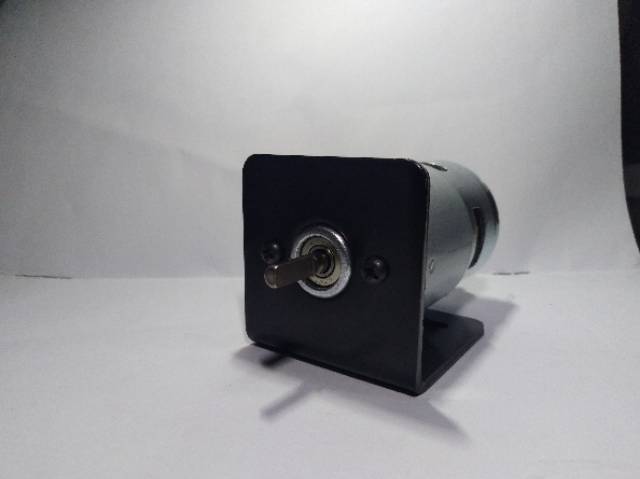

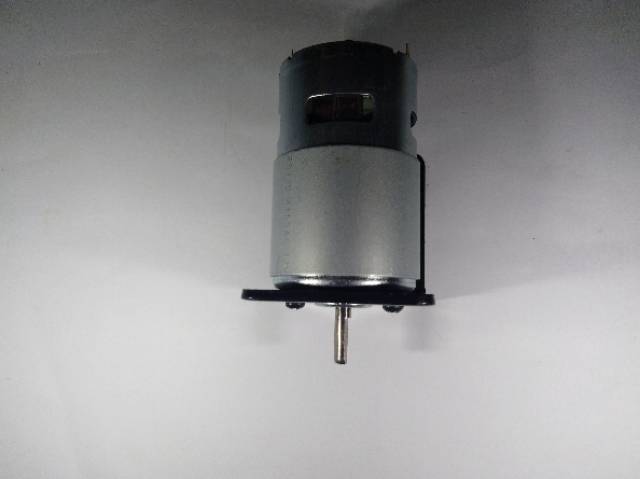

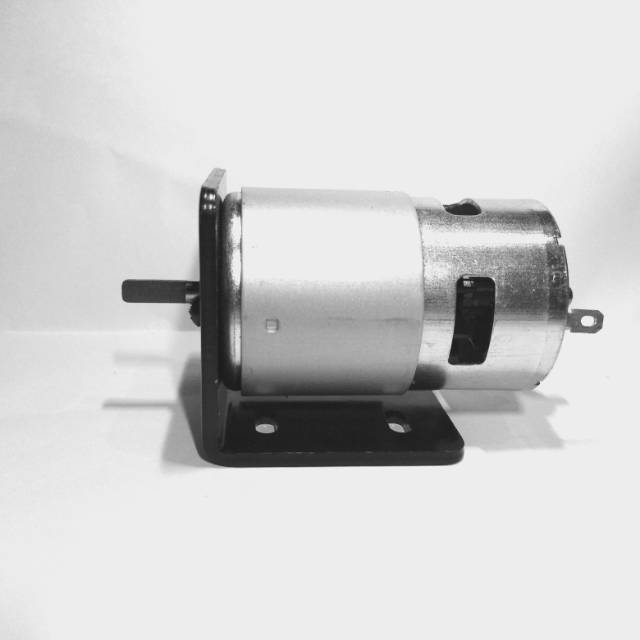

Dinamo 775 dan braket barang sesuai pict ya..Barang baru Harga termurah kualitas super.
Spesifikasi:
775 DC Motor Front Ball Bearing, Large Torque, High Power, Low Noise
Rated voltage:24 V
Current Rating:0.16 A
Rated Speed:7000 RPM
Different voltage parameters:
DC 12V, current 0.14A, speed 3500RPM
DC 18V, current 0.15A, speed 4500RPM
DC 24V, current 0.16A, speed 7000RPM
DC 30V, current 0.17A, speed 8100RPM
DC 36V, current 0.20A, speed 9000RPM
Shaft Diameter:5 mm/0.20 inch (Approx)
Shaft Length:17 mm/0.70 inch (Approx)
Body Length:66.7 mm/2.63 inch (Approx)
Front Steps Diameter:17.4 mm/0.69 inch (Approx)
Former High Level:4.7 mm/0.19 inch (Approx)
Body Diameter:42 mm/1.65 inch (Approx)
Motor Overall Length:98 mm/0.86 inch (Approx)
Diagonal Installation Pitch:28.8 mm/1.13 inch (Approx)
Mounting hole Size:M4
Mounting Hole:2
Cooling Fan:Yes
Color. Gold and silver(random)
Tipe. D
Silahkan di order sebelum kehabisan..
