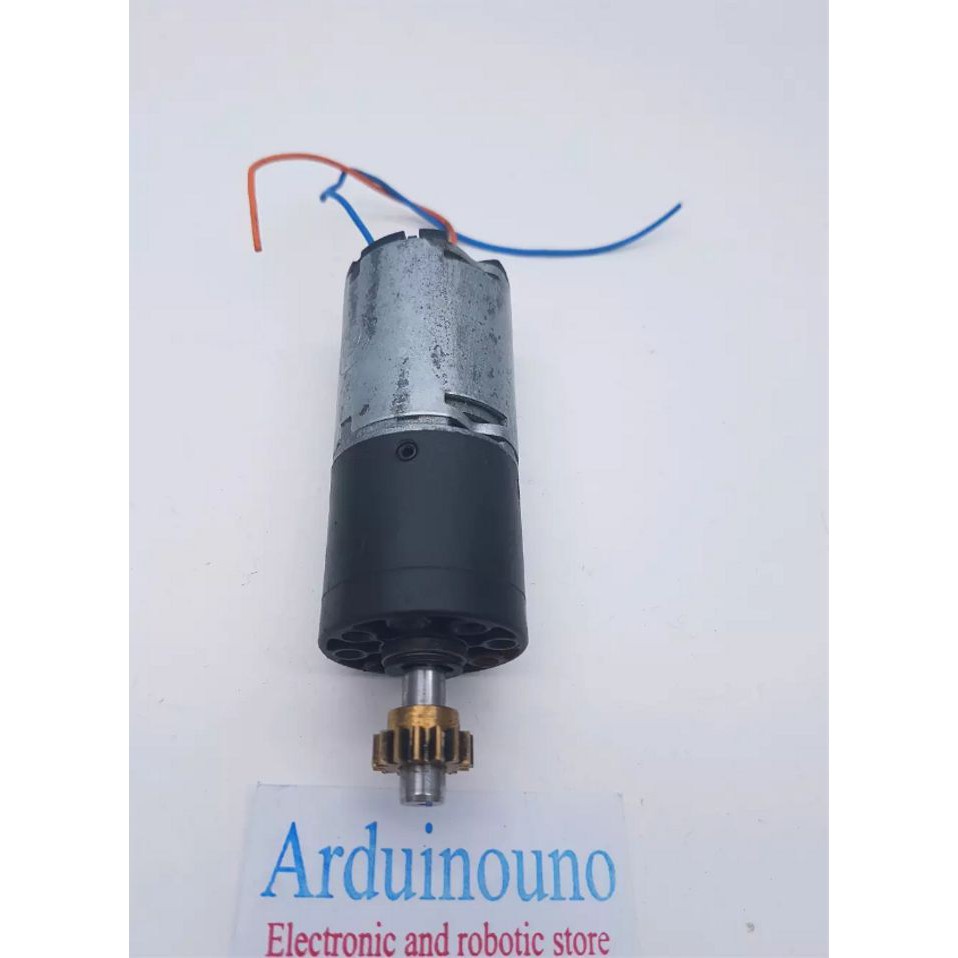

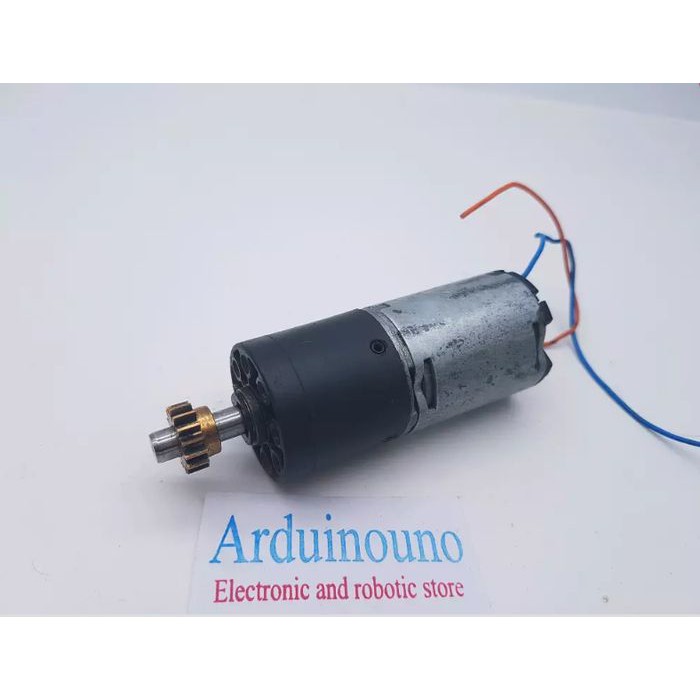

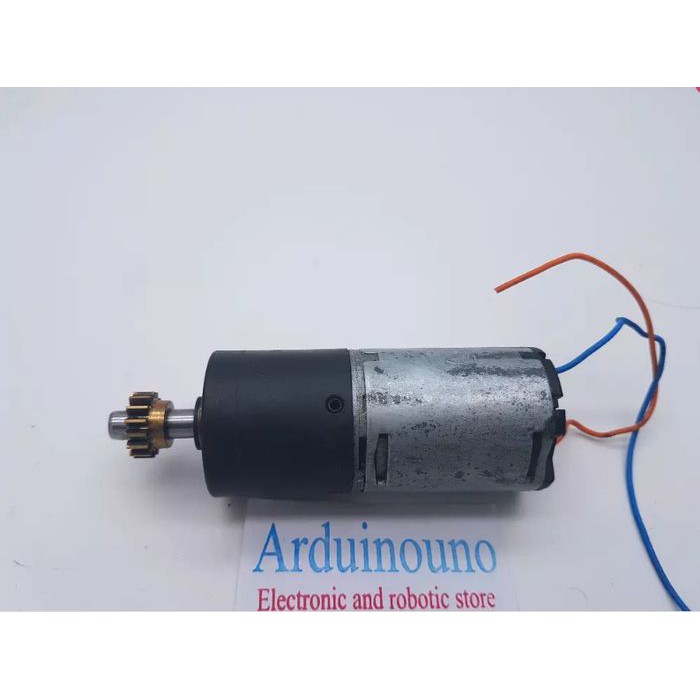

Detail Motor DC Planetary Gearbox 18V 700rpm Dunkermotoren PLG30 Germany Gear

High efficiency Ring gear and planetary gears made of specific, high grade material Planetary carriers and sun wheels made of steel Output shaft with dual sleeve bearings All stages have straight toothing Quiet operation due to helical gears in 1st stage

https://www•dunkermotoren•com/uploads/tx_produc...

Type PLG30.2
speed pada tegangan 12V-24V = 500rpm-1000rpm
12V 500rpm 80mAH
18V 700rpm 100mAH
diameter shaft 6mm
panjang shaft 16mm

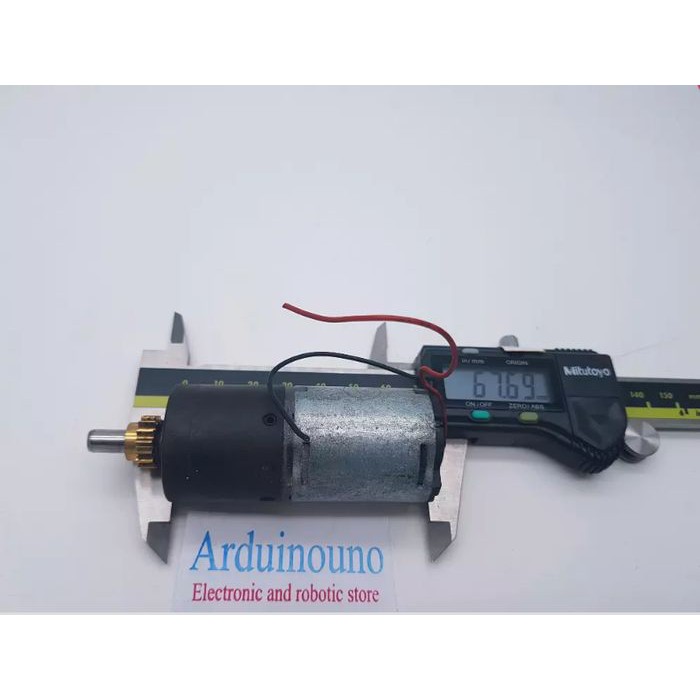

panjang gearbox dan motor 70mm

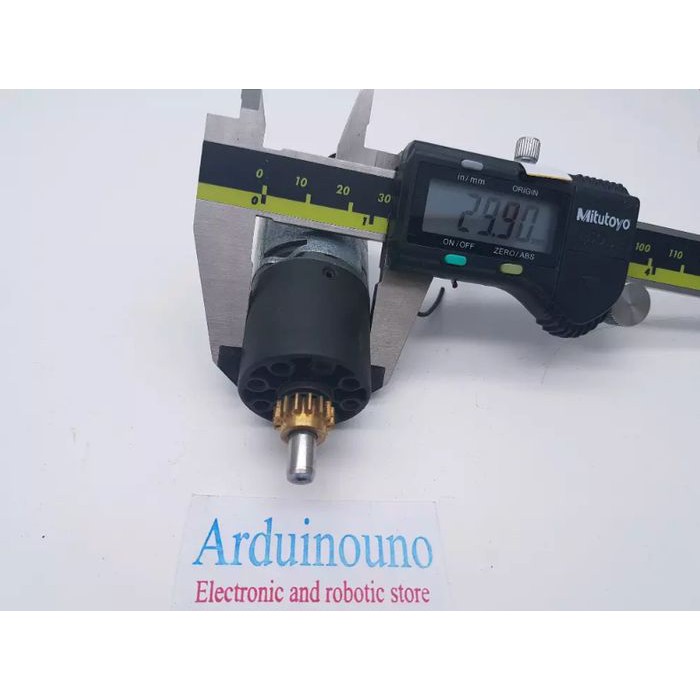

diameter motor 28mm
Output shaft speed DC12V-18V / 460-700rpm Dunkermotoren DC planetary gear motor
Perbandingan Gear 6,25 : 1
Arus 0,37A
Torque 40 N•cm
speed motor DC 2540 rpm
