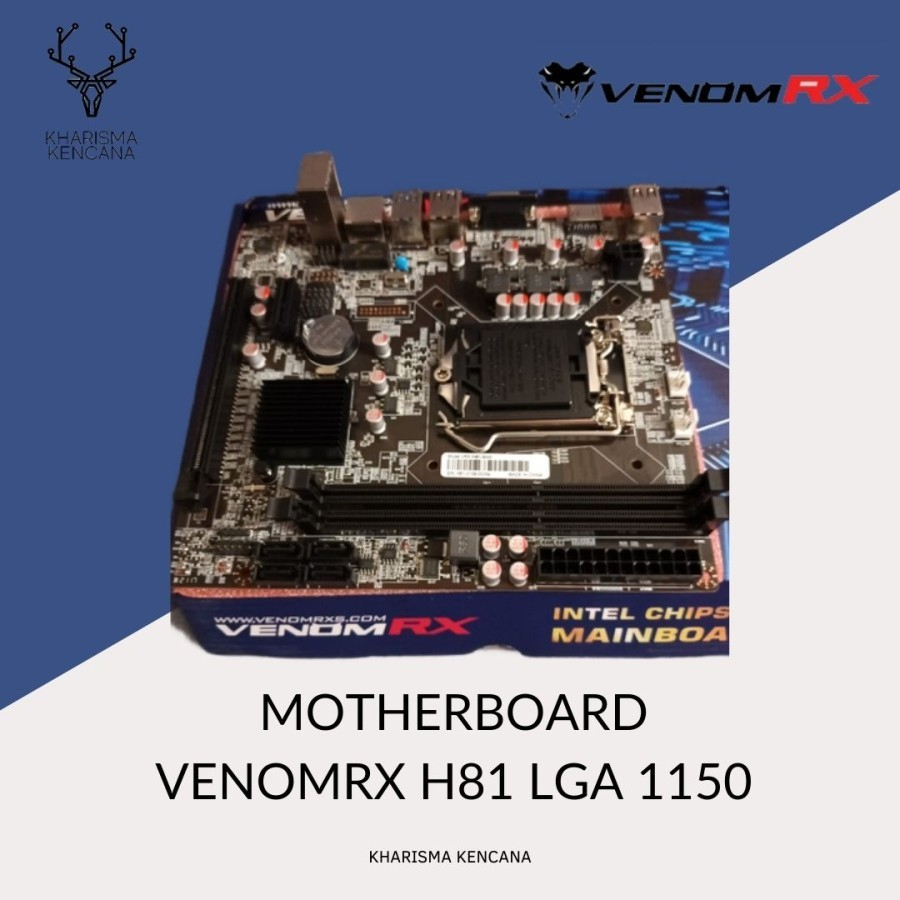

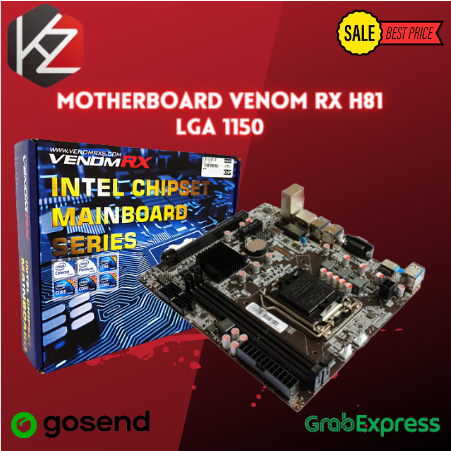

MOTHERBOARD VENOM RX H81 LGA 1150

Detail MOTHERBOARD VENOM RX H81 LGA 1150

Product Name : VENOMRX H-81 Intel Chipset

Processor
Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package.
Support Intel 4th generation multi-core processors
Chipset
Intel H81
On-Board graphics
Integrated Graphics Processor
Memory Support
Dual Channel DDR3 1333/1600MHz Memory, up to 16GB
Dimm
2 x Memory Slots (Max. up to 8GB each)
LAN
Realtek RTL8105E 100M / RTL8111E 1000 Mbps on board
Audio
Chip integrated by Realtek ALC662 on board, Supports 6-channel audio-out
Slot
1 x PCI Express x16 Slot
Storage
4 x SATA II port
Internal I/O Ports
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
1 x USB 2.0 connector support additional 2 USB 2.0 ports
1 x Front panel audio connector
1 x System Panel connector

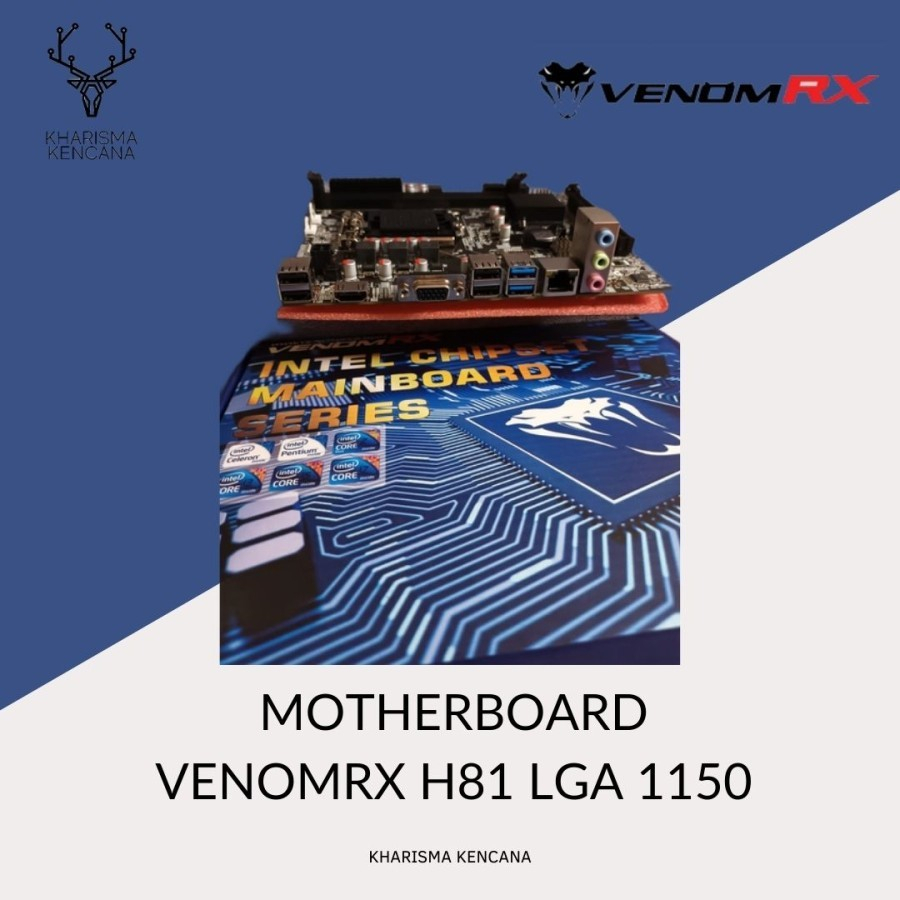

Back I/O Ports
1 x USB 2.0 keyboard port
1 x USB 2.0 mouse port
1 x VGA
1 x HDMI
2 x USB 2.0
2 x USB 3.0
1 x LAN jack
3 x Audio jack
BIOS
AMI BIOS
Form Factor
Micro ATX - 190*170 mm
Accessories
1 x Driver CD
1 x User Manual
1 x I/O Backboard
