motherboard Venom RX h61 1155 Support NVME

Detail motherboard Venom RX h61 1155 Support NVME

Motherboard Intel GEN2/3 Intel H61 VENOM-RX

CPU :
Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset :
Intel H61

Memori :
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel 3rd generation processors.
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

Grafis :
Integrated Graphics Processor
Dukungan output VGA : RGB port
- Mendukung RGB dengan resolusi maks. 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Slot Ekspansi :
1 x PCIe 3.0/2.0 x16 *1

Storage :
Intel H61(B3) chipset :
4 x SATA 3Gb/s port(s),

LAN
Realtek 8111F,
Realtek ALC887 8-Channel High Definition Audio CODEC *2

Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )

Product Name : VenomRX Intel H61 (LGA1155, Intel H61, DDR3)
Brand : VenomRX
Model : Intel H61
CPU Type : i7/i5/i3 Processor socket 1155
Chipset : Intel H61
Memory Standard : 2x DDR3 DIMM, 1333/1066/1600 MHz
Maximum Memory Supported : 8GB Dual Channel
Expansion Slots : 1x PCI-e
SATA Port : 4x SATA
M.2 : NVMe
Onboard Video Chipset : Integrated Graphics Processor
Multi-GPU support :
Audio Chipset : Realtek ALC662
LAN Chipset : Yes
Rear Panel Ports : 6x USB, RJ45, HDMI, D-sub, Audio Jack
Form Factor : Micro ATX
Warranty : 1 Year

kondisi baru garansi resmi Venom RX 1 tahun
packing bubble + dus

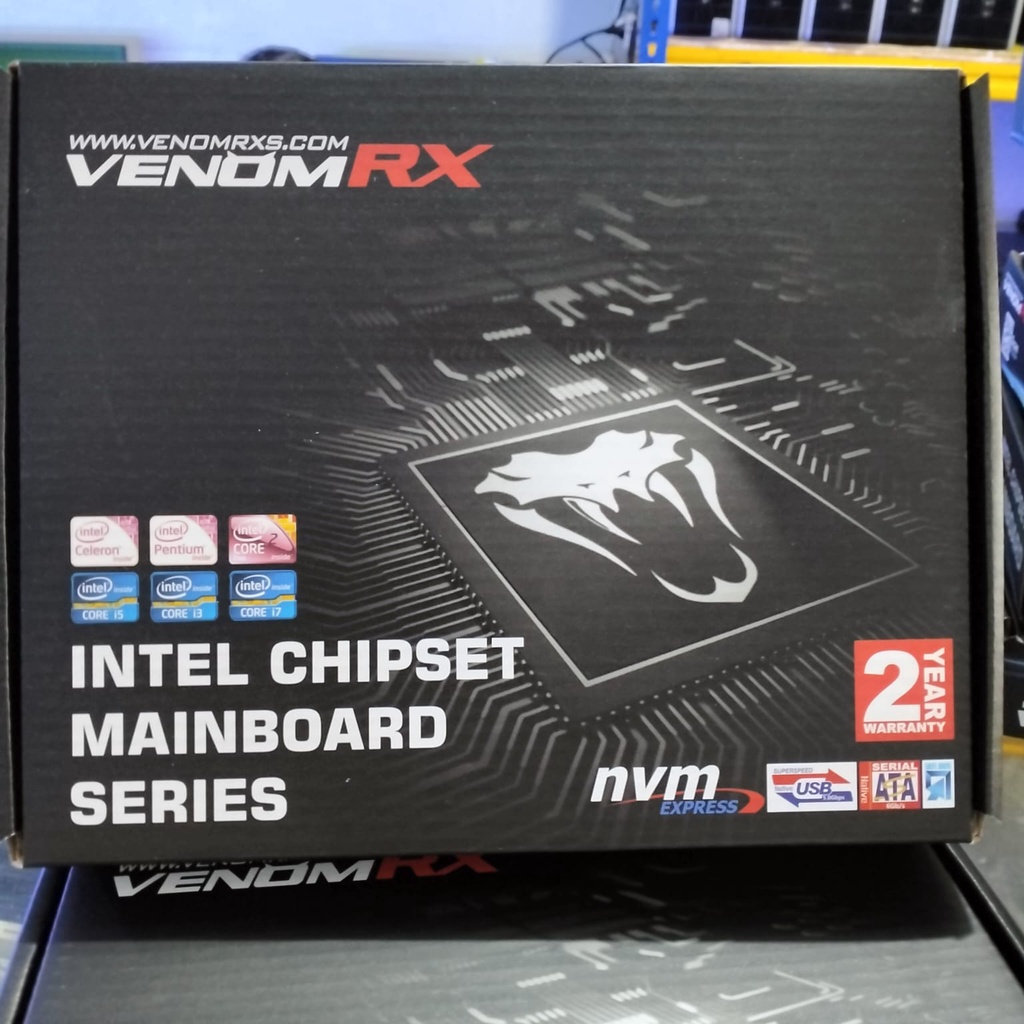

Gambar produk
