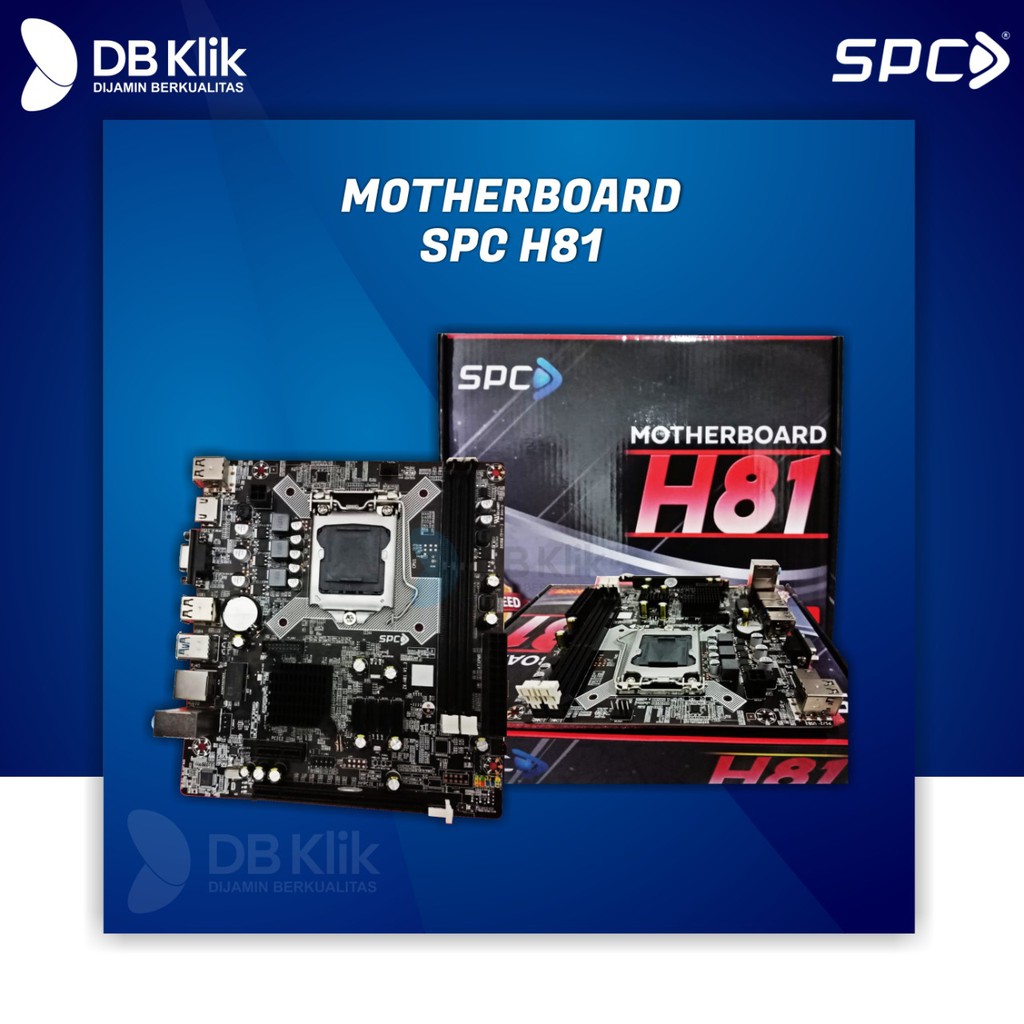

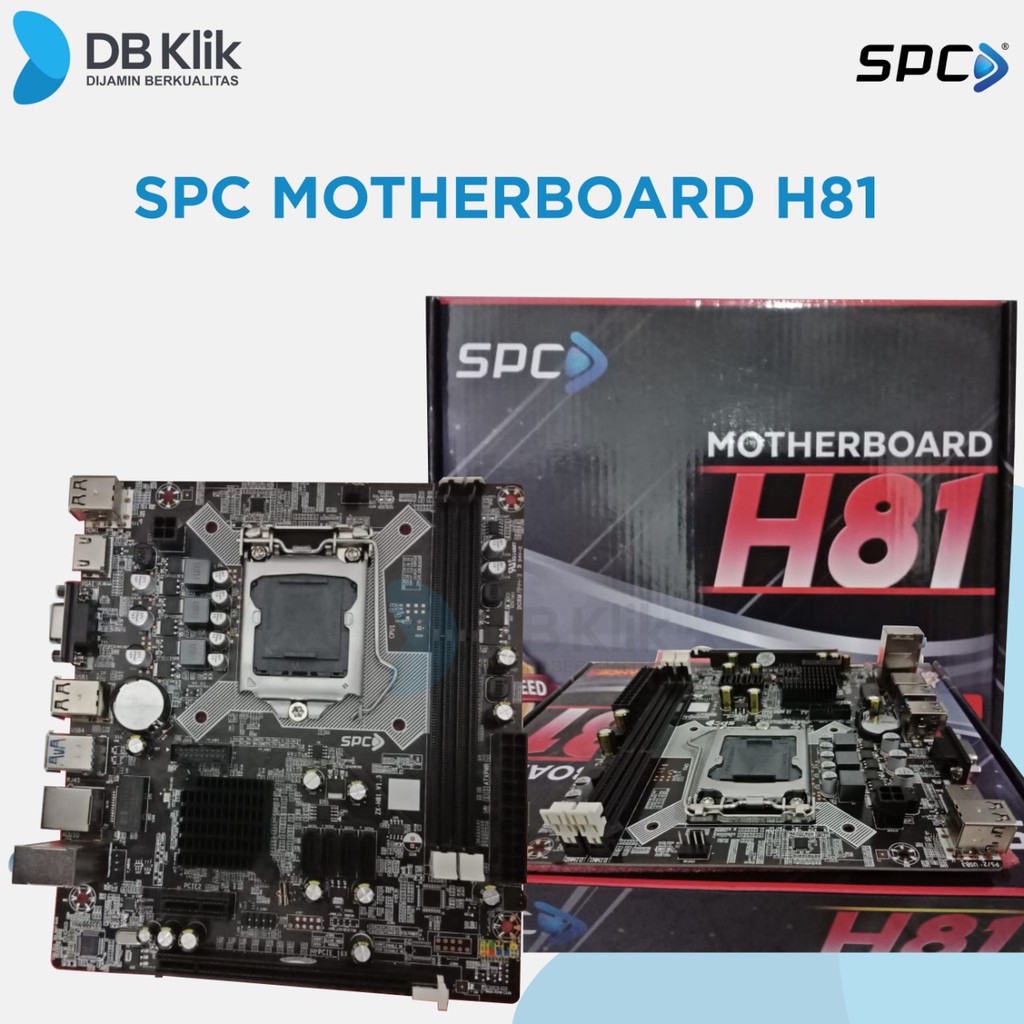

Motherboard SPC H81

MEMORY
Dual-channelDDR3 Memory architecture
Supports DDR3 1600/1333 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT
1 X PCI Express X16 Gen 2.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)

STORAGE
Support by H81 Express Chipset
2 X Serial ATAIII 6Gb/s
2 X Serial ATAII 3Gb/s

AUDIO
6-Channel HD audio CODEC
( Colay VIA VT1705 or Realtek ALC662 6-Channel HD audio)

LAN
Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN

USB
Support by H81 Express Chipset
2 X USB3.0 port(s) up to 5Gb/s
6 X USB2.0 port(s) Up to 480 Mb/s

REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s) (optional)
1 X D-Sub (VGA) port(s)
2 X USB3.0 port(s)
2 X USB2.0 port(s)

CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 3-pin SYS_FAN connector
1 X Speaker header
2 X USB 2.0 header
2 X SATA III 6Gb/s connector(s)
2 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
