Motherboard Spc H81 DDR3

Detail Motherboard Spc H81 DDR3

Bisa langsung pesan order di shopee Ya Gan
kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

setiap Konsumen yang membeli produk ditoko kami
apabila ada garansi, klaim garansi bisa dibantu lewat toko juga
apabila daerah agan tidak ada service center/distributornya

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

spesifikasi :
MEMORY
Dual-channelDDR3 Memory architecture
Supports DDR3 1600/1333 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT
1 X PCI Express X16 Gen 2.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)

STORAGE
Support by H81 Express Chipset
2 X Serial ATAIII 6Gb/s
2 X Serial ATAII 3Gb/s

AUDIO
6-Channel HD audio CODEC
( Colay VIA VT1705 or Realtek ALC662 6-Channel HD audio)

LAN
Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN

USB
Support by H81 Express Chipset
2 X USB3.0 port(s) up to 5Gb/s
6 X USB2.0 port(s) Up to 480 Mb/s

REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s) (optional)
1 X D-Sub (VGA) port(s)
2 X USB3.0 port(s)
2 X USB2.0 port(s)

CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 3-pin SYS_FAN connector
1 X Speaker header
2 X USB 2.0 header
2 X SATA III 6Gb/s connector(s)
2 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)

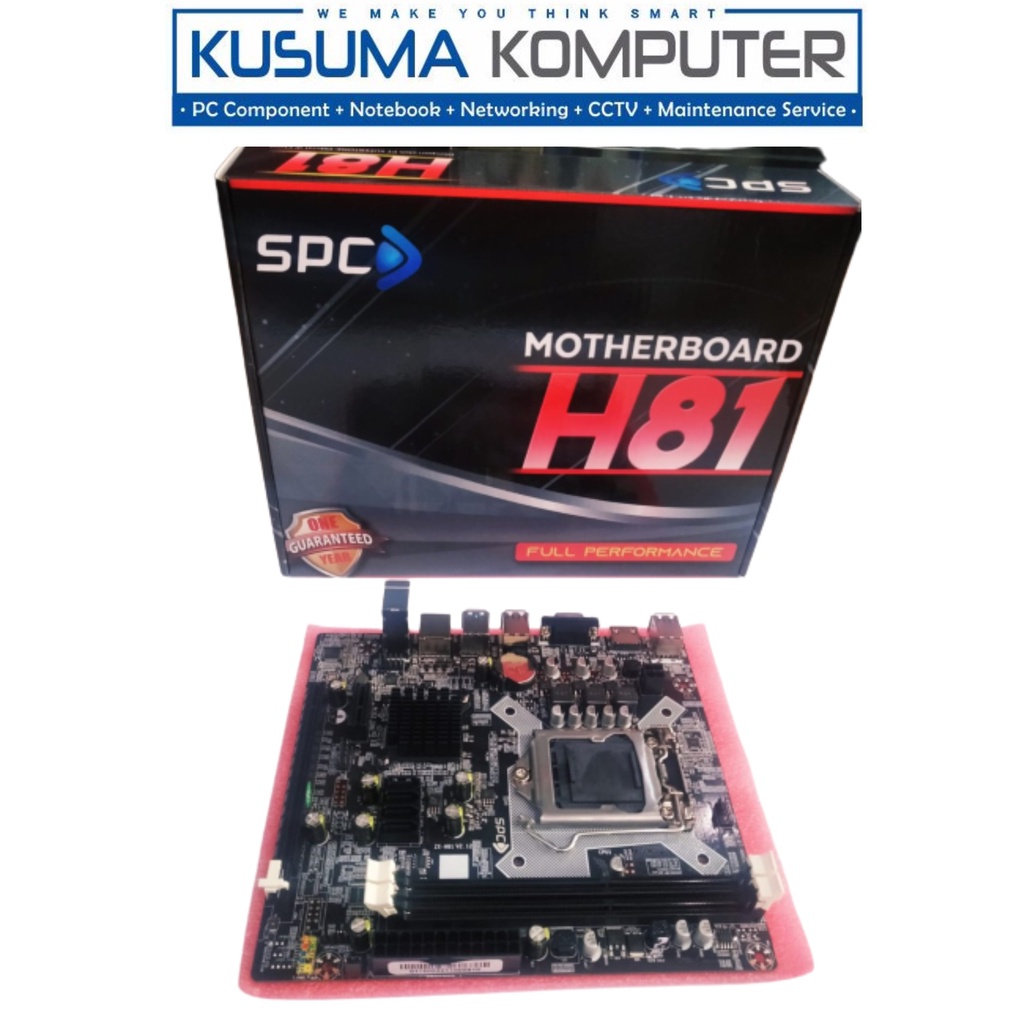

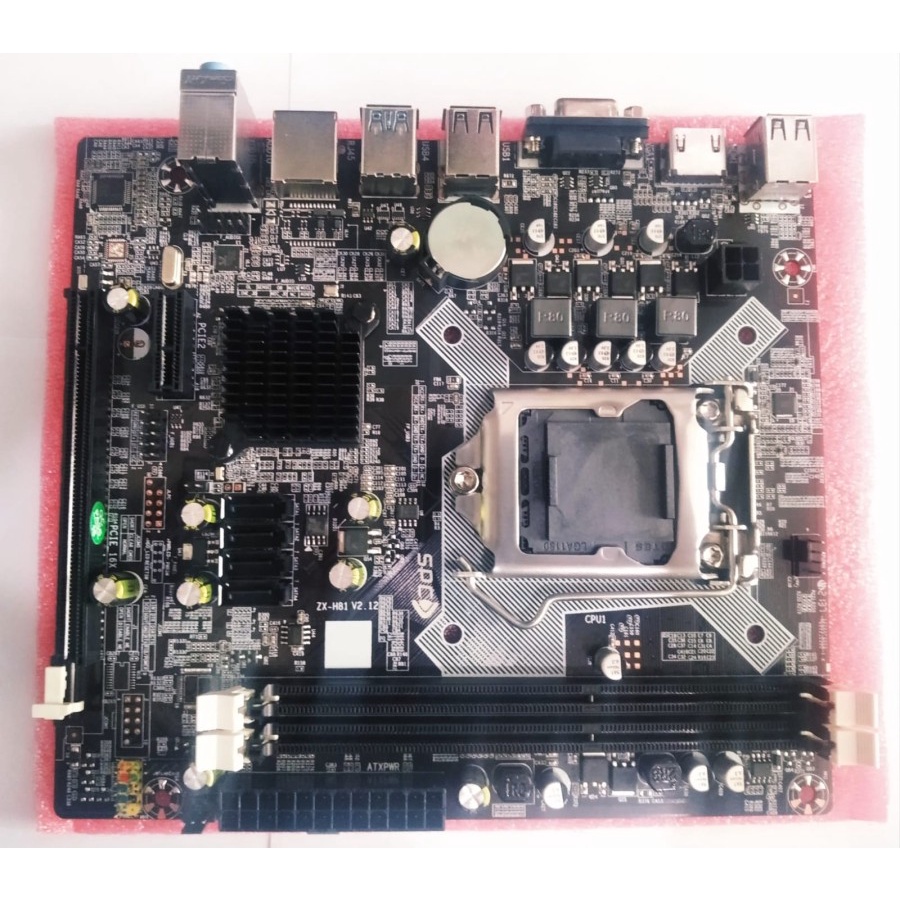

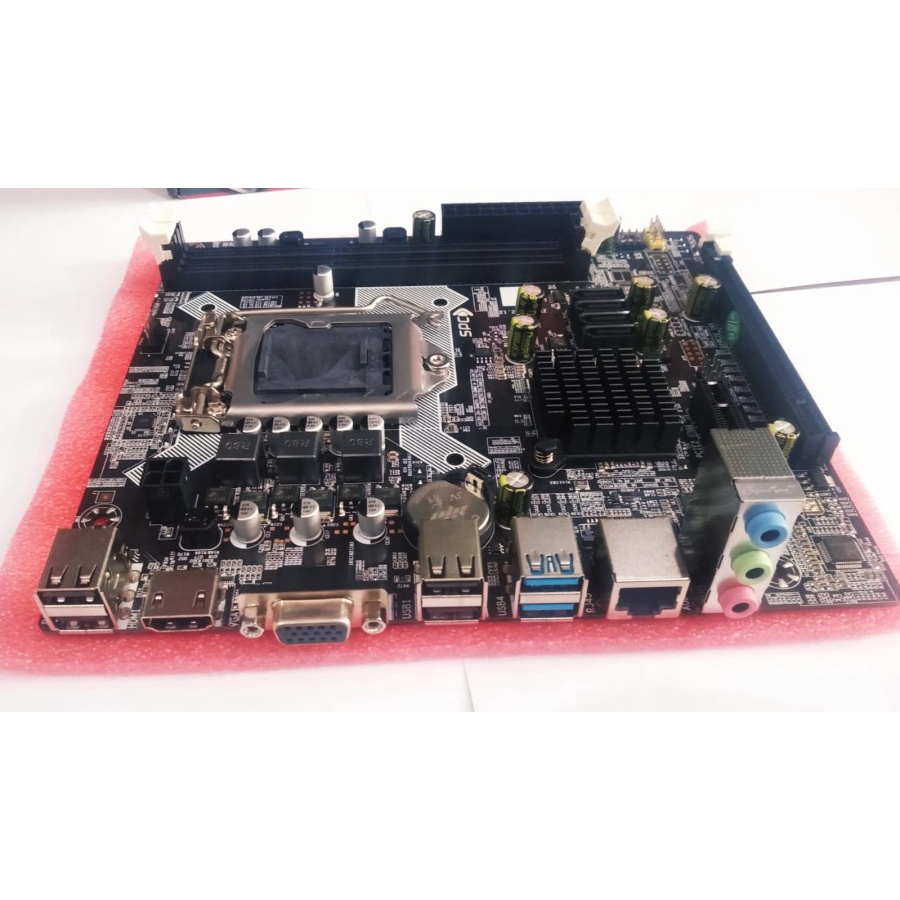

Gambar produk
