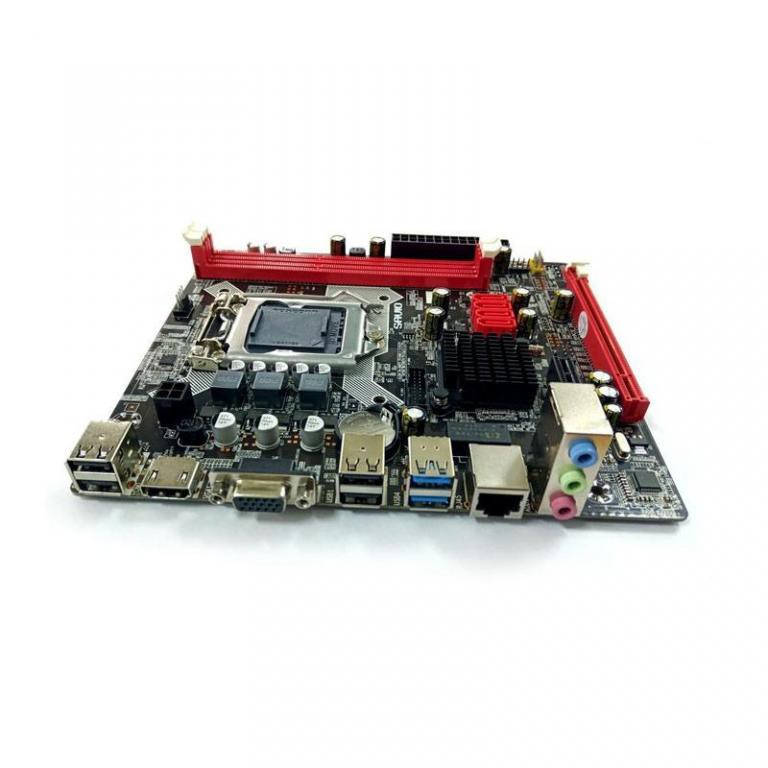

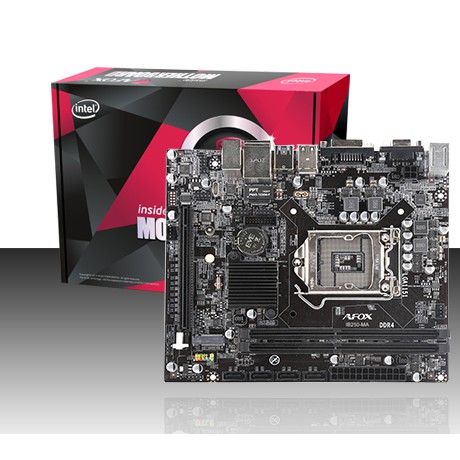

MOTHERBOARD SAVIO-CHIPSET INTEL AFOX B250 Socket 1151

Detail MOTHERBOARD SAVIO-CHIPSET INTEL AFOX B250 Socket 1151

MOTHERBOARD INTEL SAVIO AFOX B250Processor : Support Core™ i7 / Core™ i5 / Core™ i3 Processors
Chipset :Intel® B250
On-Board graphics : Integrated Graphics Processor
Memory : Support Dual Channel DDR4 2133/2400MHz Memory, up to 32GB
Dimm :2 x Memory Slots (Max. up to 16GB each)
LAN : Realtek RTL8105E 10/100Mbps Ethernet on board
Audio : Realtek ALC662 integrated on board
Slot : 1 x PCI Express x16 Slot
SATA : 4 x SATA port
ON-Board : Pinheaders / Connectors 1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB 2.0 pinheader supports additional 2 USB 2.0 ports
1 x USB 3.0 pinheader supports additional 2 USB 3.0 ports
1 x Front panel audio connector

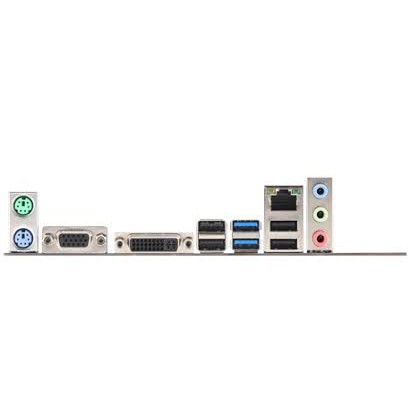

Back I/O Ports : 1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x VGA
1 x DVI
4 x USB 2.0
2 x USB 3.0
1 x LAN jack
3 x Audio jack
BIOS : UEFI BIOS
Form Factor :Micro ATX - 197 x 170 cm mm
Accessories : 1 x Driver CD
1 x User Manua
