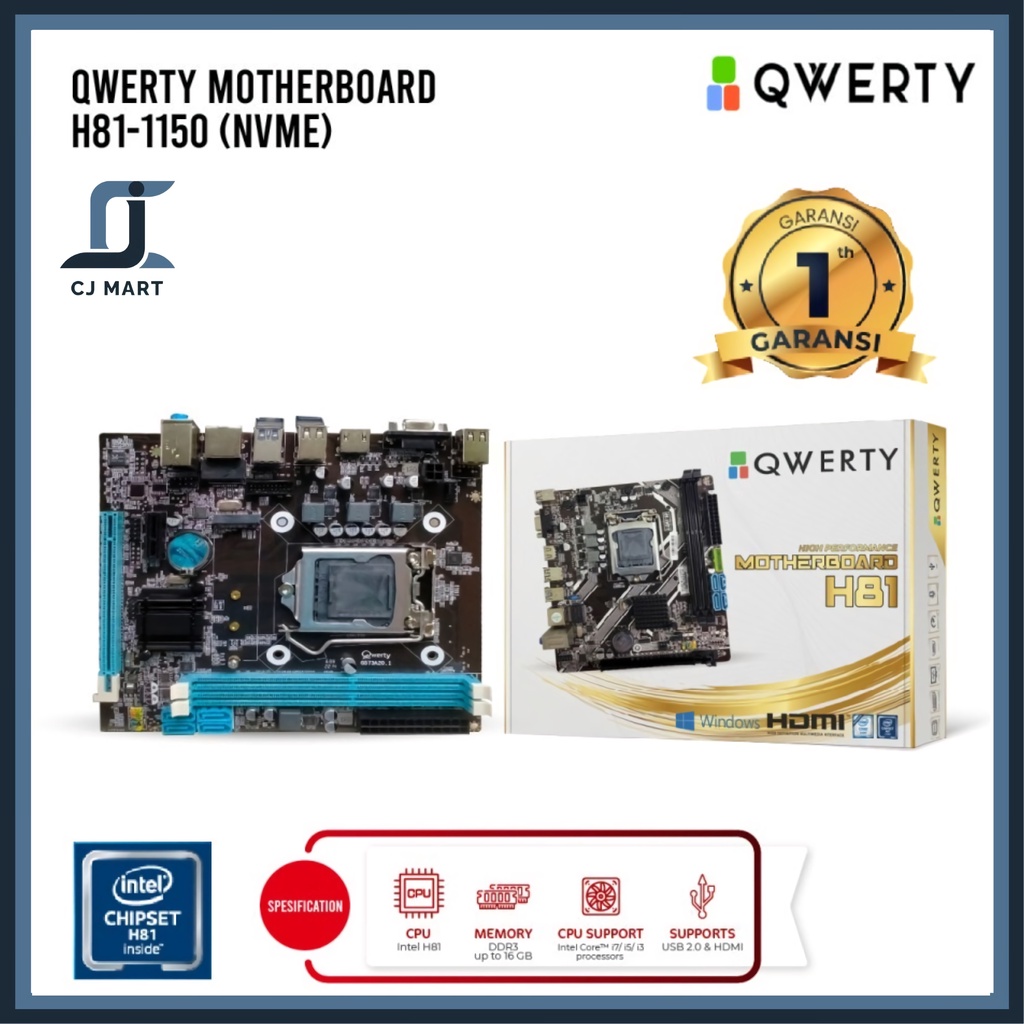

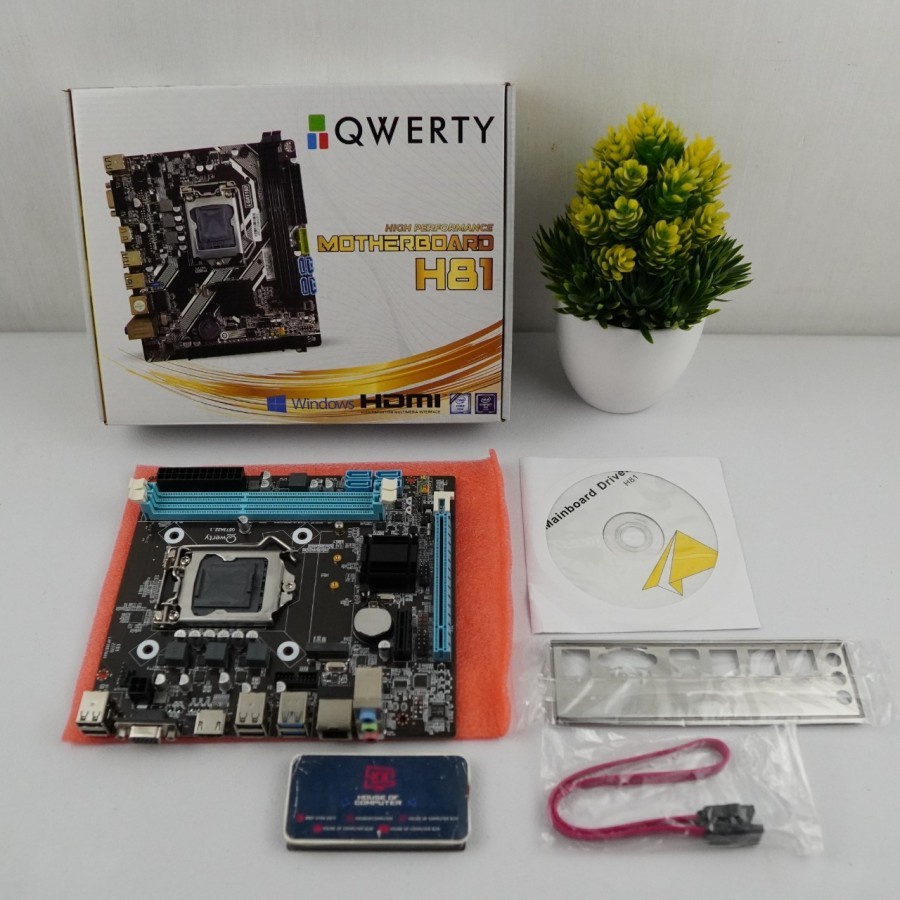

Motherboard Qwerty H81 Slot NVMe NGFF 2280 Intel Socket LGA 1150 DDR 3

Detail Motherboard Qwerty H81 Slot NVMe NGFF 2280 Intel Socket LGA 1150 DDR 3

𝗽𝗲𝗸𝘀𝗶𝗳𝗶𝗸𝗮𝘀𝗶:

1. CPU Support 4rd Gen (Haswell)
2. Chipset Intel H81 Express Chipset
3. Memory 2*240-pin DDR3 SDRAM Slots
Memory up to 16GB Supports dual channel DDR3 1066/1333/1600/1866MHz

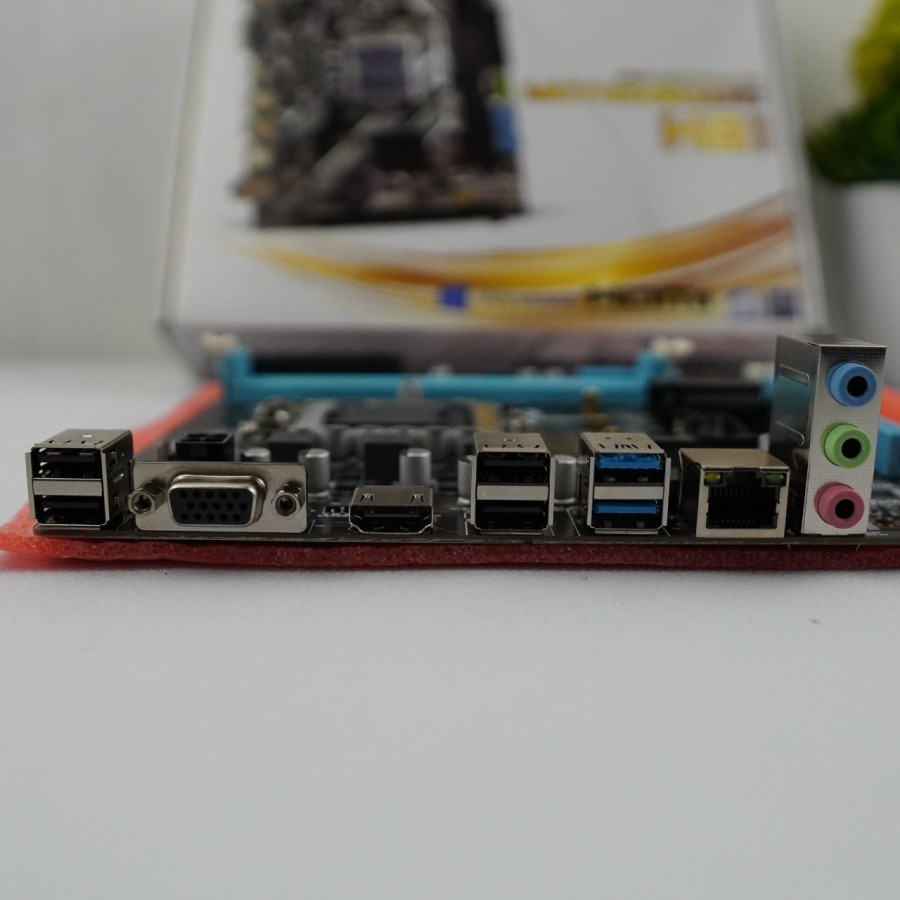

4. I/O Interface
4 x USB, compatible with USB 2.0
2 x USB, compatible with USB 3.0
1 x VGA port
1 x HDMI port
1 x RJ-45 port
1 x 3-in-1 Audio port (line In/Line Out/Mic In)

5. On Board Interface
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB 2.0 connector, can support 2*USB 2.0
1 x USB 3.0 connector
1 x F_Audio connector
1 x F_Panel connector
1 x Speaker connector
1 x Fan connector
2 x serial SATA/6GB/S connector port
2 x serial SATA/3GB/S connector port
1 x LPC_Debug connector

6.Integrated LAN With 10/100Mbps LAN onboard

7. Expansion Slot
1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x NVME M2 connector

add information:

chipset Intel H81
form factor Micro ATX
Socket ,LGA 1150
audio 6-channel On Board code
Storage 2 SATA 3 GB/s – 2 SATA 6 GB/s
RAM memory Supports 2 Dual Channel DDR3 up to 16GB at 1066, 1333, 1600 or 1866MHz

Features
Supports 4th Gen Intel i3, i5 and i7 processors
Expansion Slot 1 PCI Express x 16 – 2 PCI Express x 1
Interface 2 USB 2.0 – 2 USB 3.0 – VGA – HDMI – RJ45 – Audio Port (Line IN, Line Out and MIC IN) – PS/2
