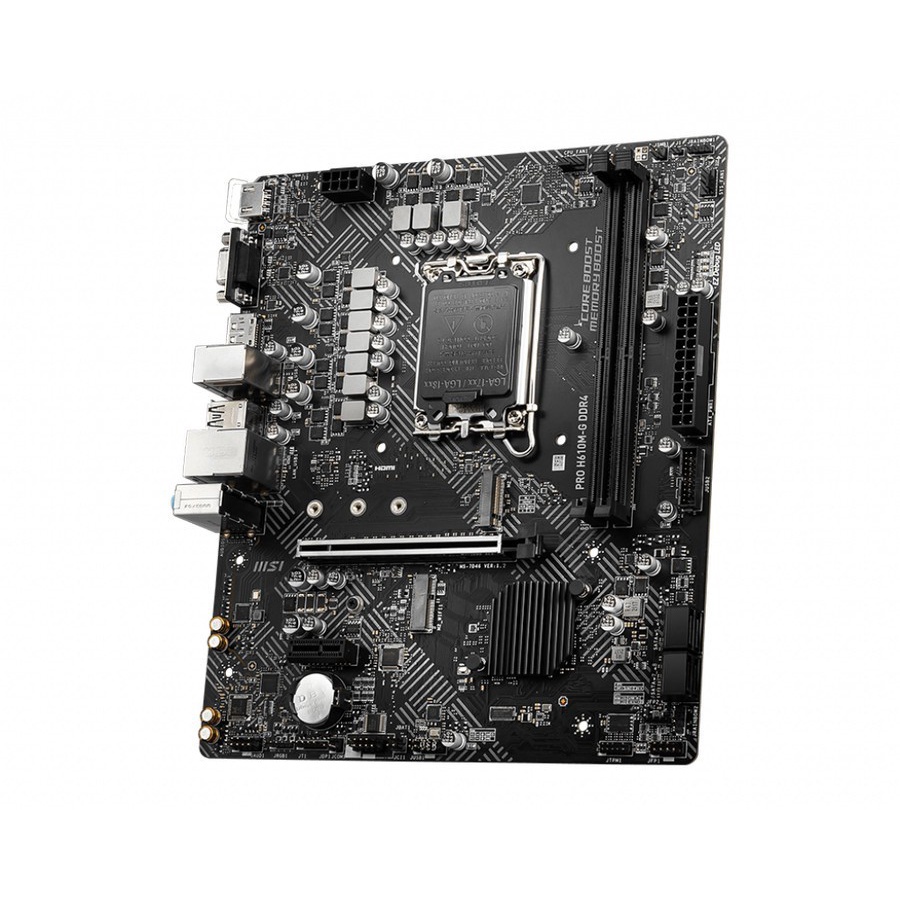

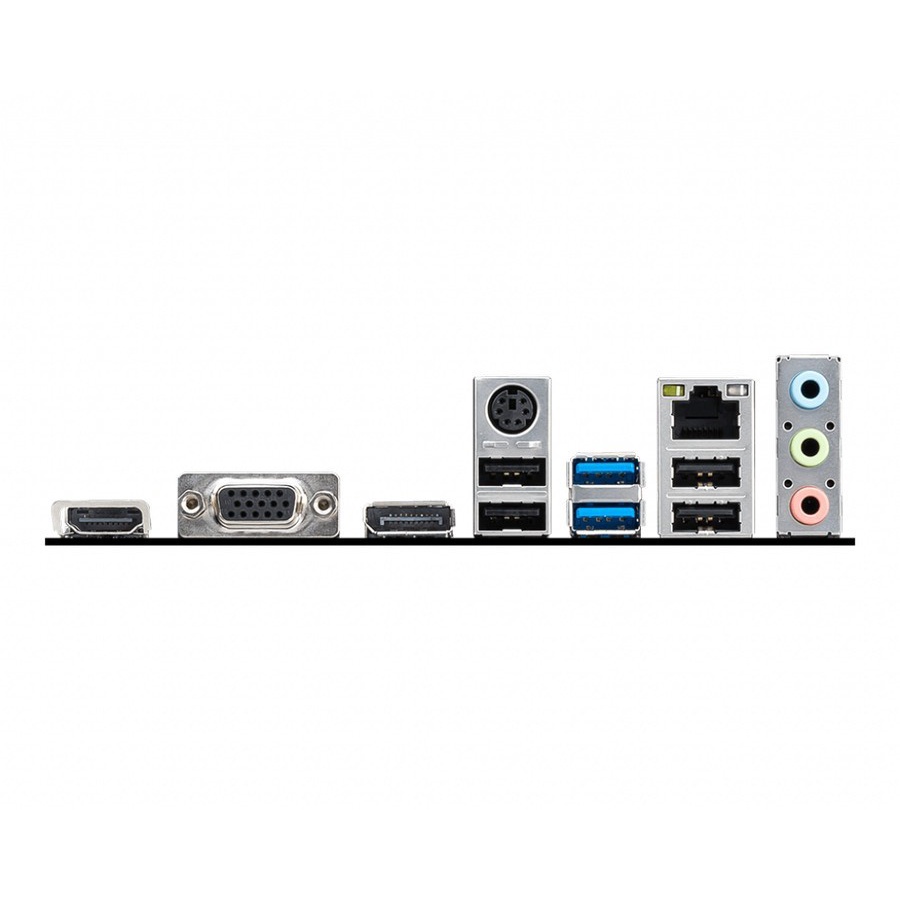

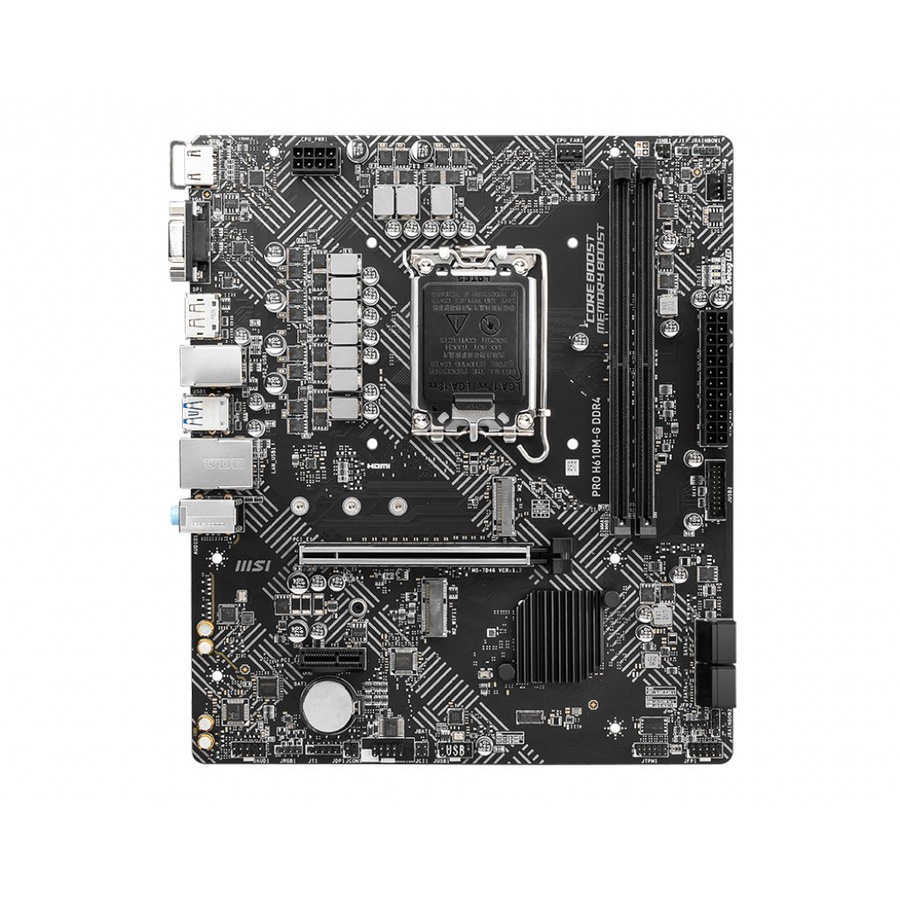

Motherboard MSI PRO H610M G LGA 1700 H610 DDR4 USB 3.2 SATA3

Merek: MSI | Lihat selengkapnya produk Komputer & Aksesoris dari MSI
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Motherboard MSI PRO H610M G LGA 1700 H610 DDR4 USB 3.2 SATA3
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Motherboard MSI PRO H610M G LGA 1700 H610 DDR4 USB 3.2 SATA3

Spesifikasi :

• PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1700
• CHIPSET : Intel® H610 Chipset

MEMORY
• 2x DDR4 memory slots, support up to 64GB1
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

EXPANSION SLOT
• 1x PCIe x16 slot (From CPU)
• Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
• Supports PCIe 3.0 x1
• 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

ONBOARD GRAPHICS
• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz1
• x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

SATA PORTS
• 4x SATA 6Gb/s ports

M.2 SSD SLOT
• 1x M.2 slot (Key M, from chipset)
• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Supports Intel® Smart Response Technology for Intel Core™ processors

USB
Intel® H610 Chipset
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

LAN
• 1x Intel® I219V 1Gbps LAN controller

POWER CONNECTORS
• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

FAN CONNECTORS
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

SYSTEM CONNECTORS
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector

LED FEATURES :
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

DIMENSIONS :
• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

• OPERATING SYSTEM : Support for Windows® 11 64-bit

Garansi Resmi 3 Tahun
